Suzuki GSF1250 - Fuel Pump Components

Fuel System: 1G-10

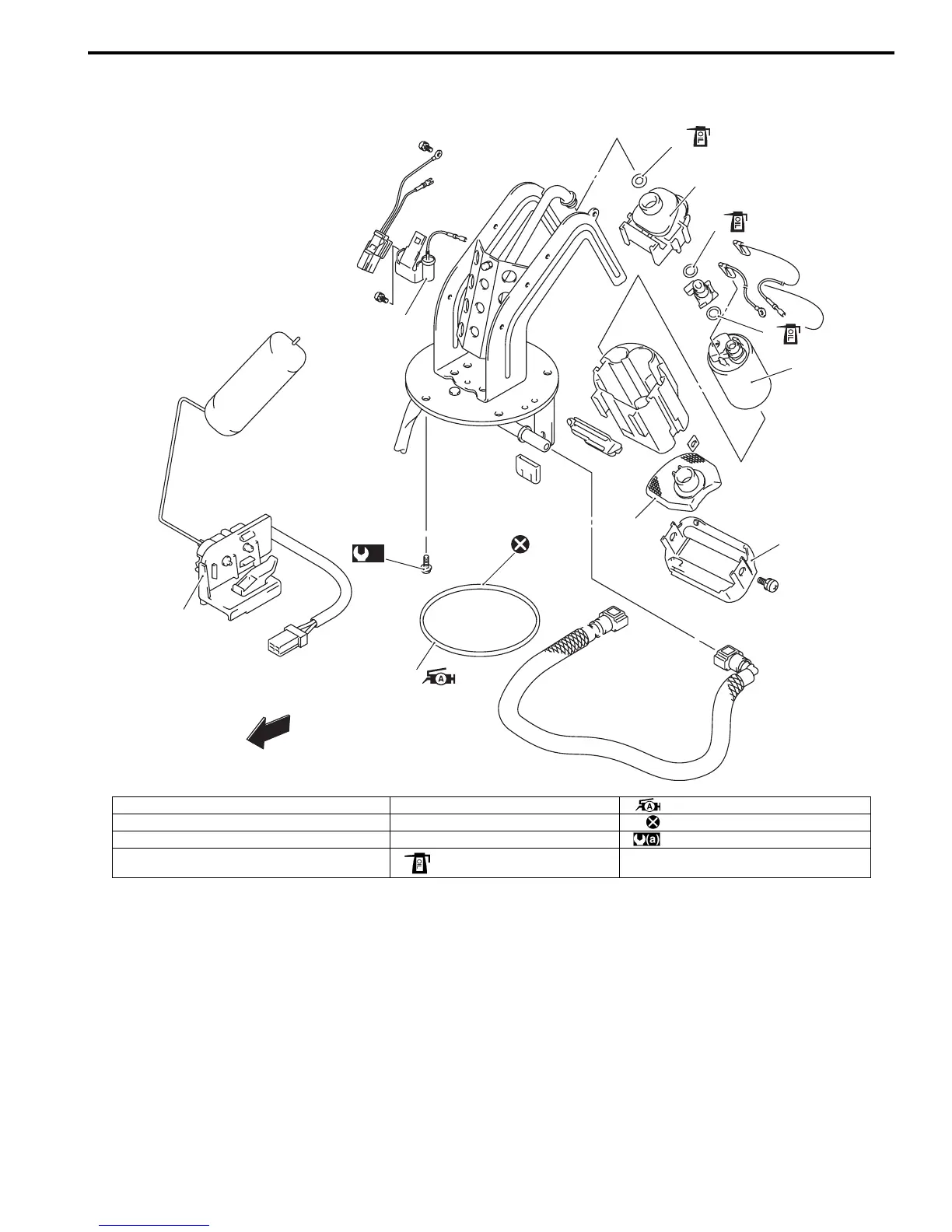

Fuel Pump Components
B718H11706033
1
2
3
5
6
7
7
7
(a)
7
FWD
FWD
4
I718H1170002-03
1. Vessel 5. Thermistor : Apply grease.
2. Fuel mesh filter 6. Fuel level gauge : Do not reuse.
3. Fuel pump 7. O-ring : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
4. Fuel pressure regulator assembly : Apply engine oil.
