Suzuki GSF1250 - Clutch Components

Clutch: 5C-12

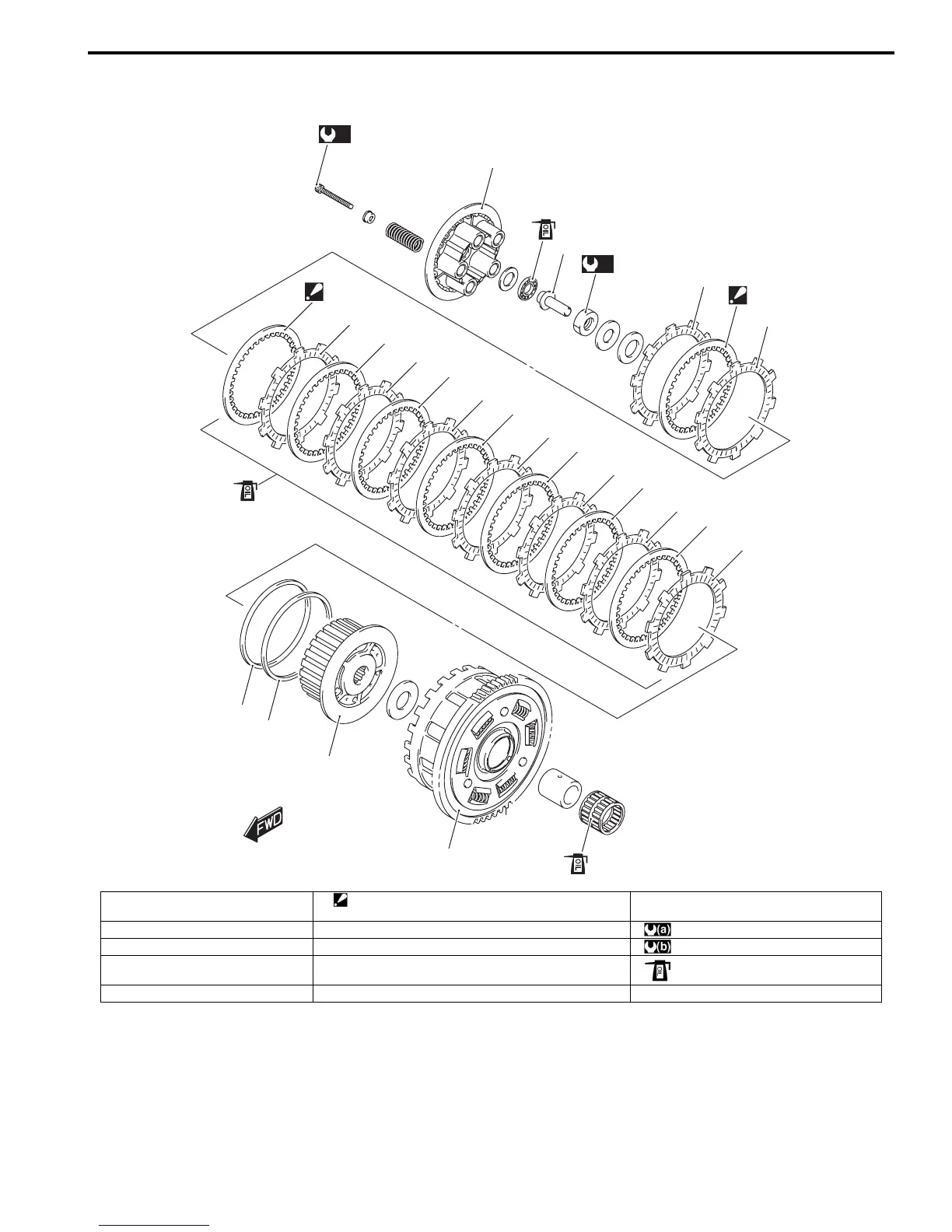

Clutch Components
B718H15306014
7
7
7
7
7
7
4
4
4
4
4
4
5
6 / 7
(b)
1
2
(a)
3
4
6 / 7
8
9
10
11
I718H1530067-03
1. Clutch pressure plate 6. No.1 driven plate (0 – 2 pcs)
: The No.1 and No.2 driven plates are 8 in total.
11. Primary driven gear assembly
2. Clutch push piece 7. No.2 driven plate (6 – 8 pcs) : 150 N⋅m (15.0 kgf-m, 108.5 lb-ft)
3. No.3 drive plate 8. Spring washer : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
4. No.1 drive plate 9. Spring washer seat : Apply engine oil.
5. No.2 drive plate 10. Clutch sleeve hub
