Suzuki GSF1250 - Rear Suspension; Repair Instructions; Rear Suspension Components

Rear Suspension: 2C-1
Suspension
Rear Suspension
Repair Instructions

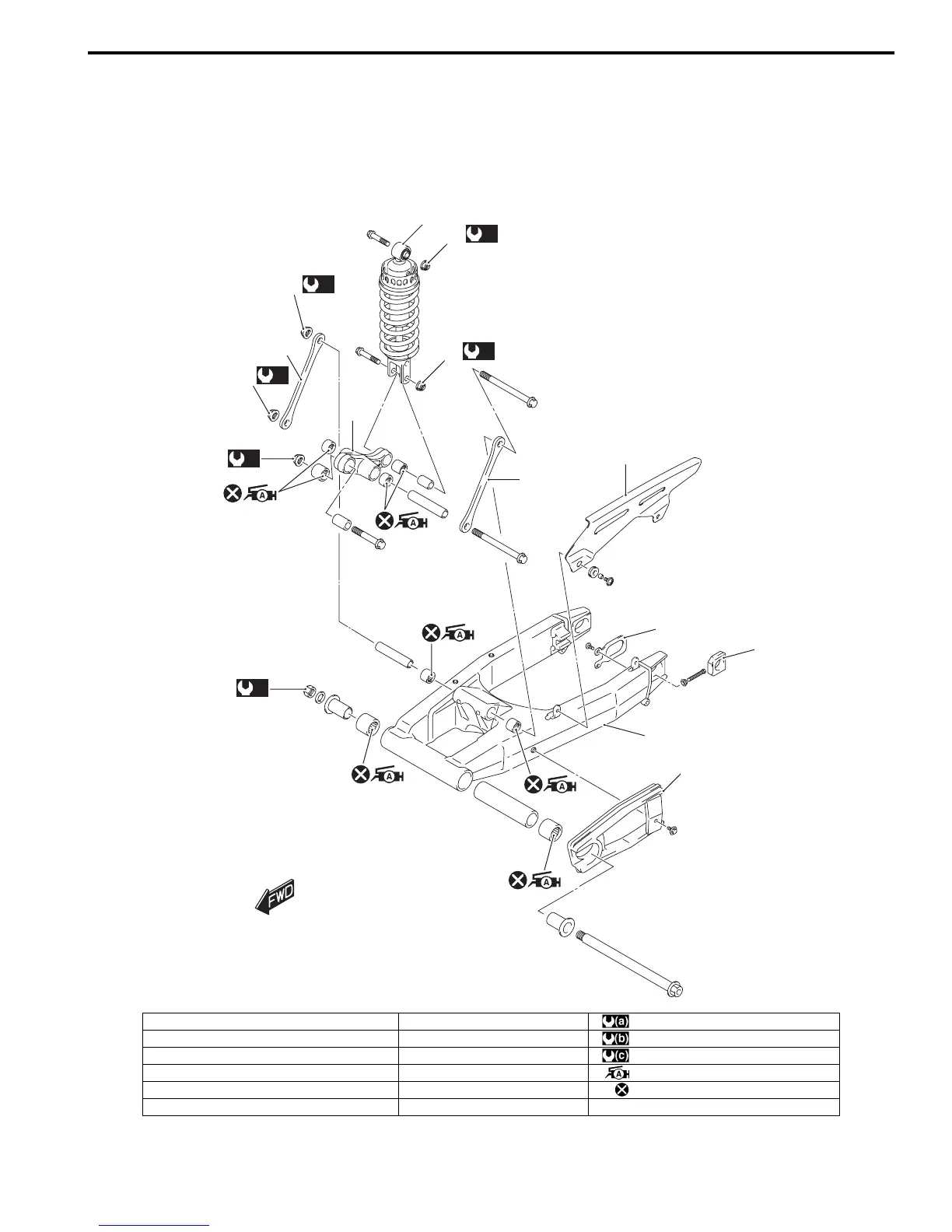

Rear Suspension Components
B718H12306001
1
(a)
2
3
(b)
6
3
(b)
6
(b)
5
4
7
9
10
11
(a)
2
8
(c)
12
I718H1230001-01
1. Rear shock absorber 7. Chain case : 50 N⋅m (5.0 kgf-m, 36.0 lb-ft)
2. Rear shock absorber mounting nut 8. Swingarm : 78 N⋅m (7.8 kgf-m, 56.5 lb-ft)
3. Cushion rod 9. Plate : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
4. Cushion lever 10. Chain adjuster : Apply grease to the bearing.
5. Cushion lever mounting nut 11. Chain buffer : Do not reuse.
6. Cushion rod mounting nut 12. Swingarm pivot nut
