1G-7 Fuel System:
Fuel Pump Relay Inspection
B718H11706029
Refer to “Electrical Components Location in Section 0A
(Page 0A-8)”.

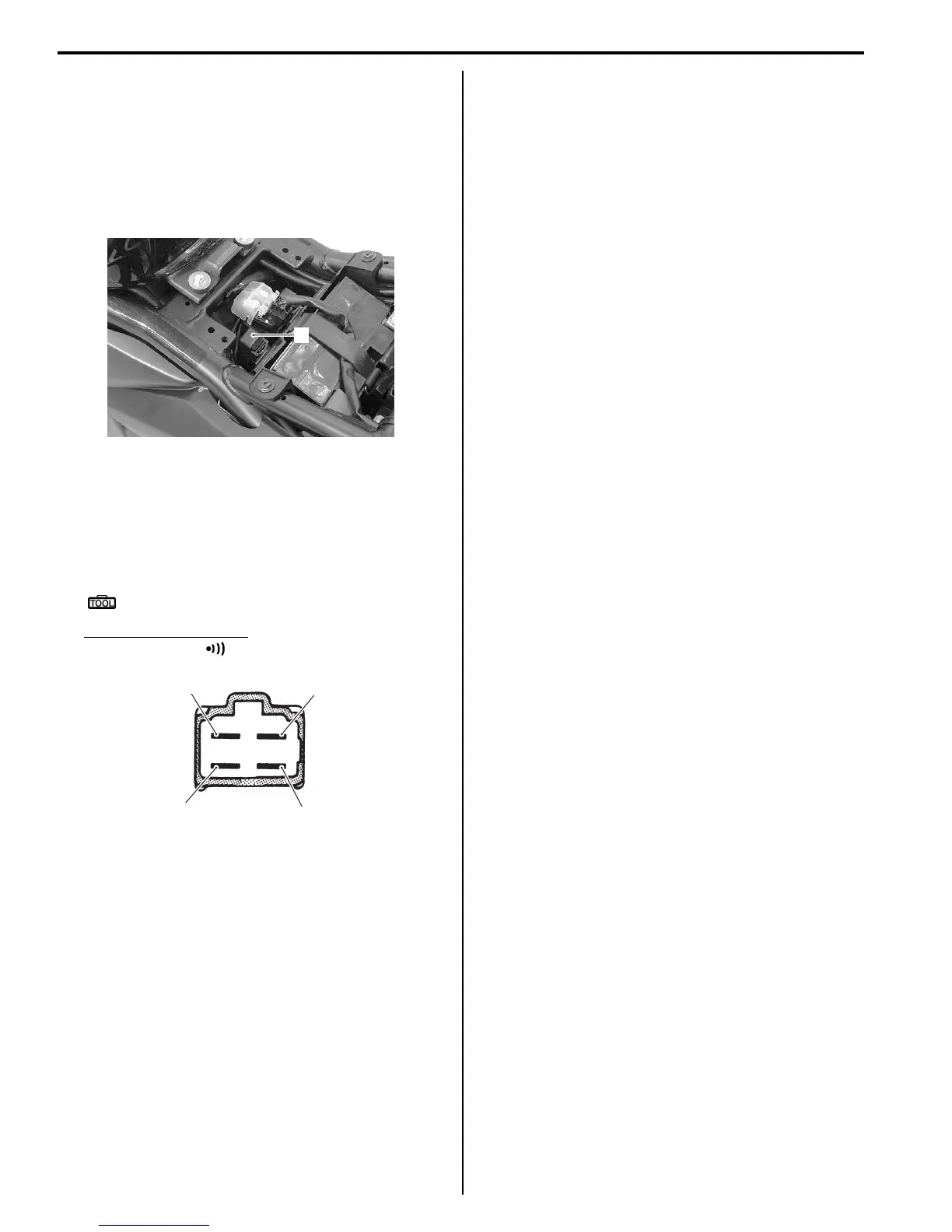

Inspect the fuel pump relay in the following procedures:
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation in Section 9D (Page 9D-6)”.
2) Remove the fuel pump relay (1).
3) First, check for insulation with the tester between
terminals “A” and “B”. Next, check for continuity
between “A” and “B” with 12 V voltage applied,
positive (+) to terminal “C” and negative (–) to
terminal “D”. If continuity does not exist, replace the
relay with a new one.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity test ( )
Fuel Hose Inspection
B718H11706030
Refer to “Fuel Line Inspection in Section 0B (Page 0B-
10)”.
Fuel Level Gauge Inspection
B718H11706031
Refer to “Fuel Level Gauge Inspection in Section 9C
(Page 9C-8)”.
Fuel Level Indicator Inspection
B718H11706032
Refer to “Fuel Level Indicator Inspection in Section 9C
(Page 9C-6)”.
Fuel Level Indicator Switch (Thermistor)
Inspection
B718H11706040
Refer to “Fuel Level Indicator Switch (Thermistor)
Inspection in Section 9C (Page 9C-7)”.
1
I718H1170041-01
“A”
“B”
“C”
“D”
I718H1170013-01
