1D-8 Engine Mechanical:

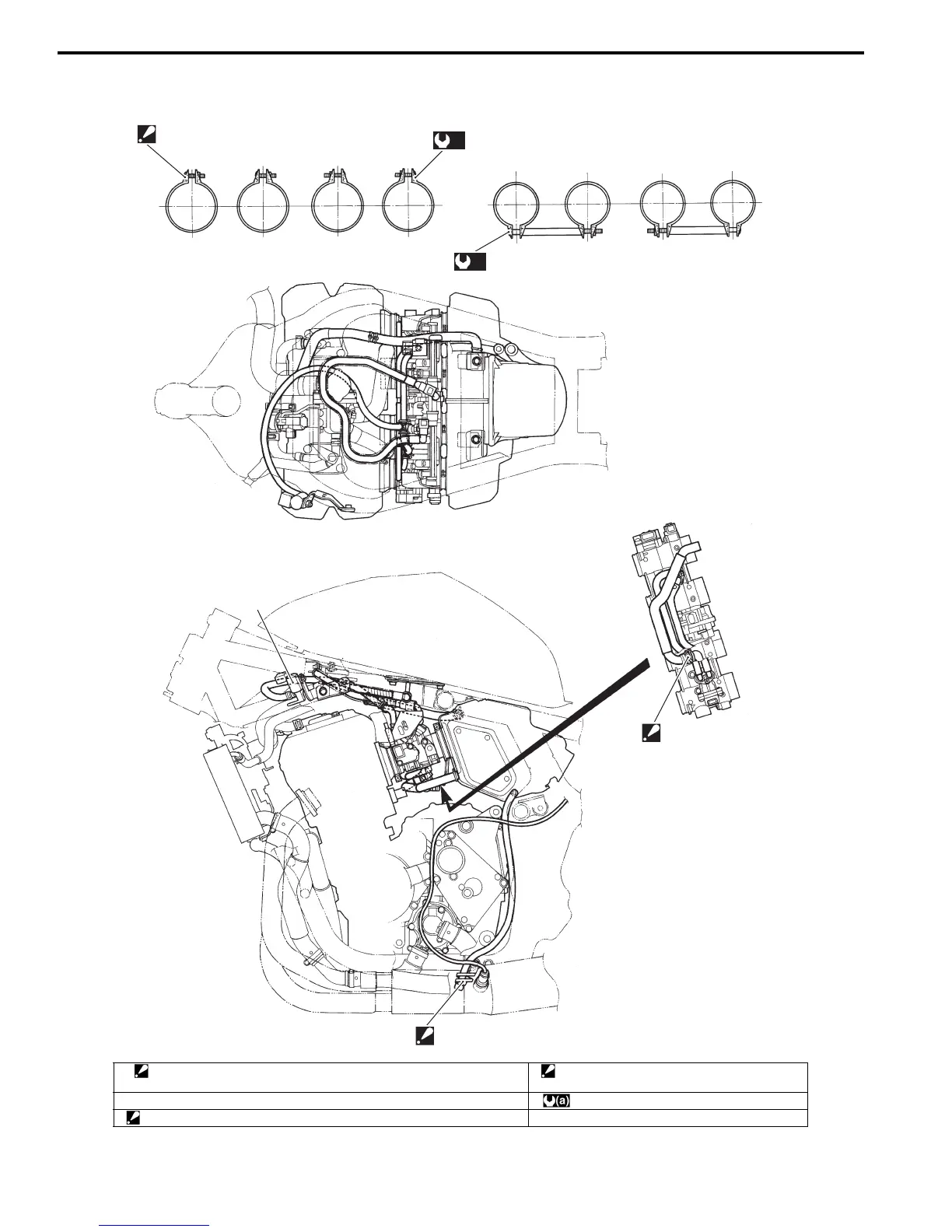

Throttle Body Construction
B718H11406041
“B”
2
LH
LHRH
RH
Upper Upper
Air cleaner side
Engine side
1
(a)
(a)
“A”
I718H1140314-01
1. Clamp (Air cleaner side)
: After tighten the clamp band #2, 3 and tighten the clamp band #1, 4.
“B”: Clamp the drain hose at mark position.
2. EVAP purge control valve (E-33 only) : 1.5 N⋅m (0.15 kgf-m, 1.0 Ib-ft)
“A”: White mark downward.
To Next Page
