Suzuki GSF1250 Service Manual

1G-11 Fuel System:
Fuel Pump Assembly / Fuel Level Gauge
Removal and Installation
B718H11706034
Removal
WARNING
!
• Spilled gasoline should be wiped off
immediately.
• Keep away from fire or spark.
• Work in a well-ventilated area.

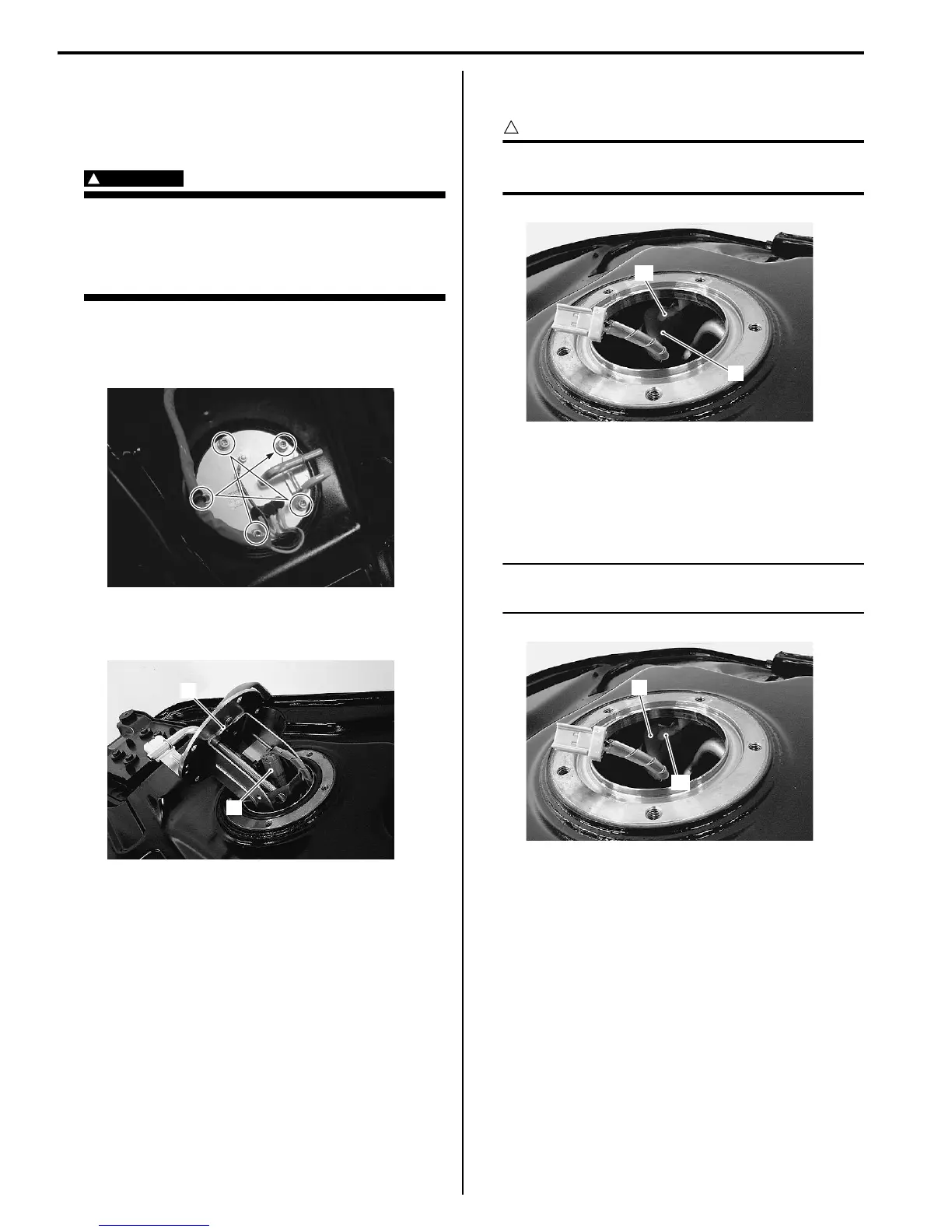

1) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation (Page 1G-9)”.
2) Remove the fuel pump mounting bolts diagonally.
3) Remove the fuel pump assembly (1) and disconnect
the fuel level gauge lead wire coupler (2).
4) Remove the fuel level gauge (3) while pushing the
pawl end “A”.
CAUTION
!
Do not pull the lead wire when removing the
fuel gauge.
Installation
Install the fuel pump assembly in the reverse order of
removal. Pay attention the following points:
• Install the fuel level gauge (1) into the fuel tank.
NOTE
Push the lock position “A” fully until the
clicking sound heard.
I718H1170023-04
2
1
I718H1170025-02
3
“A”
I718H1170026-02
1
“A”
I718H1170024-02

Suzuki GSF1250 Specifications

General

Displacement	1255 cc
Bore x Stroke	79.0 mm x 64.0 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	6-speed, constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Overall Length	2130 mm
Overall Width	790 mm
Seat Height	805 mm
Wheelbase	1485 mm
Fuel Tank Capacity	19.0 L
Starter	Electric
Final Drive	Chain
Ignition	Electronic ignition (transistorized)
Engine Type	4-stroke, liquid-cooled, DOHC
Ground Clearance	135 mm
