Lighting Systems: 9B-5

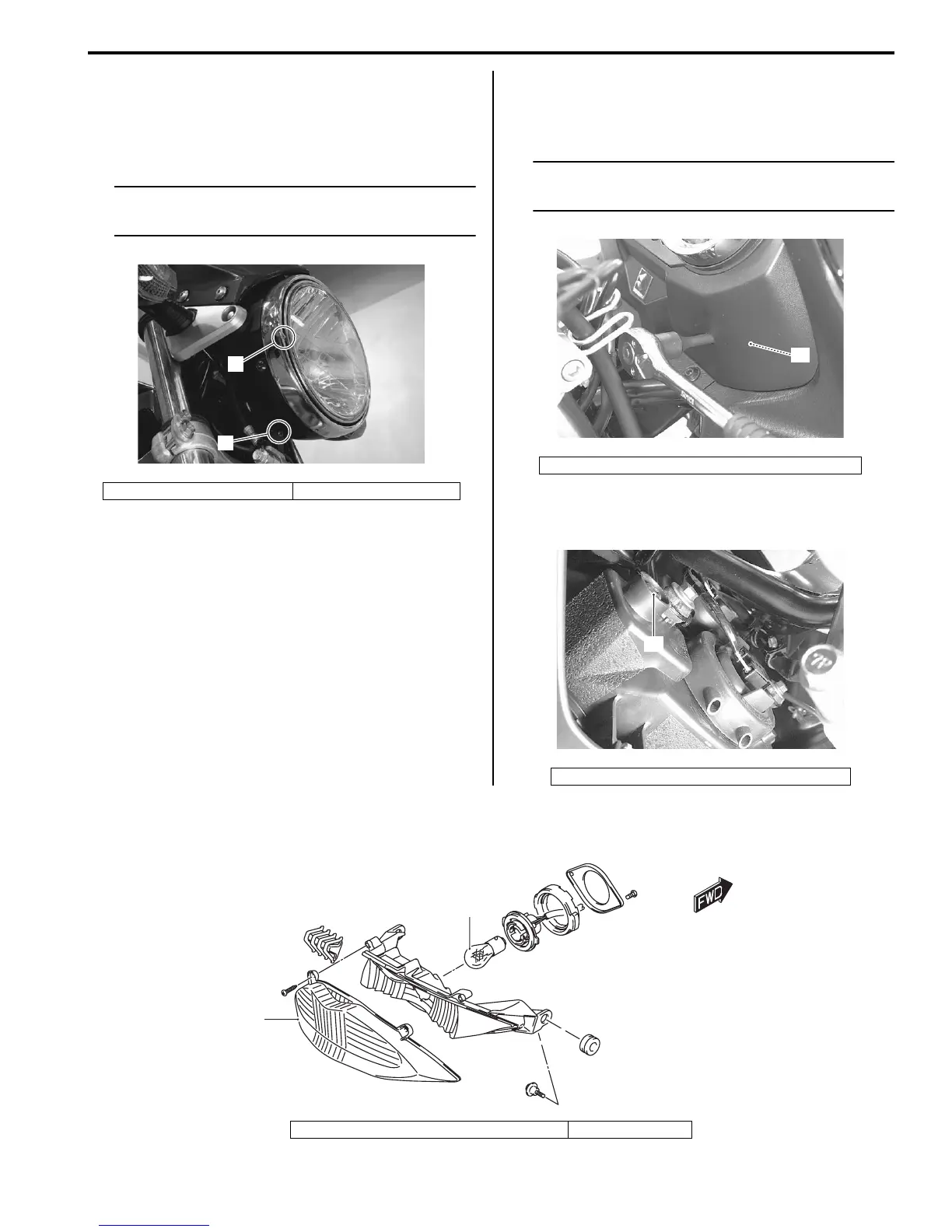

Headlight Beam Adjustment
B718H19206026
GSF1250/A
Adjust the headlight beam, both horizontally and
vertically.
NOTE
To adjust the headlight beam, adjust the
beam horizontally first, then vertically.
GSF1250S/SA
1) Insert 5 mm hexagon wrench as shown and adjust
the Low and High headlight beam horizontally.
NOTE
To adjust the headlight beam, adjust the
beam horizontally first, then vertically.
2) Adjust the Low and High headlight beam vertically
from the lower side.
Rear Combination Light Components
B718H19206005
1. Horizontal adjuster 2. Vertical adjuster
1
2
I718H1920037-02
“A”: Horizontal adjuster (For both Low and High beam)
“B”: Vertical adjuster (For both Low and High beam)
“A”
I718H1920041-01
“B”
I718H1920042-01
1
2
I649G1920017-03
1. Brake light/Taillight bulb (12 V 21/5 W) 2. Lens
