1H-1 Ignition System:
Engine
Ignition System
Schematic and Routing Diagram

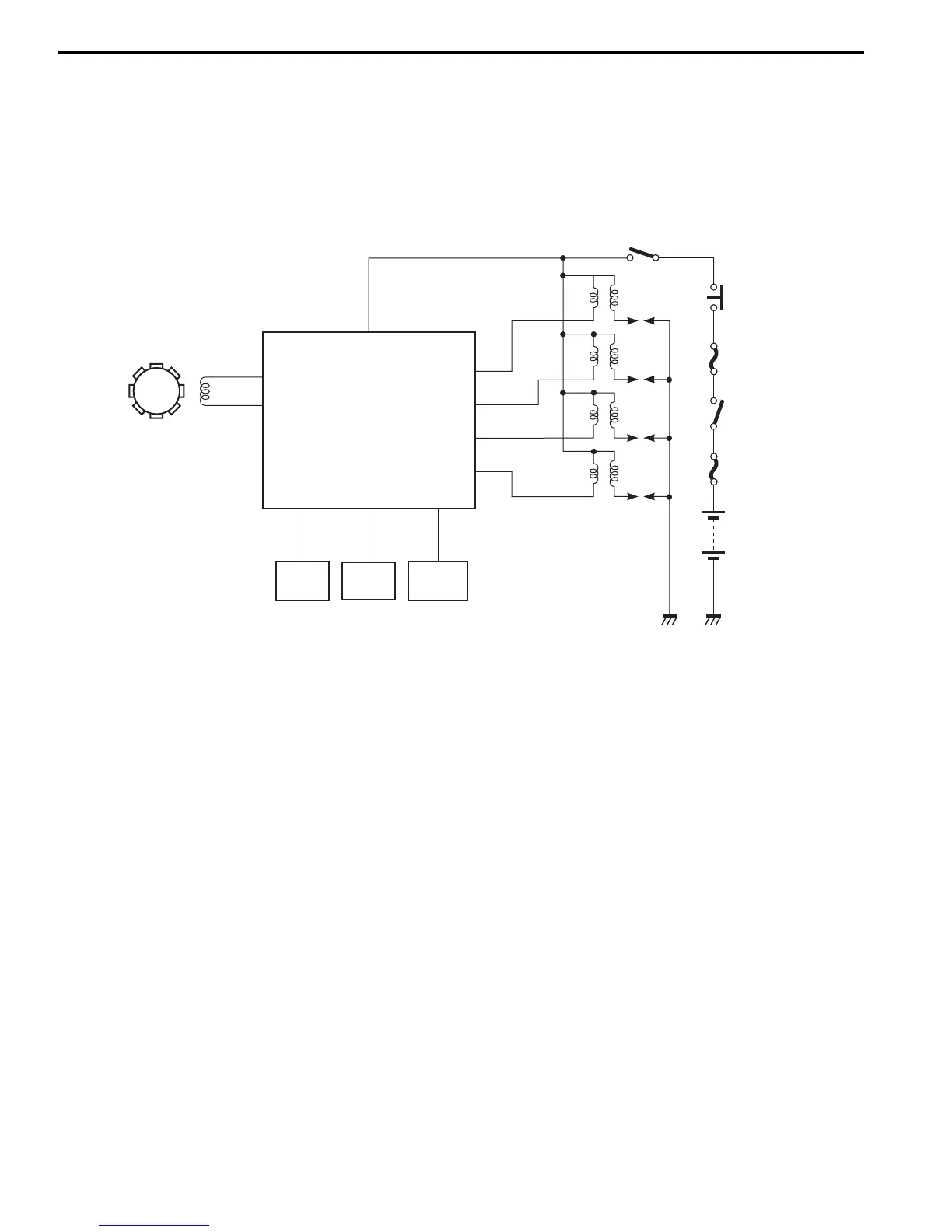

Ignition System Diagram
B718H11802001
Refer to “Wire Color Symbols in Section 0A (Page 0A-6)”.
Ignition System Components Location
B718H11802002
Refer to “Electrical Components Location in Section 0A (Page 0A-8)”.
#1
#2
#3
#4
CKP
sensor
TP
sensor
ECT
sensor
GP
switch
Engine stop switch
Side-stand
relay
Fuse
Fuse
Ignition
switch
Battery
ECM
I718H1180001-02
