Suzuki GSF1250 - Fuel Tank Construction

Fuel System: 1G-8

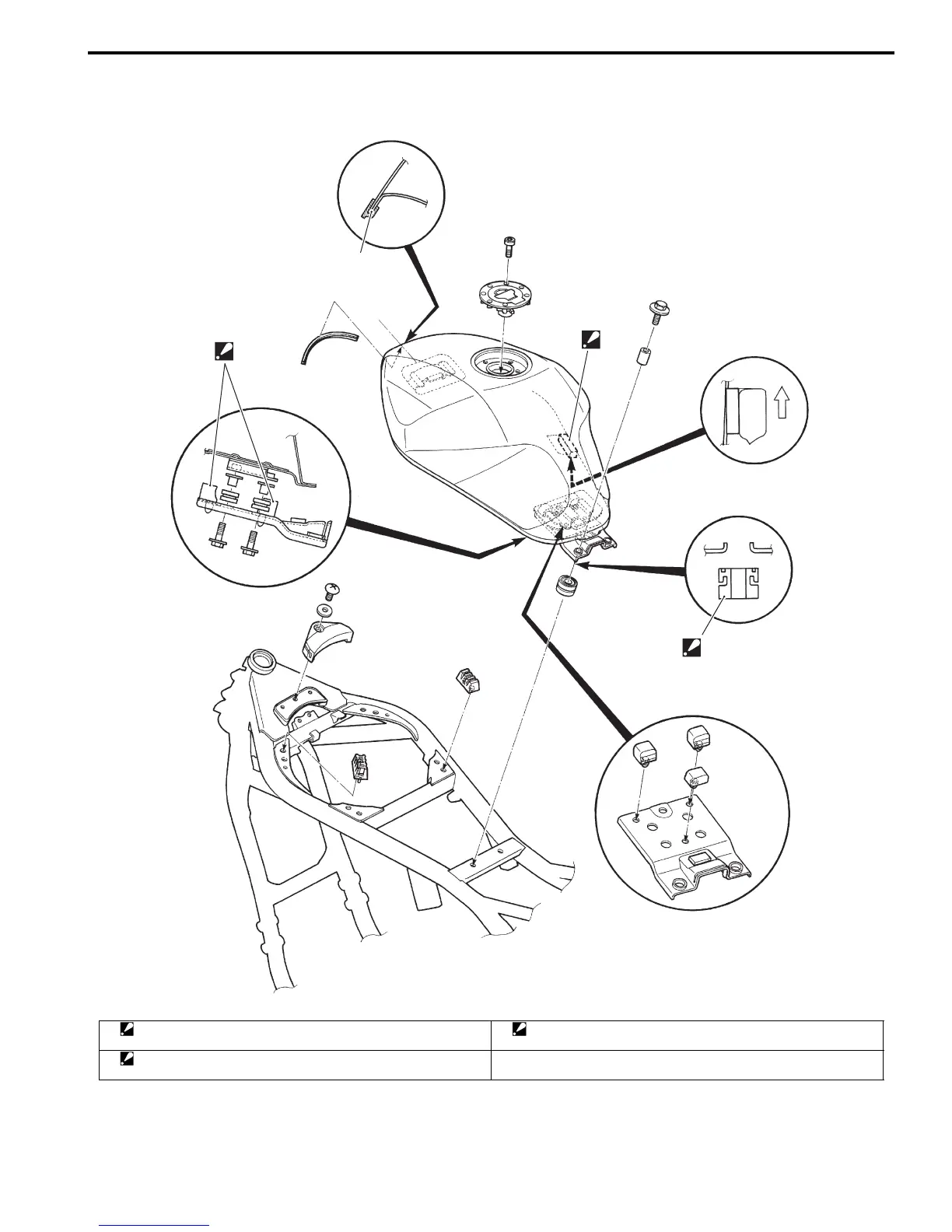

Fuel Tank Construction
B718H11706001
1
3
“A”
2
I718H1170020-03
1. Fuel tank rear cushion
: Be careful not to mistake the assembling position and direction.
3. Rear bracket cushion
: Be careful not to mistake the assembling position and direction.
2. EVAP pipe cushion (E-33 only)
: Matched with cushion seat surface.
“A”: Apply adhesive agent to the cushion rubber.
