Suzuki GSF1250 - Front Wheel Assembly Construction

Wheels and Tires: 2D-4

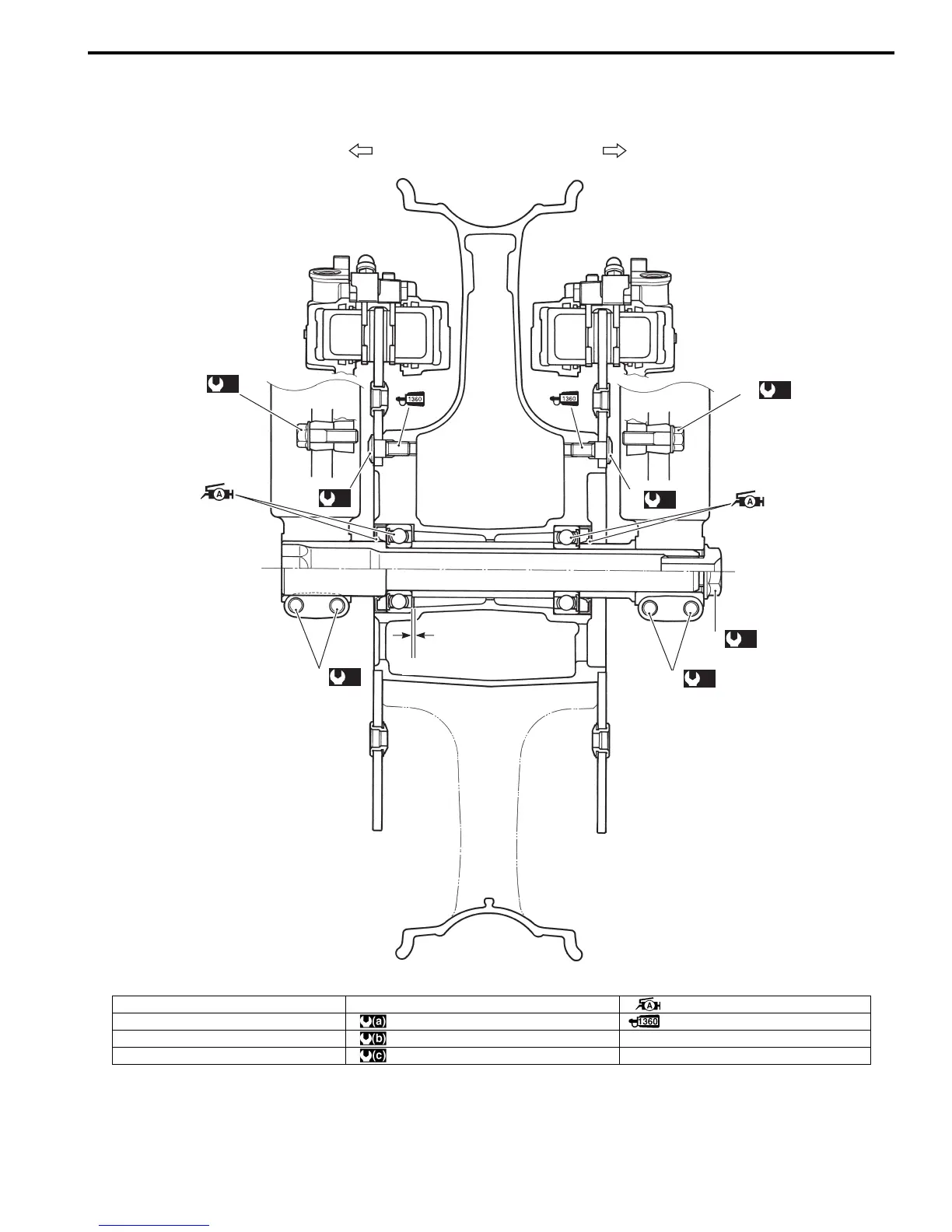

Front Wheel Assembly Construction
B718H12406002
GSF1250/S
Left Right
(b)
2
(a)
1
(b)
2
(a)
1
“a”
4
(a)
4
(a)
3
(c)
I718H1240044-02
1. Brake disc bolt “a”: Clearance : Apply grease.
2. Brake caliper mounting bolt : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft) : Apply thread lock to thread part.
3. Front axle bolt : 26 N⋅m (2.6 kgf-m, 19 lb-ft)
4. Front axle pinch bolt : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
