Suzuki GSF1250 - Engine Mount Bushing Replacement; Front Footrest Bracket Construction

9E-2 Body Structure:
Engine Mount Bushing Replacement
B718H19506003
Replace the engine mount bushing if necessary, as shown in the body frame construction. Refer to “Body Frame
Construction (Page 9E-1)”.

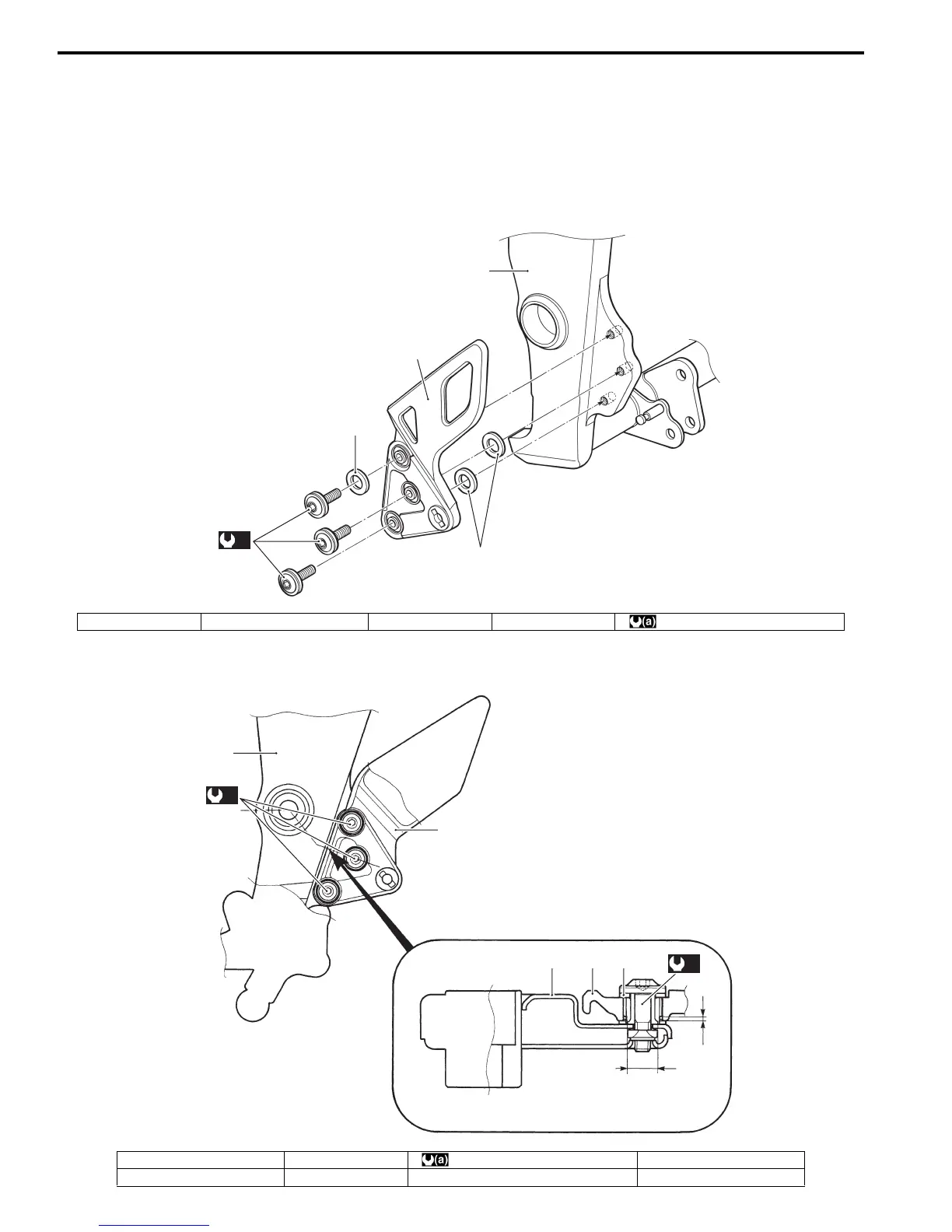

Front Footrest Bracket Construction
B718H19506005
GSF1250/S
GSF1250A/SA
3
3
2
1
(a)
4
I718H1950001-04
1. Frame 2. Footrest bracket 3. Washer 4. Bolt : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
“b”
“a”
1 2 3
(a)
4
(a)
4
1
2
I718H1950004-02
1. Frame 3. Washer : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft) “b”: 16.4 mm (0.65 in)
2. Footrest bracket 4. Bolt “a”: 2.0 mm (0.08 in)
