Maintenance and Lubrication: 0B-2

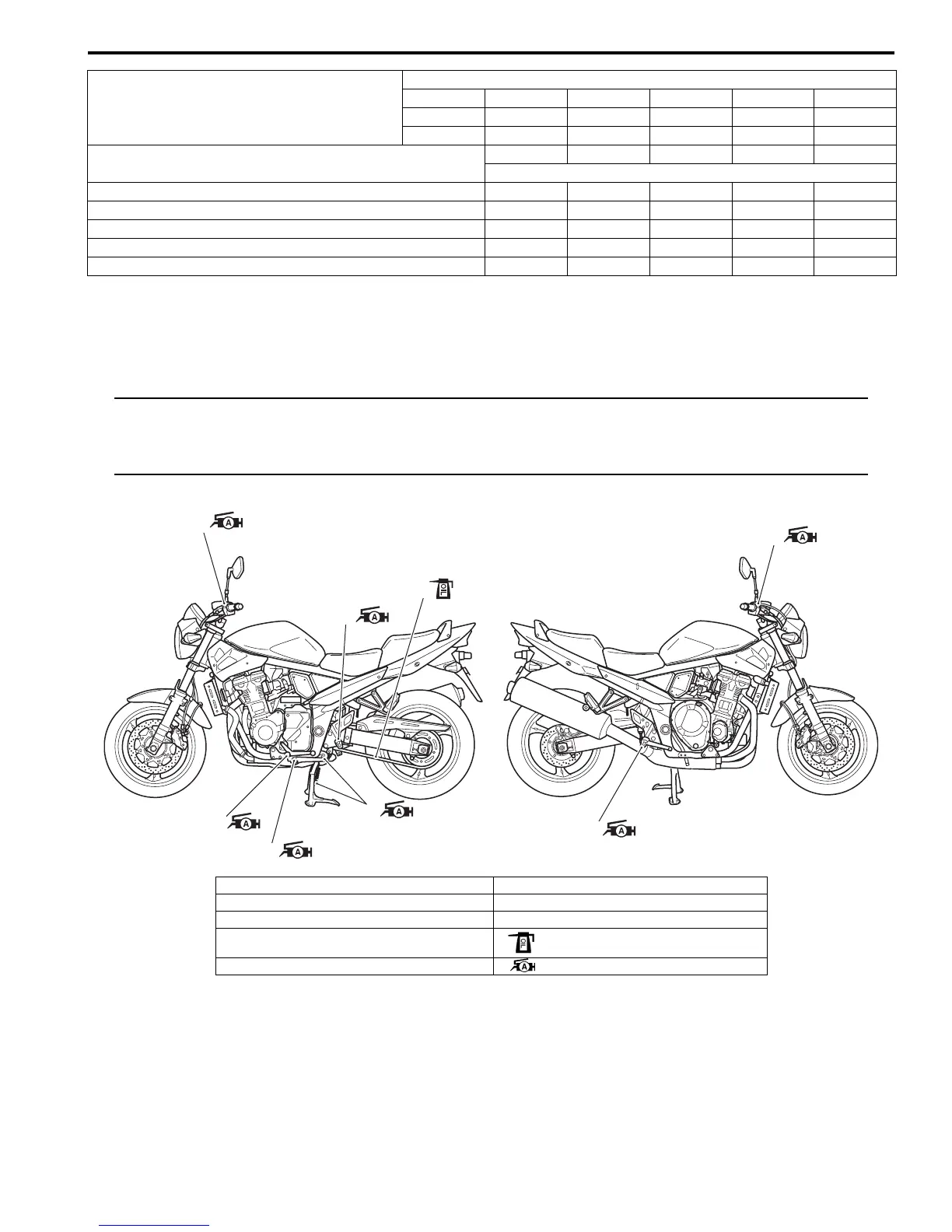

Lubrication Points
B718H10205002
Proper lubrication is important for smooth operation and long life of each working part of the motorcycle.
Major lubrication points are indicated as follows.
NOTE
• Before lubricating each part, clean off any rusty spots and wipe off any grease, oil, dirt or grime.
• Lubricate exposed parts which are subject to rust, with a rust preventative spray whenever the
motorcycle has been operated under wet or rainy conditions.
Brake fluid
—IIII
Replace every 2 years.
Tires —IIII
Steering I—I—I
Front forks ——I—I
Rear suspension — — I — I
Chassis bolts and nuts TTTTT
Item
Interval
km 1 000 6 000 12 000 18 000 24 000
miles 600 4 000 7 500 11 000 14 500
months2 12243648
1
2
3
4
5
6
7
8
I718H1020006-02
1. Clutch lever holder 6. Drive chain
2. Gearshift lever pivot 7. Brake lever holder
3. Side-stand pivot and spring hook 8. Brake pedal pivot and footrest pivot
4. Center stand pivot and spring hook : Apply oil.
5. Footrest pivot : Apply grease.
