Starting System: 1I-3
Repair Instructions

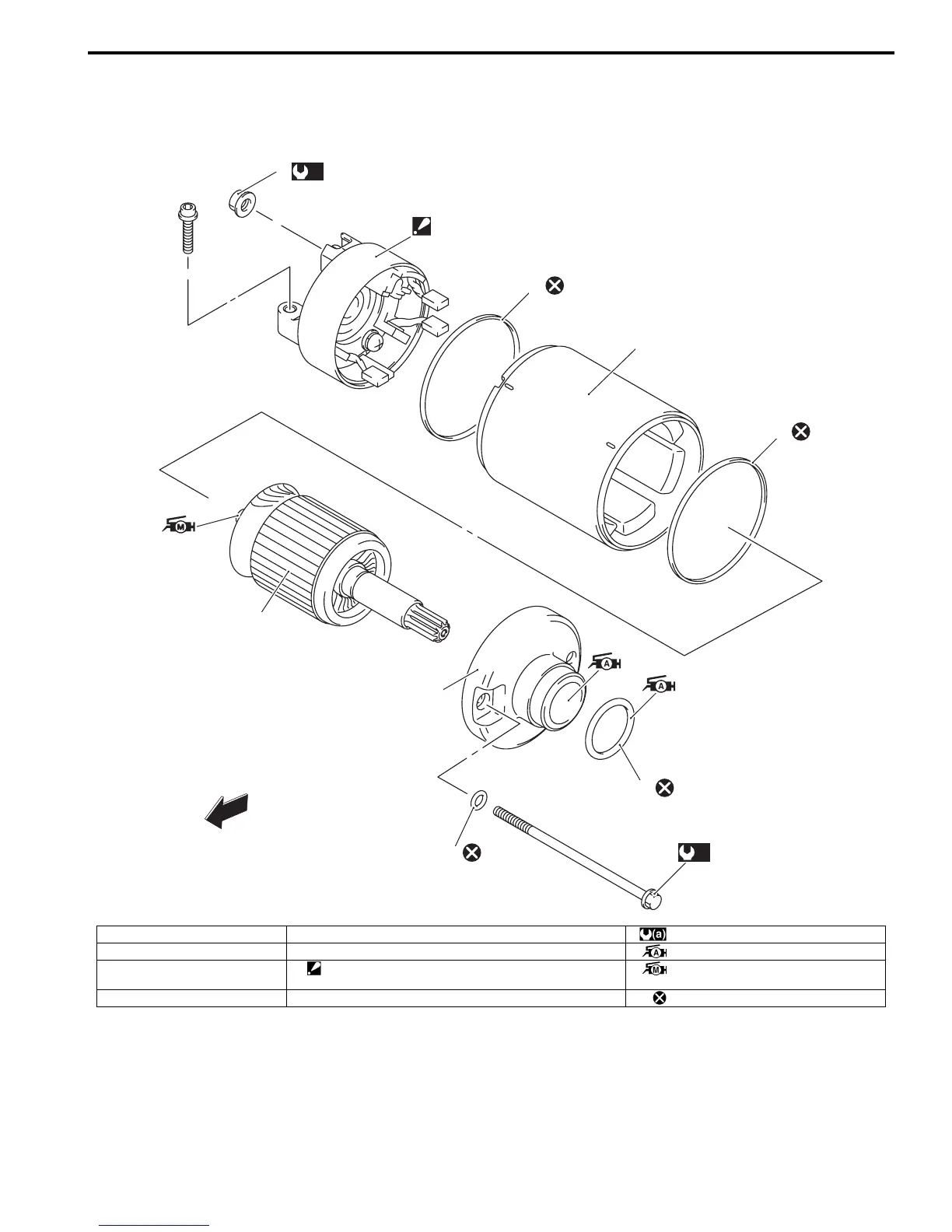

Starter Motor Components
B718H11906001
(a)
8
7
(a)
1
2
3
5
5
6
4
FWD
I718H1190038-03
1. O-ring 5. O-ring : 5 N⋅m (0.5 kgf-m, 3.5 lb-ft)
2. Housing end (Inside) 6. Starter motor case : Apply grease to sliding surface.
3. O-ring 7: Housing end assembly (Outside)
: Never remove the brush, spring and brush holder.
: Apply moly past to sliding surface.
4. Armature 8. Starter motor lead wire nut : Do not reuse.
