2B-5 Front Suspension:

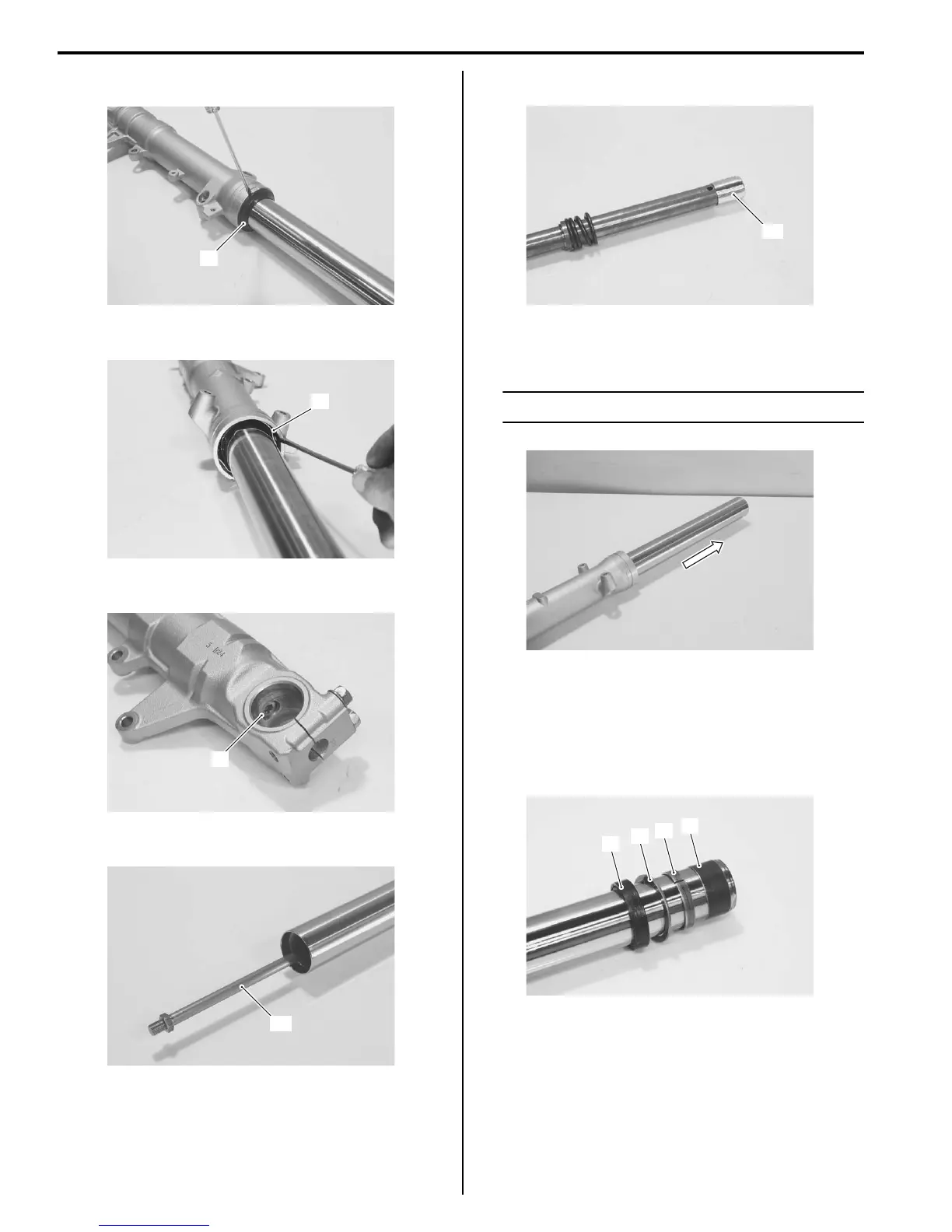

8) Remove the dust seal (8).
9) Remove the oil seal stopper ring (9).
10) Remove the damper rod bolt (10).
11) Remove the inner rod cylinder (11).
12) Remove the oil lock piece (12).
13) Remove the oil seal by slowly pulling out the inner
tube.
NOTE
Be careful not to damage the inner tube.
14) Remove the following parts.
• Oil seal (13)
• Oil seal retainer (14)
• Outer tube slide metal (15)
• Inner tube slide metal (16)
8
I649G1220013-03
9
I649G1220014-03
10
I649G1220015-03
11
I649G1220016-03
12
I649G1220017-03
I649G1220018-02
13
14
15
16
I649G1220019-05
