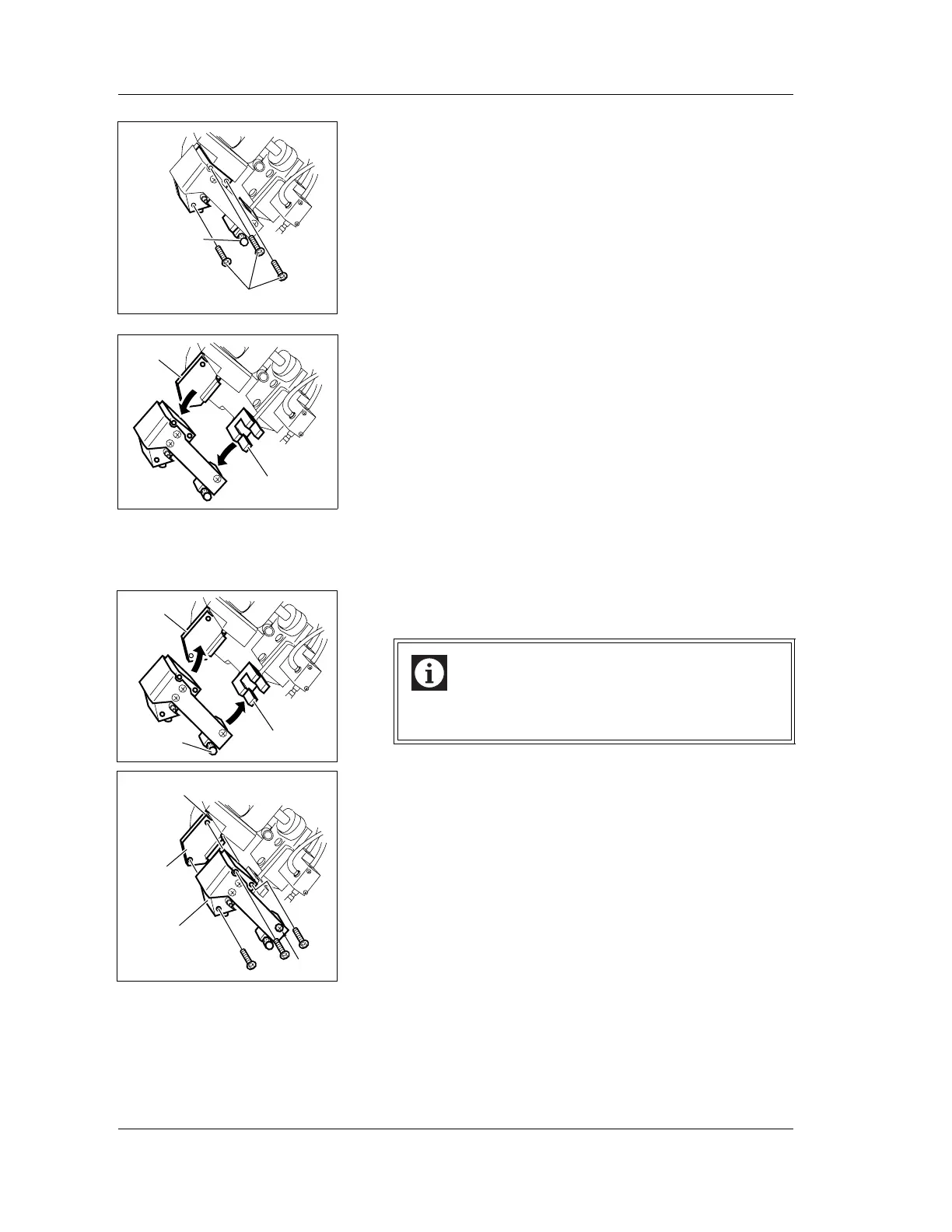

6. Loosen the fixture lock screw, remove three screws which
fix the rinse cup.
7. Remove the piercer and dispose of it.
Installation
1. Set a new piercer to the slider and piercer support, and
tighten the fixture lock screw.
2. Loosen slightly the screw A on the piercer fixing board.
Slide the rinse cup and press it against the slider surface,
then fix the rinse cup with three fixing screws.
Fixture lock
screw
Fixing screws
Slider
Piercer support
Information
After tightening the fixture lock screw by hand,
retighten it with a screwdriver.
Slider
Fixing screw
Piercer support
A
Press the rinse cup against this face.
Slider
Rinse cup
