SYSMEX XE-5000 - Replacing the Fuses

CHAPTER 9 Cleaning and Maintenance
9-44 Sysmex XE-5000 Instructions for Use
Revised April 2007 EU

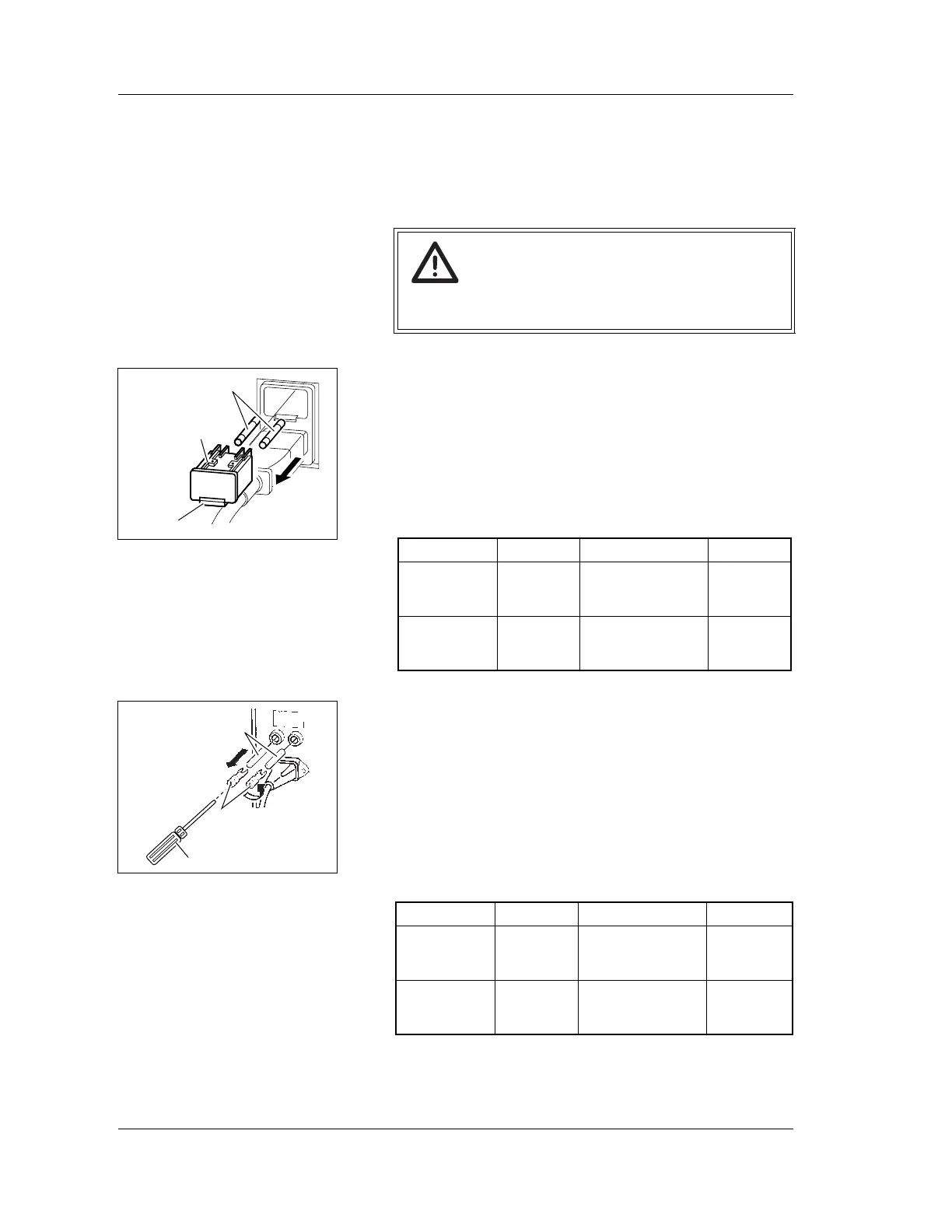

9.19 Replacing the fuses
Over current protection fuses are used in the Main Unit and
Pneumatic Unit. When a fuse is blown, replace it by the
following procedure.
Main Unit
1. Turn OFF the power of the Main Unit, Pneumatic Unit, and
IPU, and disconnect the power cord of the Main Unit.
2. Remove the fuse cap holder.
Remove the fuse cap holder at the rear face of the Main
Unit while pushing its claw up using a flat-tip screwdriver.
3. Replace the fuse and attach the fuse cap holder.
Main Unit
Pneumatic Unit
1. Turn OFF the power of the Main Unit, Pneumatic Unit, and
IPU, and disconnect the power cord of the Pneumatic
Unit.
2. Remove the fuse cap holder.
Remove the fuse cap holder at the right face of the
Pneumatic Unit by turning it counterclockwise using a
flat-tip screwdriver.
3. Replace the fuse and attach the fuse cap holder.
Pneumatic Unit
Warning!
• To avoid electrical shock, disconnect supply before
servicing.
Specification Part No. Description Fuse Type
117 VAC 266-5106-0 FUSE 250V 6.3A
ST4-6.3A-N1
(N.AMERICA)
Time Lag
220/240 VAC 266-5293-0 FUSE 250V 3.15A
NO. 19195
(EUROPE)
Time Lag
Claw
Fuse cap holder
Fuse
Specification Part No. Description Fuse Type
117 VAC 266-7651-2 FUSE 250V 4A
313004
(N.AMERICA)
Time Lag
220/240 VAC 266-5293-0 FUSE 250V 3.15A
NO. 19195
(EUROPE)
Time Lag
Fuse cap holder
Screwdriver
Fuse
