CHAPTER 10 Troubleshooting
10-30 Sysmex XE-5000 Instructions for Use
Revised July 2007
10.5 Test
The XE-5000 is equipped with test processes for checking
system operation and finding the causes of abnormalities
occurring in the Main Unit.
Status
1. Sensor 1

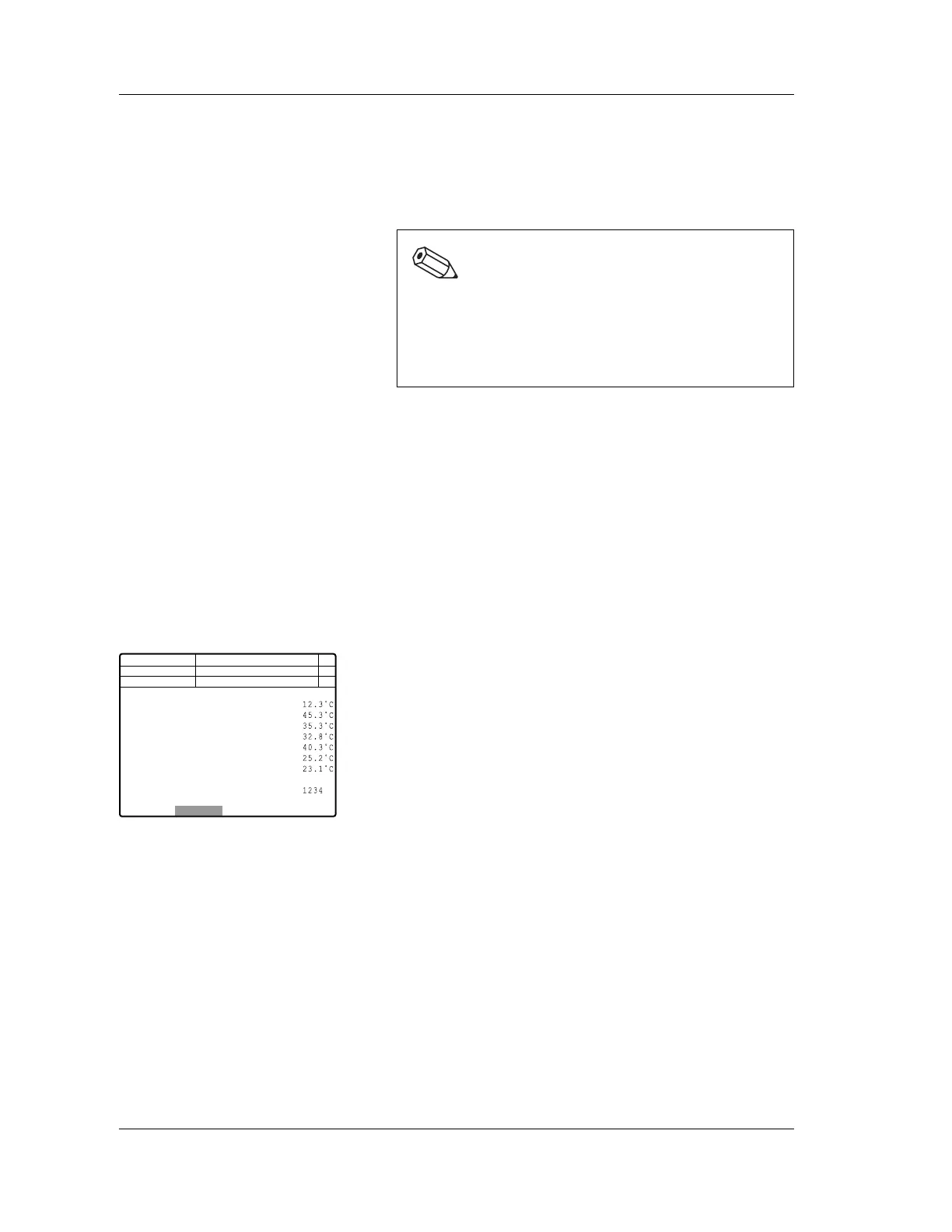

The Sensor 1 screen displays pressure, temperature,
photomultiplier tube voltage, laser power and HGB convert
value.
1. From the Main Menu screen on the Main Unit, select
“Test” on the function menu.
The Test Menu screen will appear.
2. Select “Status” on the function menu of the Test Menu
screen.
The Status screen will appear .
3. Select “Sensor 1” on the function menu of the Status
screen.
The Sensor 1 screen will appear.
<Pressure>
0.25 MPa: Indicates 0.25 MPa
0.16 MPa: Indicates 0.16 MPa
0.07 MPa: Indicates 0.07 MPa
0.03 MPa: Indicates 0.03 MPa
-0.07 MPa: Indicates source vacuum.
-0.04 MPa: Indicates -0.04 MPa
<Temperature>
REACT CMB: Indicates temperature of reaction unit.
REAG40: Indicates temperature of 40°C heater.
REAG33: Indicates temperature of 33°C heater.
IMI DTCT: Indicates temperature of IMI detector
block.
OPT DTCT: Indicates temperature of optical
detector block.
RBC DTCT: Indicates temperature of RBC detector
block.
ENVIRONMENT: Indicates ambient temperature.
Note:
The test program can only be executed when the Main
Unit is ready. During analysis, a “Wait until READY”
message will appear, and the programs will not be
executed. Also note that analysis cannot be
performed while the test program is in progress.
Next No.123456789012346
DP No. 123456789012345
0.2464
0.1570
0.0687
0.0295
-0.0733
-0.0399
C D N R
Manual
0.25MPa
0.16MPa
0.07MPa
0.03MPa
-0.07MPa
-0.04MPa
REACT CMB
REAG40
REAG33
IMI DTCT
OPT DTCT
RBC DTCT
ENVIRONMENT
PMT(SSC) -234 V
PMT(SFL) -256 V HGB
LASER PWR 65.3mA
Cancel
<Pressure> <Temparature>
