11.10 Installation space

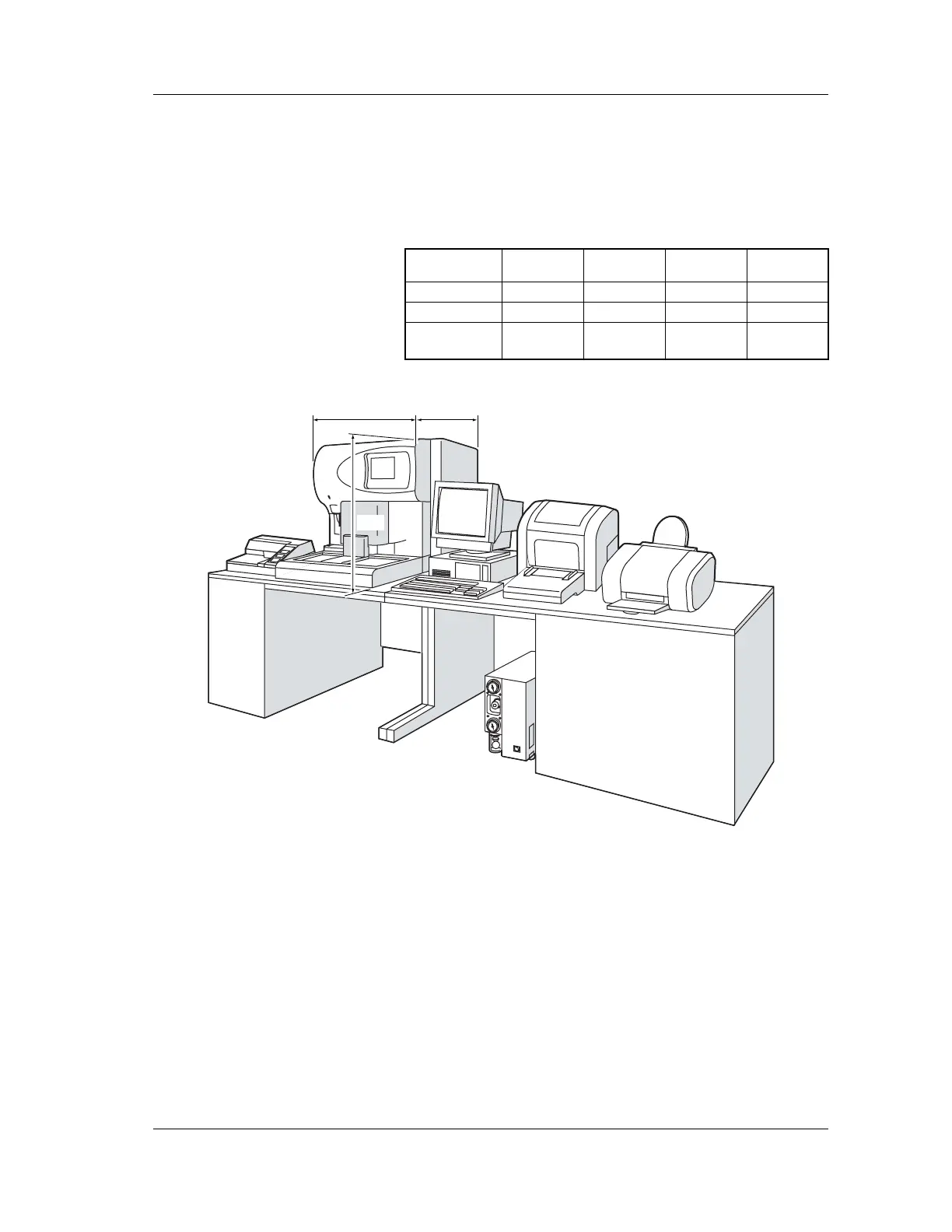

To secure the space required for maintenance, install the IPU
on the right side of the Main Unit. The Main Unit should be at
least 25 cm away from the CRT of the IPU.
Provide a distance of at least 50 cm behind the instrument.
Component
Width
(mm)
Depth
(mm)
Height
(mm)
Weight
(kg)
Main Unit 706 535 711 Approx. 81
Sampler 580 377 195 Approx. 12
Pneumatic
Unit
195 395 333
Approx.
15.5
706
535
711
