5 Power supply switch
Turns the power ON and OFF.

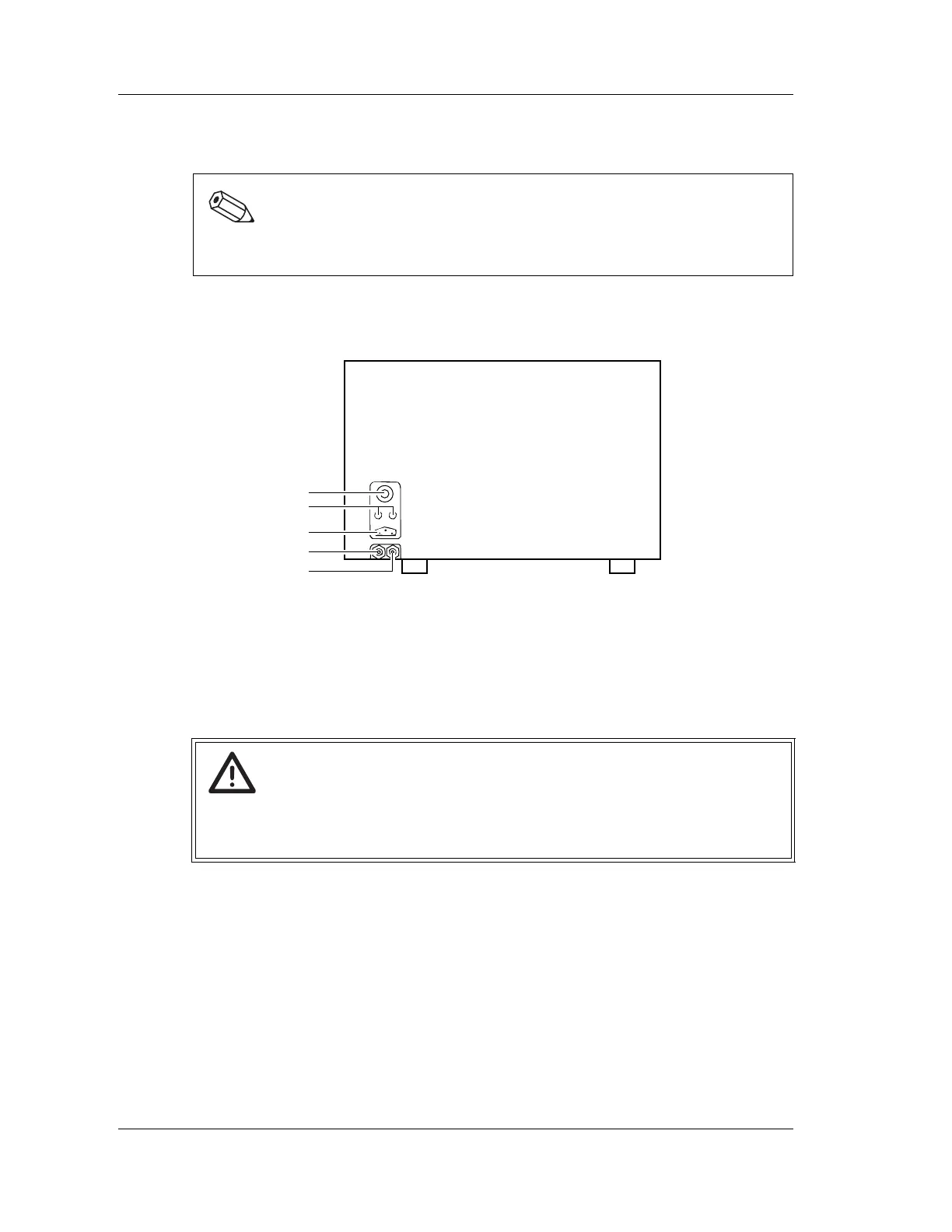

Right Side View
1 Pneumatic Unit control input connector
The input connector for controlling the Pneumatic Unit ON/OFF. Connects to the
Pneumatic Unit control output connector of the Main Unit.
2 Fuse
This is a 250V, 3.15A (time lag) fuse.
3 Power supply connector
Supplies power with the power cord provided.
4 Vacuum outlet nipple
Supplies vacuum to the Main Unit. Connects to the vacuum supply nipple of the Main
Unit.
5 Pressure outlet nipple
Supplies pressure to the Main Unit. Connects to the air drier inlet nipple of the Main
Unit.
Note:
Do not turn the power ON and OFF repeatedly in a short period of time.
This can cause an overload to blow the fuse.
Warning!
• To avoid electrical shock, disconnect supply before servicing.
• For the continued protection against risk of fire, replace only with fuse of the
specified type and current ratings.
4
3
2
1
5
