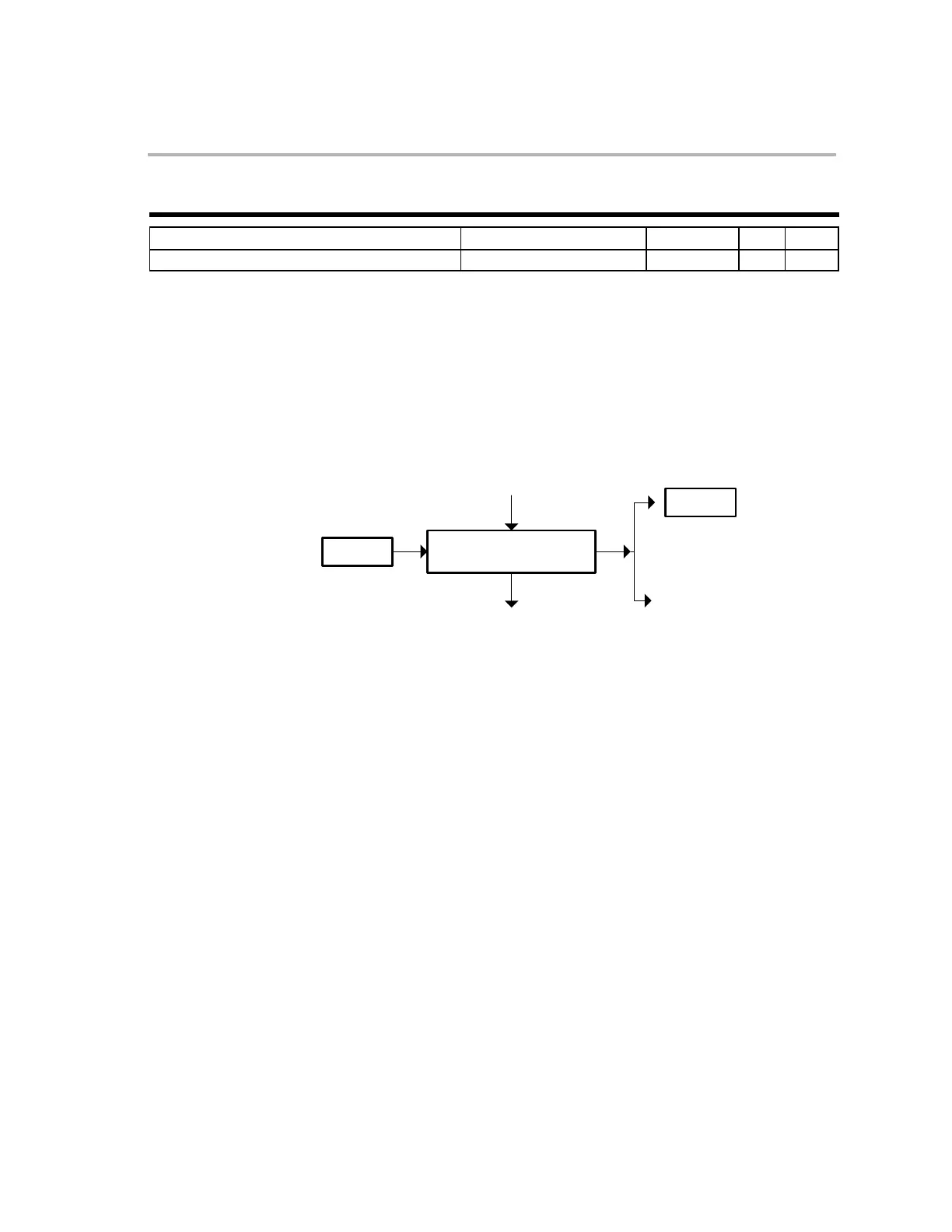

ASRL ACC,T Arithmetic Shift Right of Accumulator
SYNTAX OPTIONS OPCODE OBJMODE RPT CYC
ASRL ACC,T 0101 0110 0001 0000 1 − 1
Operands ACC Accumulator register
T Upper 16 bits of the multiplicand (XT) register
Description Perform an arithmetic shift right on the content of the ACC register as
specified by the five least significant bits of the T register, T(4:0) = 0…31.
Higher order bits are ignored. During the shift, the value is sign extended. If T
specifies a shift of 0, then C is cleared; otherwise, C is filled with the last bit to
be shifted out of the ACC register:
SIGN
C
ACC
ACC
Last bit out or cleared
Discard other bits
Right shift
(Contents of T[4:0]
Flags and
Modes
Z After the shift, the Z flag is set if the ACC value is zero, else Z is cleared. Even
if the T register specifies a shift of 0, the content of the ACC register is still
tested for the zero condition and Z is affected.
N After the shift, the N flag is set if bit 31 of the ACC is 1, else N is cleared. Even
if the T register specifies a shift of 0, the content of the ACC register is still
tested for the negative condition and N is affected.
C If (T(4:0) = 0) then C is cleared; otherwise, the last bit shifted out is loaded
into the C flag bit.
Repeat This instruction is not repeatable. If this instruction follows the RPT
instruction, it resets the repeat counter (RPTC) and executes only once.
Example
; Arithmetic shift right contents of VarA by VarB:
MOVL ACC,@VarA ; ACC = VarA
MOV T,@VarB ; T = VarB (shift value)
ASRL ACC,T ; Arithmetic shift right ACC by T(4:0)
MOVL @VarA,ACC ; Store result into VarA
