LSL ACC,T
6-134
LSL ACC,T Logical Shift Left by T(3:0)
SYNTAX OPTIONS OPCODE OBJMODE RPT CYC
LSL ACC,T 1111 1111 0101 0000 X − 1
Operands ACC Accumulator register
T Upper 16 bits of the multiplicand (XT) register

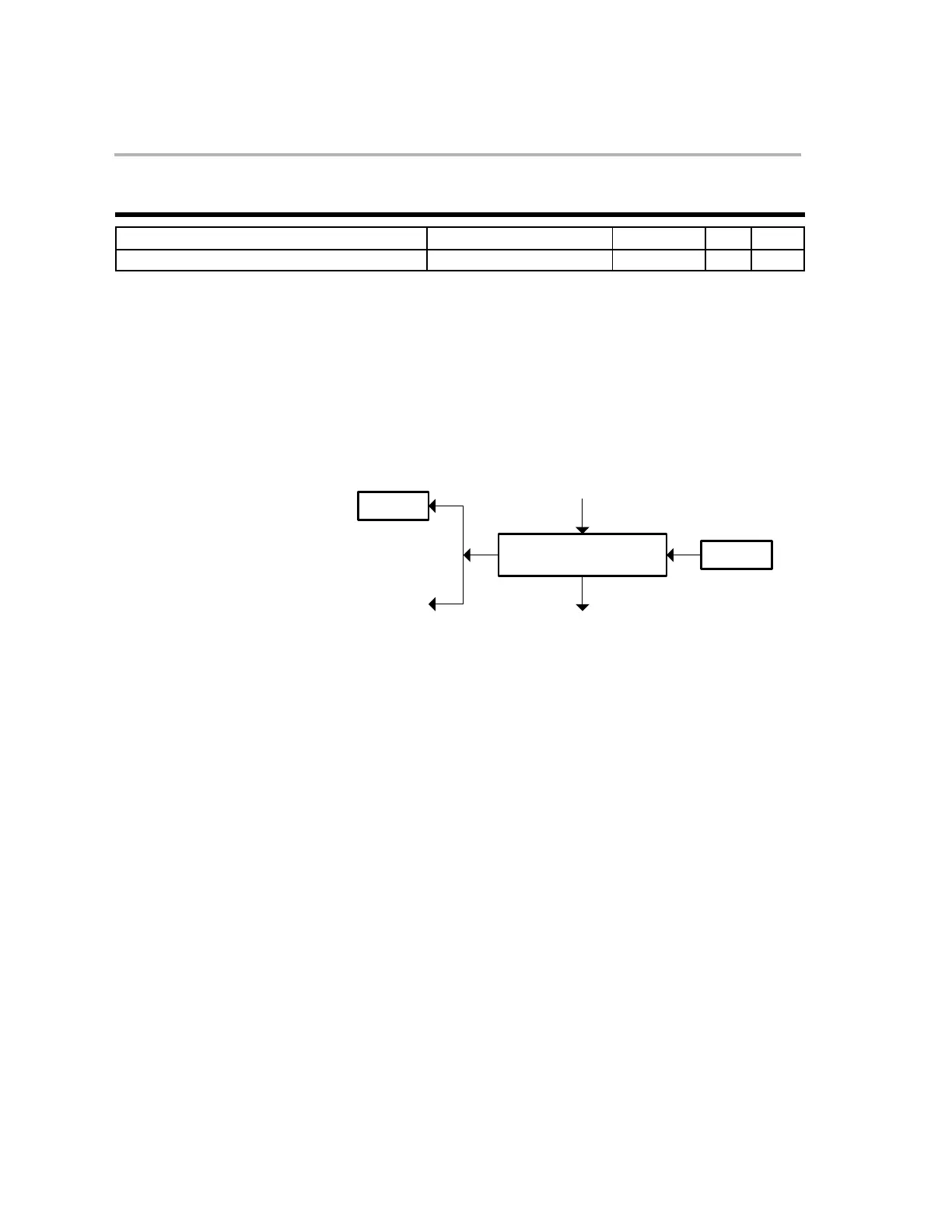

Description Perform a logical shift left on the content of the ACC register by the amount
specified by the four least significant bits of the T register, T(3:0) = 0…15.
Higher order bits are ignored. During the shift, the low order bits of the ACC
register are zero filled. If T specifies a shift of 0, then C is cleared; otherwise,
C is filled with the last bit to be shifted out of the ACC register:
0
C
ACC
ACC
Last bit out or cleared
Discard other bits
Left shift
(Contents T(3:0)
Flags and
Modes
Z After the shift, the Z flag is set if the ACC value is zero, else Z is cleared. Even
if the T register specifies a shift of 0, the content of the ACC register is still
tested for the zero condition and Z is affected.
N After the shift, the N flag is set if bit 31 of the ACC is 1, else N is cleared. Even
if the T register specifies a shift of 0, the content of the ACC register is still
tested for the negative condition and N is affected.
C If (T(3:0) = 0) then C is cleared; otherwise, the last bit shifted out is loaded
into the C flag bit.
Repeat This instruction is not repeatable. If this instruction follows the RPT
instruction, it resets the repeat counter (RPTC) and executes only once.
Example
; Logical shift left contents of VarA by VarB:
MOVL ACC,@VarA ; ACC = VarA
MOV T,@VarB ; T = VarB (shift value)
LSL ACC,T ; Logical shift left ACC by T(3:0)
MOVL @VarA,ACC ; Store result into VarA
