Shift Operations

2-48

Table 2−11. Shift Operations (Continued)

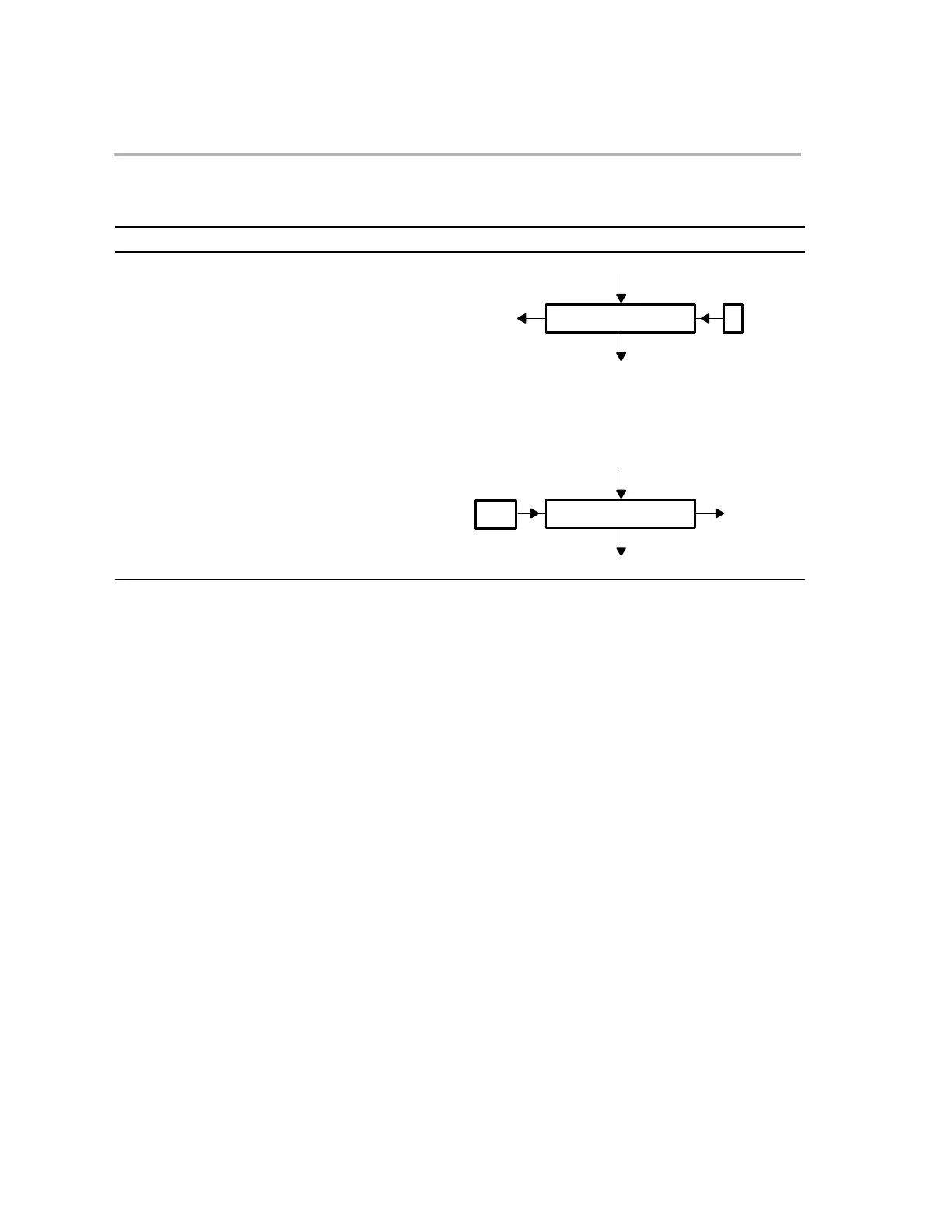

Operation Type Illustration

Shift of P as per PM bits. Syntaxes:

ADD ACC, P

SUB ACC, P

CMP ACC, P

MAC P, loc, 0:pmem

MOV ACC, P

MOVA T, loc

MOVP T, loc

MOVS T, loc

MPYA P, loc, #16BitSigned

MPYA P, T, loc

MPYS P, T, loc

Shift left

32 bits to ALU

Shift right

32 bits to ALU

Discard

Sign

Discard

For PM = 0:

For PM from 2−7:

For PM = 1: No shift
