Comparator Subsystem (CMPSS)
6 - 22 TMS320F2837xD Microcontroller Workshop - Analog Subsystem
Comparator Subsystem (CMPSS)

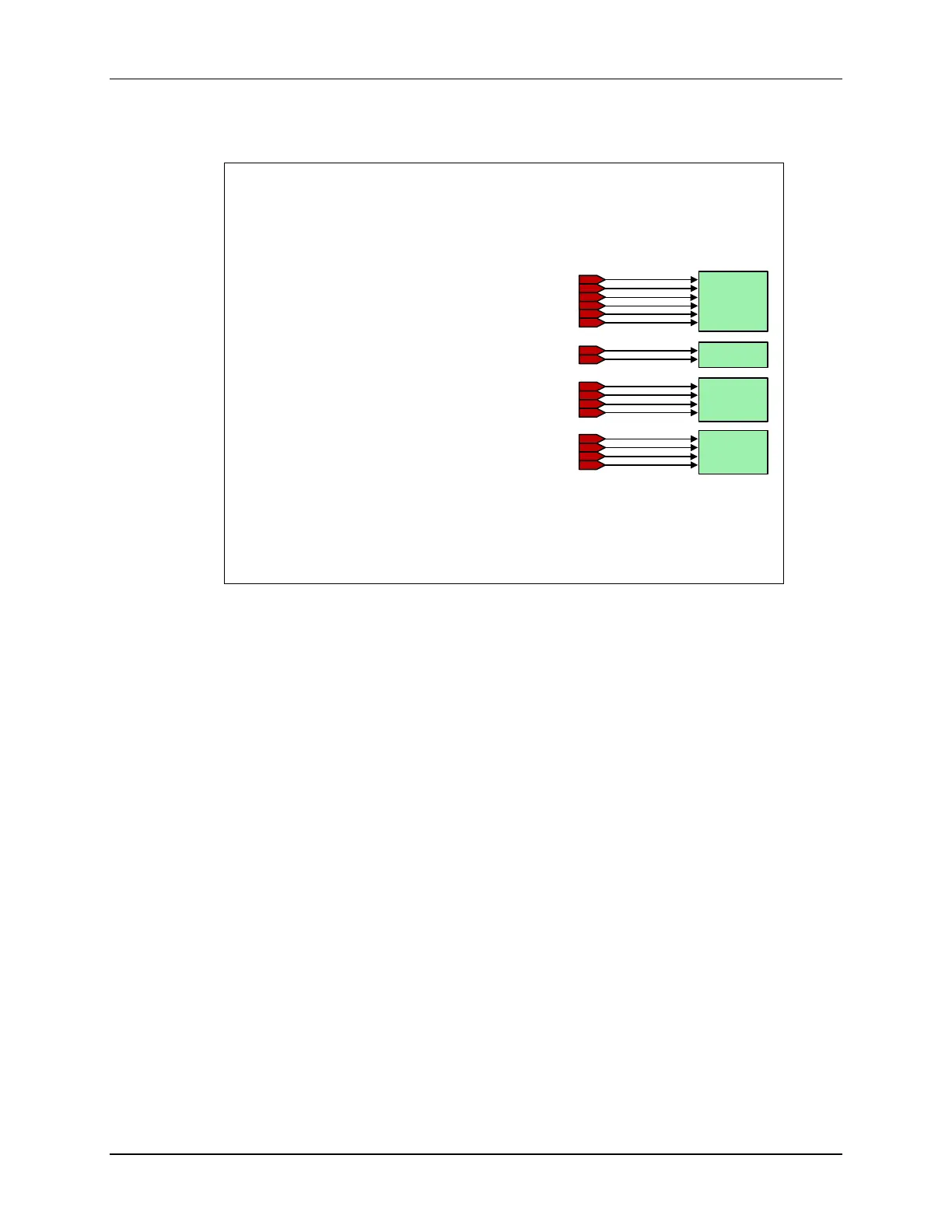

Comparator Subsystem
 Eight Comparator
Subsystems (CMPSS)
 Each CMPSS has:
 Two analog comparators
 Two programmable 12-bit
DACs
 Two digital filters

Ramp generator
 Digital filter used to
remove spurious trip
signals (majority vote)
 Ramp generator used for
peak current mode control
 Ability to synchronize
with PWMSYNC event
CMPIN3P/ADCINB2
CMPIN3N/ADCINB
3
ADC-A
2
3
4
5
14
15
CMPIN1P/ADCINA2
CMPIN1N/ADCINA3
CMPIN2P/ADCINA4
CMPIN2N/ADCINA5
ADC-B
2
3
ADC-C
2
3
4
5
CMPIN6P/ADCINC2
CMPIN6N/ADCINC3
CMPIN5P/ADCINC4
CMPIN5
N/ADCINC5
ADC-D
0
1
2
3
CMPIN7P/ADCIND
0
CMPIN7
N/ADCIND1
CMPIN
8P/ADCIND
2
CMPIN8N/ADCIND3
CMPIN4P/ADCIN14
CMPIN4N/ADCIN15
The F2837xD includes eight independent Comparator Subsystem (CMPSS) modules that are
useful for supporting applications such as peak current mode control, switched-mode power,
power factor correction, and voltage trip monitoring. The Comparator Subsystem modules have
the ability to synchronize with a PWMSYNC event.
