4-64 4262930-Rev A
ELECTRICAL
4

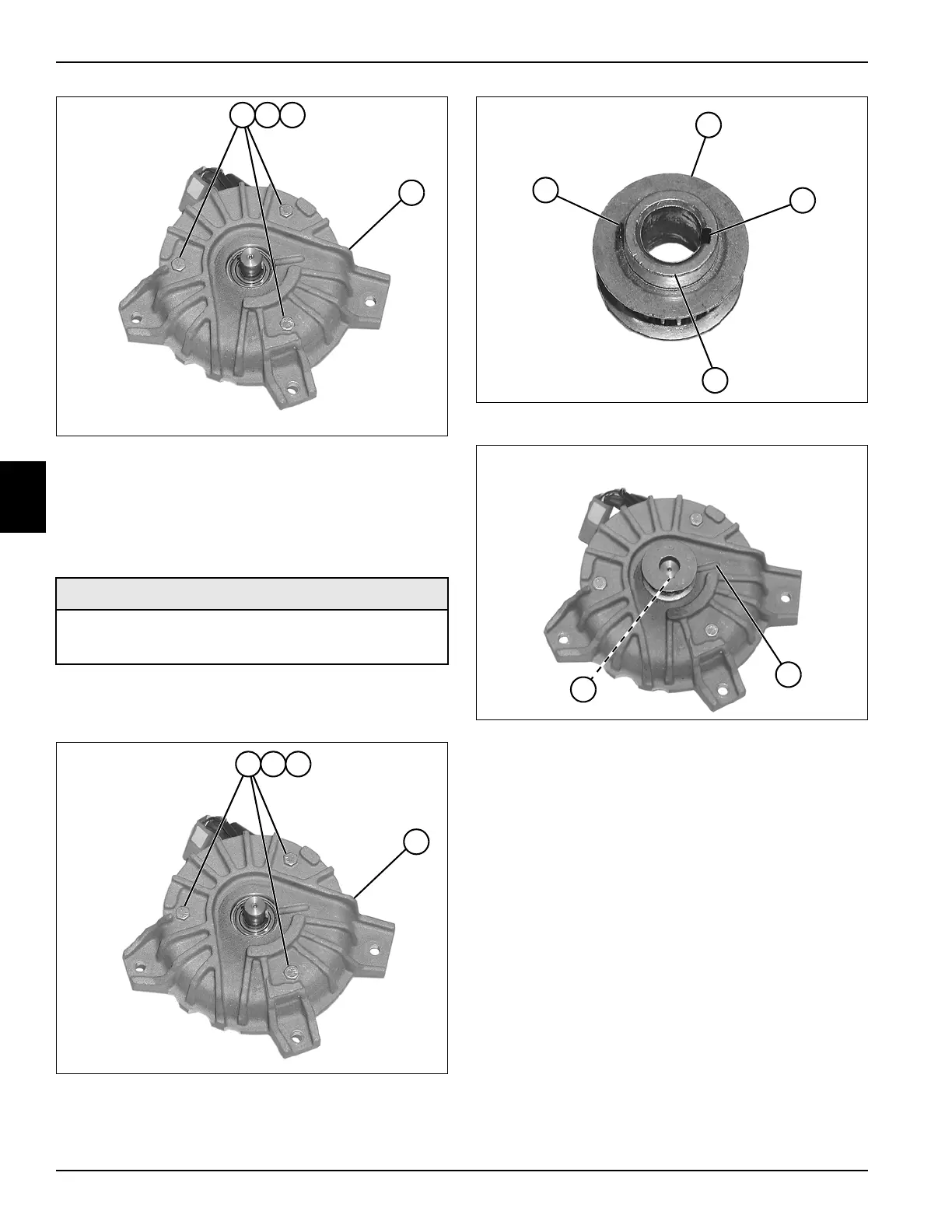

Figure 4-56
13. Remove screws (13), lock washers (14), nuts (15),
and motor mount assembly (16).
Installation
See Figures 4-57 through 4-61.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
Figure 4-57
2. Install motor mount assembly (4) using three screws
(1), lock washers (2), and nuts (3).
Figure 4-58
Figure 4-59
3. Apply Loctite
®
242 (Blue) Thread Sealant to set
screw (5) and install until flush with the inside
diameter of pulley (6).
4. Align relief (7) with keyway (9). Press pulley (6) onto
motor shaft until shoulder (8) bottoms out.
5. Align set screw (5) with groove (10). Tighten set
screw (5).
Required Materials
•Loctite
®
242 (Blue) Thread Sealant
• Dielectric Grease (Jacobsen PN 365422)
TN0630
13 14 15
16
TN0630
1 2 3
4
TN0632
5
6
7
8
TN0622
9
10
