Textron JACOBSEN Eclipse 2 - Right Reel Bearing Housing Assembly

CUTTING UNIT
4262930-Rev A 8-25
8
Right Reel Bearing Housing
Assembly
Removal

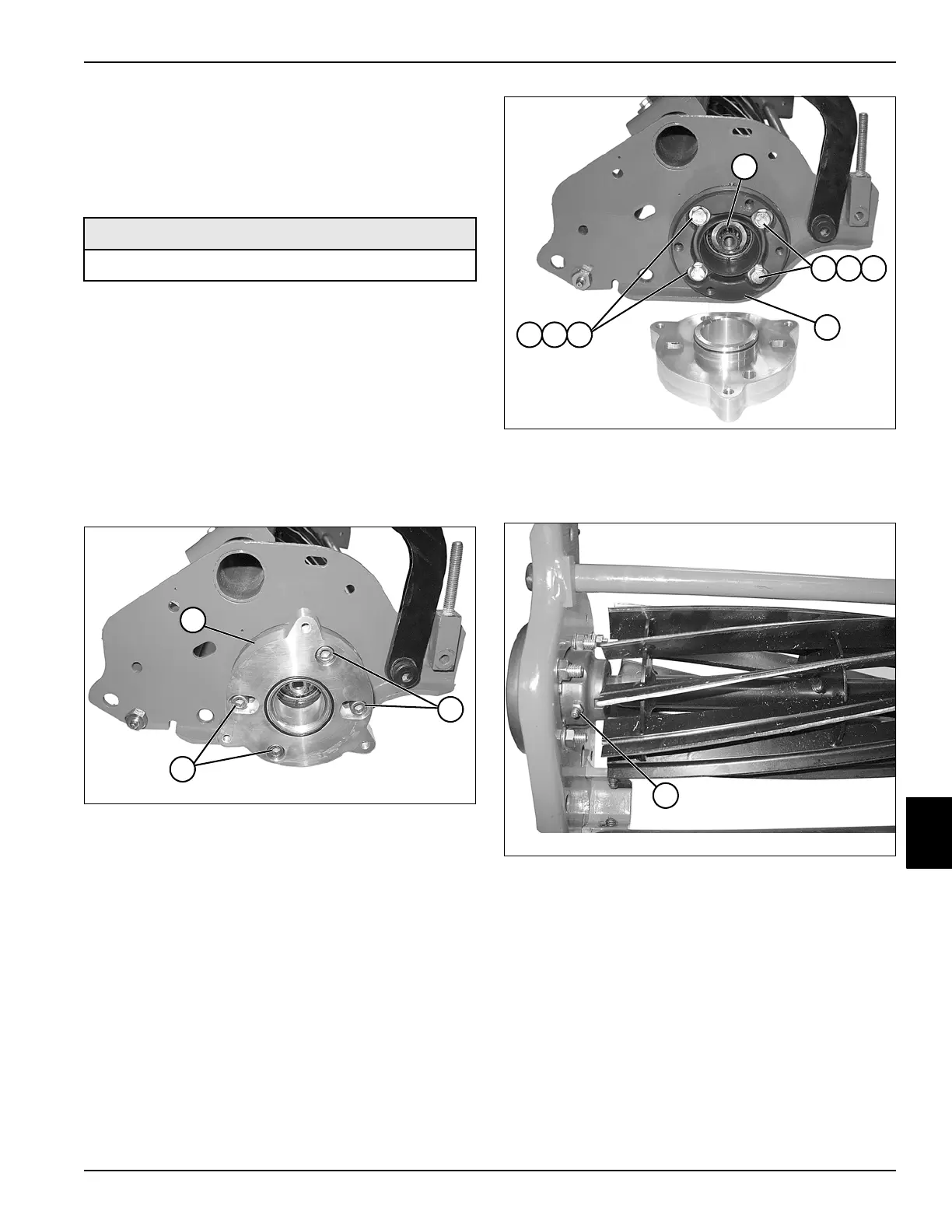

See Figures 8-33 through 8-35.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove cutting unit from mower. (See “Cutting Unit”
on page 8-20.)
3. Remove cutting unit front roller. (See “Cutting Unit
Front Roller” on page 8-33.)
4. Remove grass shield. (See “Grass Shield” on
page 8-21.)
5. Remove reel motor. (See “Reel Motor Test” on
page 4-53.)
Figure 8-33
6. Remove screws (2) and adapter plate (1).
Figure 8-34
7. Remove snap ring (3).
8. Remove screws (4), washers (5), and nuts (6).
Figure 8-35
9. Rotate reel bearing housing (7) to align grease fitting
(8) with the clearance hole in the frame, and remove
reel bearing housing from frame using reel bearing
housing puller (Jacobsen PN JAC5085).
10. Inspect the reel shaft for wear or damage. Replace
reel if needed. (See “Reel Assembly” on page 8-31.)
Required Tools or Equipment
Reel Bearing Housing Puller (Jacobsen PN JAC5085)
TN0907
1
2
2
TN0908
64 5
64 5
3
7
TN0906
8
