8-26 4262930-Rev A
CUTTING UNIT
8
Disassembly and Assembly

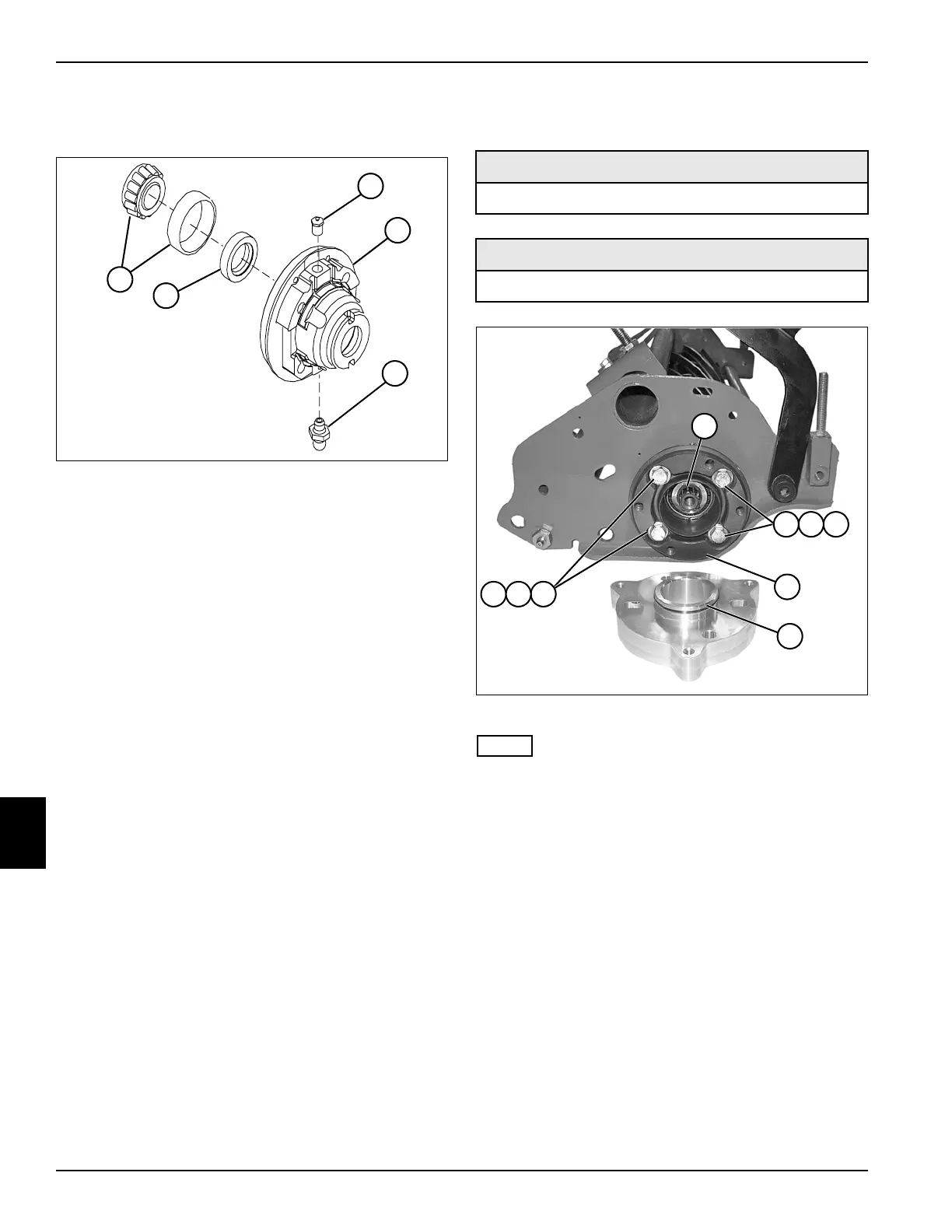

See Figure 8-36.
Figure 8-36
Assembly Notes
• Install a new grease seal (2).
• Inspect the bearing cup and cone (1) for wear or
damage. Replace as needed.
• Pack bearing (1) with grease that meets or exceeds
NLGI Grade 2 LB specifications before assembly.
• Apply grease that meets or exceeds NLGI Grade 2
LB specifications to the lips of the grease seal (2).
Installation
See Figures 8-37 and 8-38.
Figure 8-37
NOTE
Always use new O-rings and seals.
1. Install reel bearing housing assembly (5).
2. Install bearing using bearing assembly tool
(Jacobsen PN JAC5084) and install snap ring (1).
3. Install screws (2), washers (3), and nuts (4).
4. Install O-ring (6), and lubricate with grease that
meets or exceeds NLGI Grade 2 LB specifications.
1 Bearing Cup and Cone 4 Reel Bearing Housing
2 Grease Seal 5 Grease Fitting
3 Vent Fitting
5
TN0940
4
1
2
3
Required Tools or Equipment
Bearing Assembly Tool (Jacobsen PN JAC5084)
Required Materials
Loctite
®
242 (Blue) Thread Sealant
TN0908
42 3
42 3
1
5
6
