CUTTING UNIT
4262930-Rev A 8-27
8

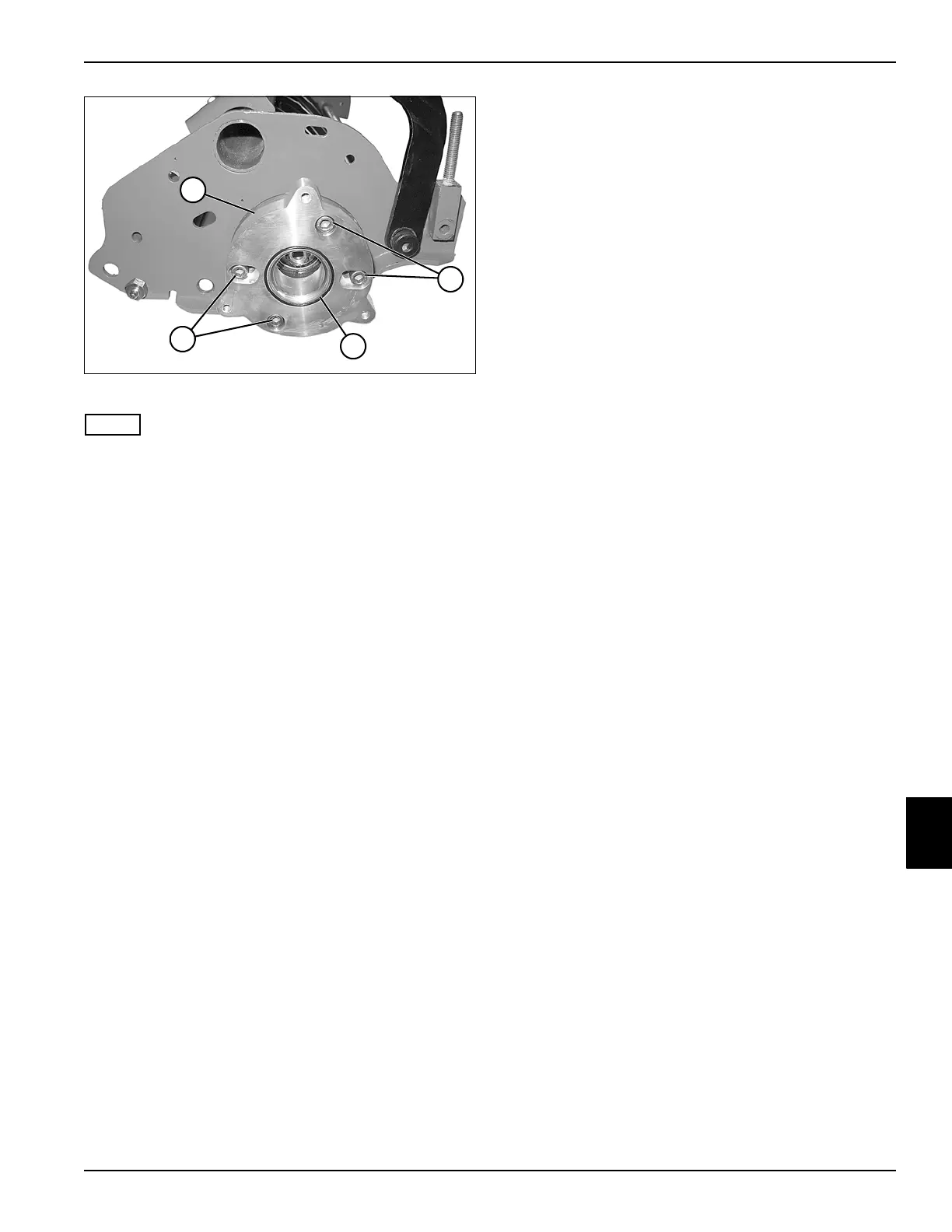

Figure 8-38
NOTE
Apply Loctite
®
242 (Blue) to the threads of screws (8)
before installing.
5. Install adapter plate (7) using screws (8).
6. Install O-ring (9), and lubricate with grease that
meets or exceeds NLGI Grade 2 LB specifications.
7. Install reel motor. (See “Reel Motor Test” on
page 4-53.)
8. Lubricate grease fitting with grease that meets or
exceeds NLGI Grade 2 LB specifications. Clean
grease fittings before lubricating and apply grease to
the fittings with a hand grease gun only. Pump the
gun slowly until a slight amount of pressure is felt,
then stop—do not over-grease. Do not use
compressed air gun.
9. Install grass shield. (See “Grass Shield” on
page 8-21.)
10. Install cutting unit front roller. (See “Cutting Unit Front
Roller” on page 8-33.)
11. Install cutting unit to mower. (See “Cutting Unit” on
page 8-20.)
TN0907
7
8
8
9
To Next Page
