6-8 4262930-Rev A
HANDLE AND CONTROLS
6
Handle and OPC Bail
Removal

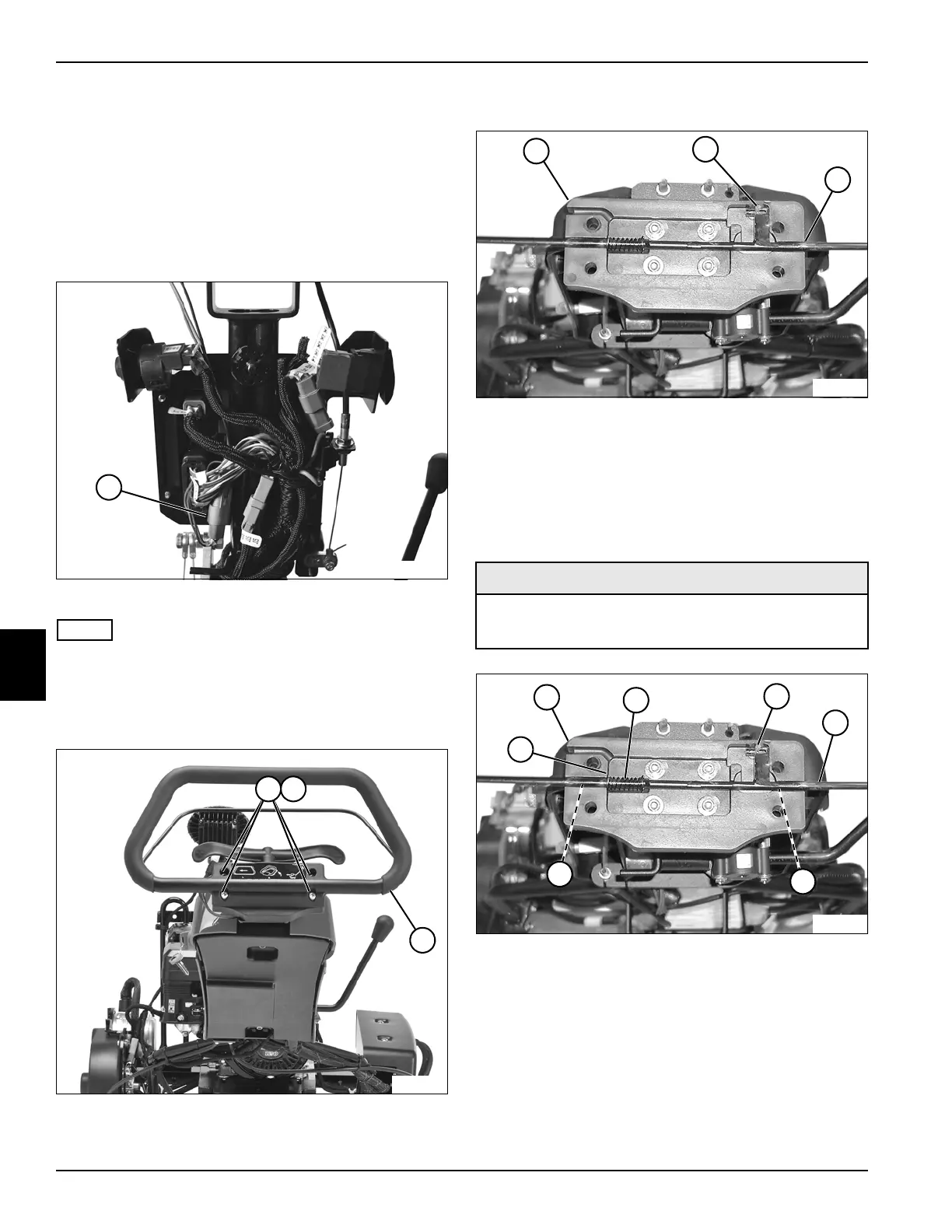

See Figures 6-15 through 6-17.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove handle cover. (See “Handle Cover” on
page 6-4.)
Figure 6-15
NOTE
Label all wires before disconnecting to ensure correct
installation.
3. Disconnect throttle potentiometer harness connector
(1).
Figure 6-16
4. Remove four nuts (2) and screws (3).
5. Remove handle assembly (4).
Figure 6-17
6. Disconnect cable end (6) from Operator Presence
Control (OPC) bail (7).
7. Remove OPC bail (7) from tilt plate (5).
Installation
See Figures 6-18 through 6-20.
Figure 6-18
1. Apply a thin film of Lubriplate
®
grease to OPC bail
grooves (5) of tilt plate (1) and spring (2) on OPC bail
(4).
2. Install end of cable (3) into slot in OPC bail (4) and
install OPC bail into tilt plate (1). Make sure end of
spring (2) is flush against edge of opening (6) in tilt
plate.
TN4629
1
TN4432
4
32
Required Materials
• Lubriplate
®
Grease
• Dielectric Grease (Jacobsen PN 365422)
TN0618
6
7
5
TN0618
1
2
3
5
4
5
6
