Main Control Unit
Removal and Installation

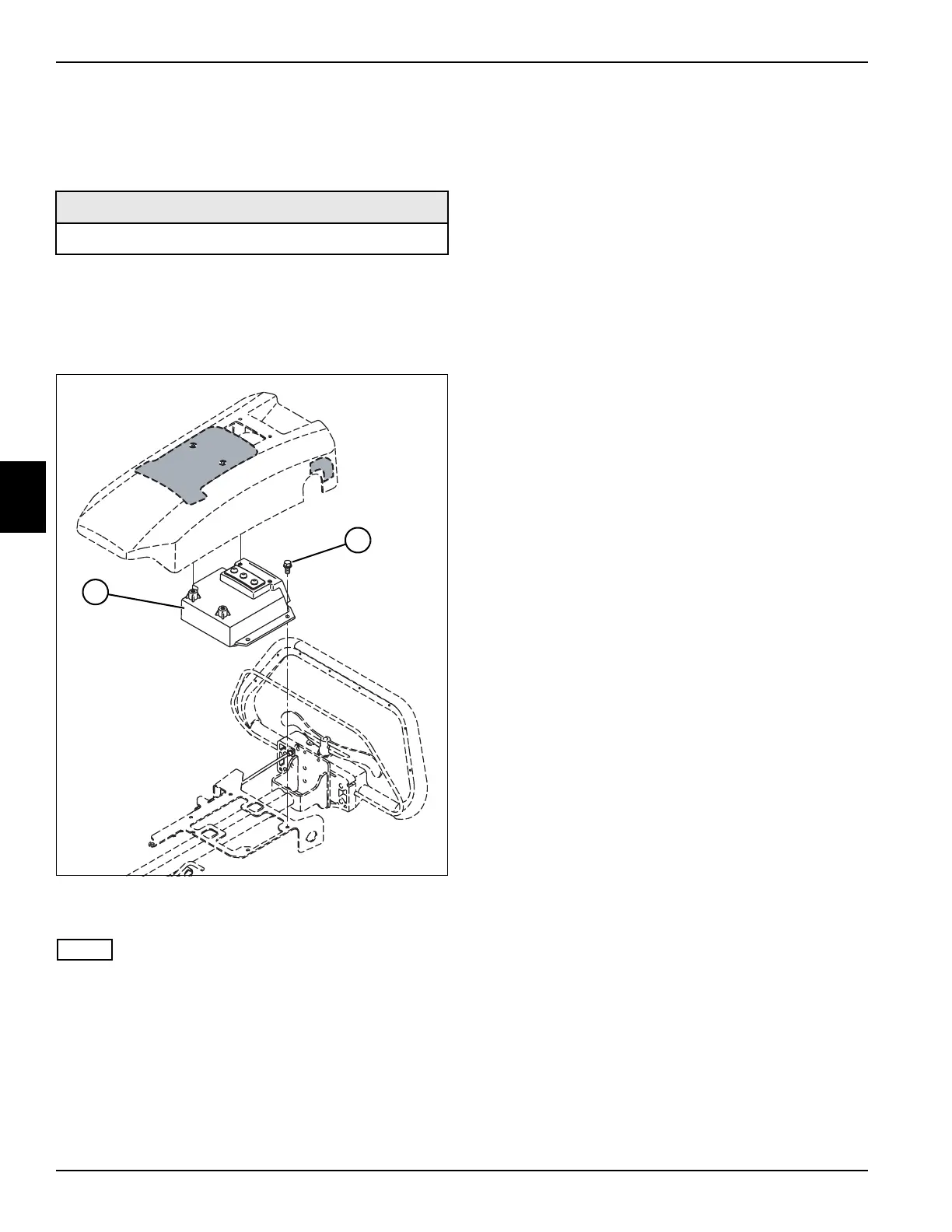

See Figure 4-63.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove handle cover. (See “Handle Cover” on
page 6-4.)
Figure 4-63
3. Remove four screws (2).
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire harness connectors from main
control unit (1).
Installation Notes
• Install main control unit by reversing the order of
removal.
• Apply dielectric grease (Jacobsen PN 365422) to any
connectors removed.
Required Materials
Dielectric Grease (Jacobsen PN 365422)
TN4439
