Traction Motor
Removal

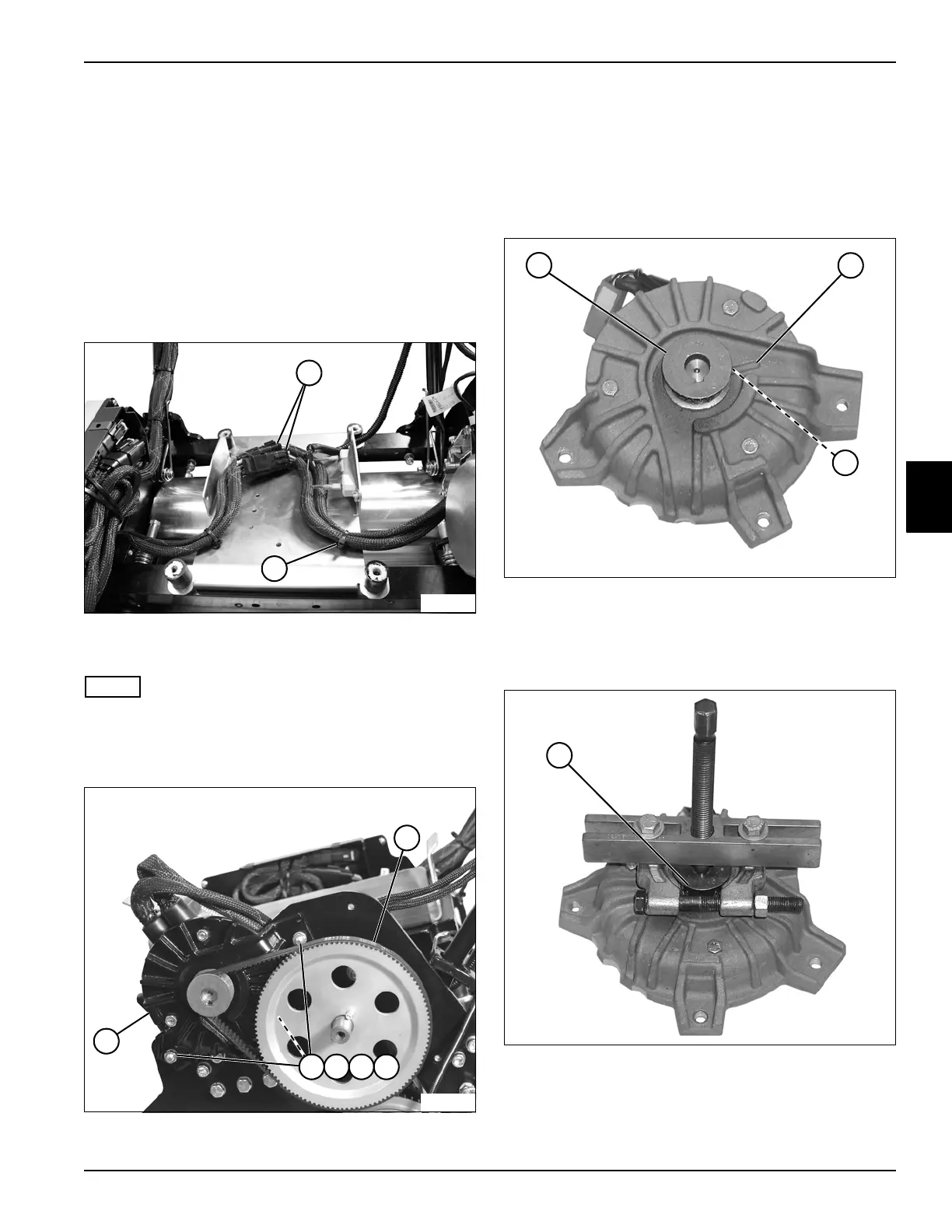

See Figures 4-52 through 4-56.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. For battery pack powered mowers, remove power
module. (See “Battery Tray and Power Module
Mount” on page 4-69.)
3. For gen-set powered mowers, remove engine. (See
“Engine” on page 3-4.)
Figure 4-52
4. Cut cable tie (2).
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Disconnect traction motor harness connectors (1).
Figure 4-53
6. Remove traction drive belt cover. (See “Traction
Drive Belt Cover” on page 5-7.)
7. Remove three nuts (4), lock washers (5), flat
washers (6), and screws (7).
8. Remove transfer belt (3).
9. Remove traction motor and mount assembly (8).
Figure 4-54
10. Rotate pulley (9) until set screw (11) is aligned with
groove (10).
11. Loosen set screw (11).
Figure 4-55
12. Remove pulley (12) using a knife-edge puller.
TN4630
1
2
TN4636
3
8
4 5 6 7
TN0622
9
10
11
TN0623
12
