ACCESSORIES
4262930-Rev A 10-17
10
Push Brush Assembly
Disassembly and Assembly

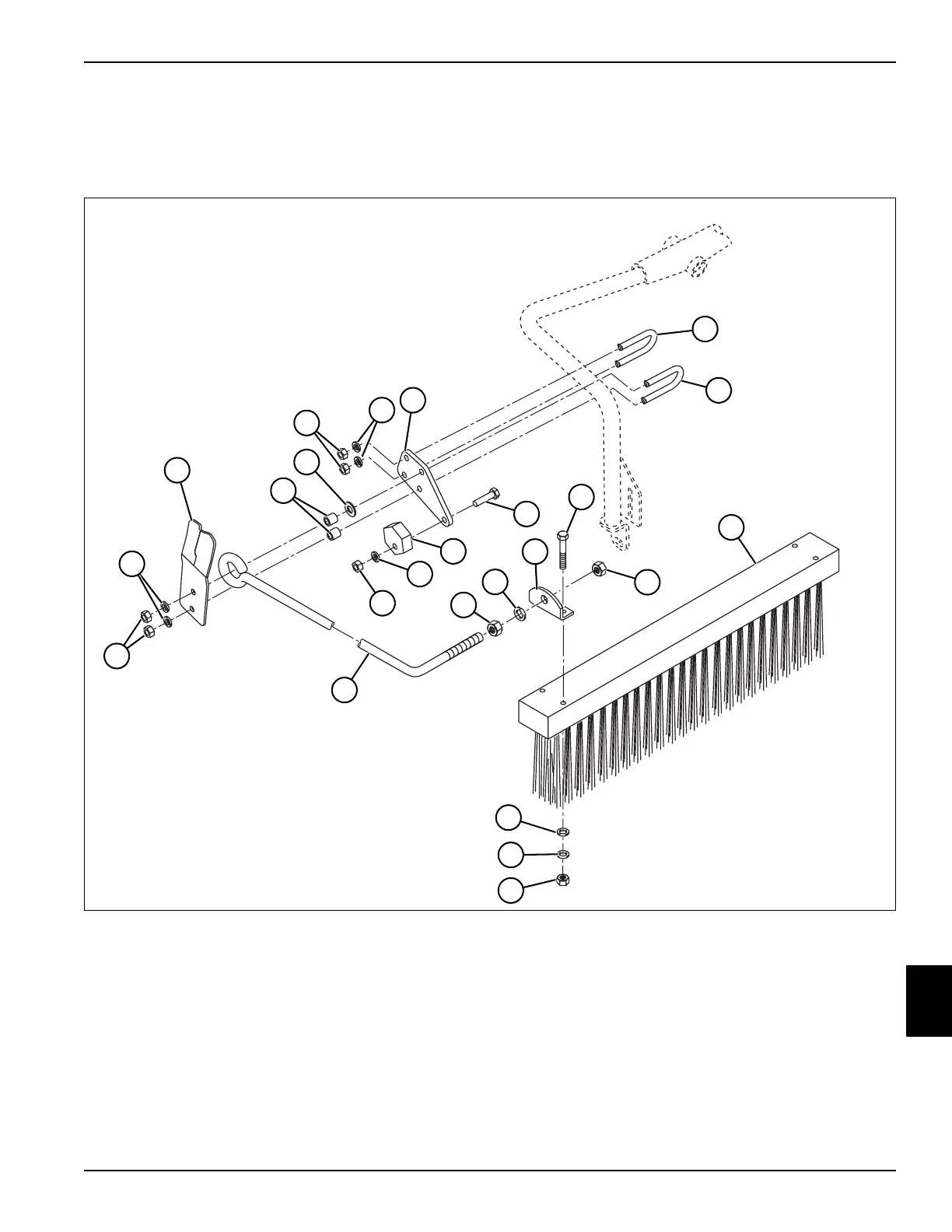

See Figure 10-27.
Figure 10-27
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove transport wheels (if equipped). Retract the
kickstand and allow the mower to rest on the traction
roller.
3. Remove nut (20) from brush mounting rod (15) on
each side of brush (21) and remove brush from
mower.
4. Remove lock washer (17) and nut (16) from both
brush mounting rods (15).
1 Nut (4) 6 Nut (4) 11 Screw (2) 16 Nut (2) 21 Brush
2 Lock Washer (4) 7 Lock Washer (4) 12 Cam (2) 17 Lock Washer (2) 22 Flat Washer (4)
3 Flat Spring (2) 8 Push Brush Mount (2) 13 Lock Washer (2) 18 Mounting Plate (2) 23 Lock Washer (4)
4 Spacer (4) 9 U-Bolt (2) 14 Nut (2) 19 Screw (4) 24 Nut (4)
5 Flat Washer (2) 10 U-Bolt (2) 15 Brush Mounting Rod (2) 20 Nut (2)
TN4520
19
20
18
17
16
22
23
24
21
3
8
5
4
1
2
15
11
12
13
14
6
7
9
10
