Textron JACOBSEN Eclipse 2 - Harness Connector Identification

ELECTRICAL
4262930-Rev A 4-9
4
Harness Connector Identification
See Figure 4-3.

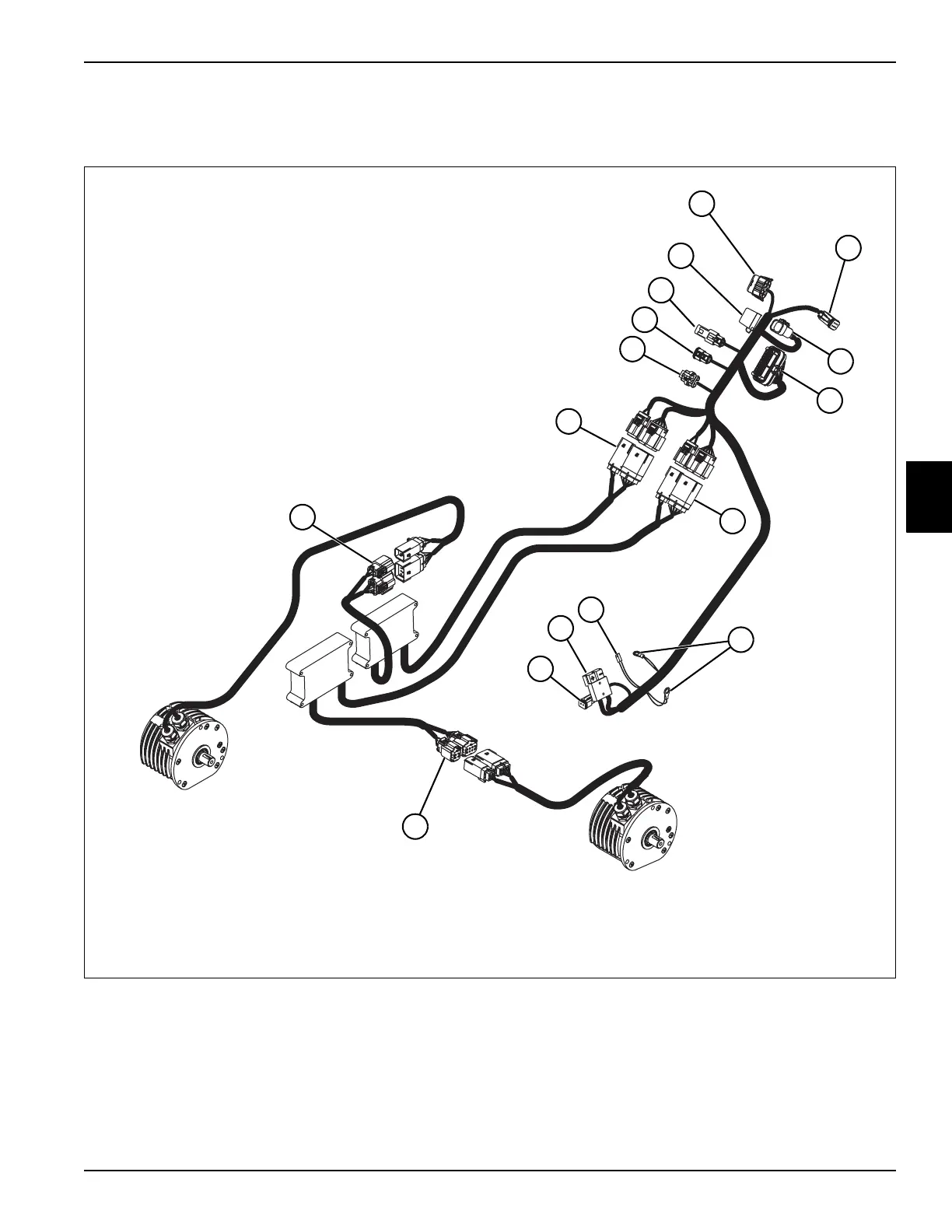

Figure 4-3
1 Mow Switch Connector (SW1) 9 Reel Motor Controller Connectors (J6 and J7)
2 Key Switch Connector (SW2) 10 Traction Motor Controller Connectors (J8 and J9)
3 Main Control Unit Connector (J1) 11 Ground Terminals (GC1 and GC2)
4 Main Control Unit Connector (J2) 12 Engine On/Off Switch Connector (J22)
5 30A Fuse (F2) 13 Battery Pack/Gen-Set Connector (J23)
6 CAN Diagnostic Connector (J14) 14 Light Kit Connector (J15)
7 Throttle Potentiometer Connector (J3) 15 Traction Motor Connectors (J12 and J13)
8 Bail Potentiometer Connector (J20) 16 Reel Motor Connectors (J10 and J11)
TN4430
1
2
5
3
15
4
16
6
7
8
9
10
11
12
13
14
