CUTTING UNIT
4262930-Rev A 8-21
8
12. Remove cutting unit.
Installation Note
Install cutting unit by reversing the order of removal.
Grass Shield
Removal and Installation
See Figure 8-25.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)

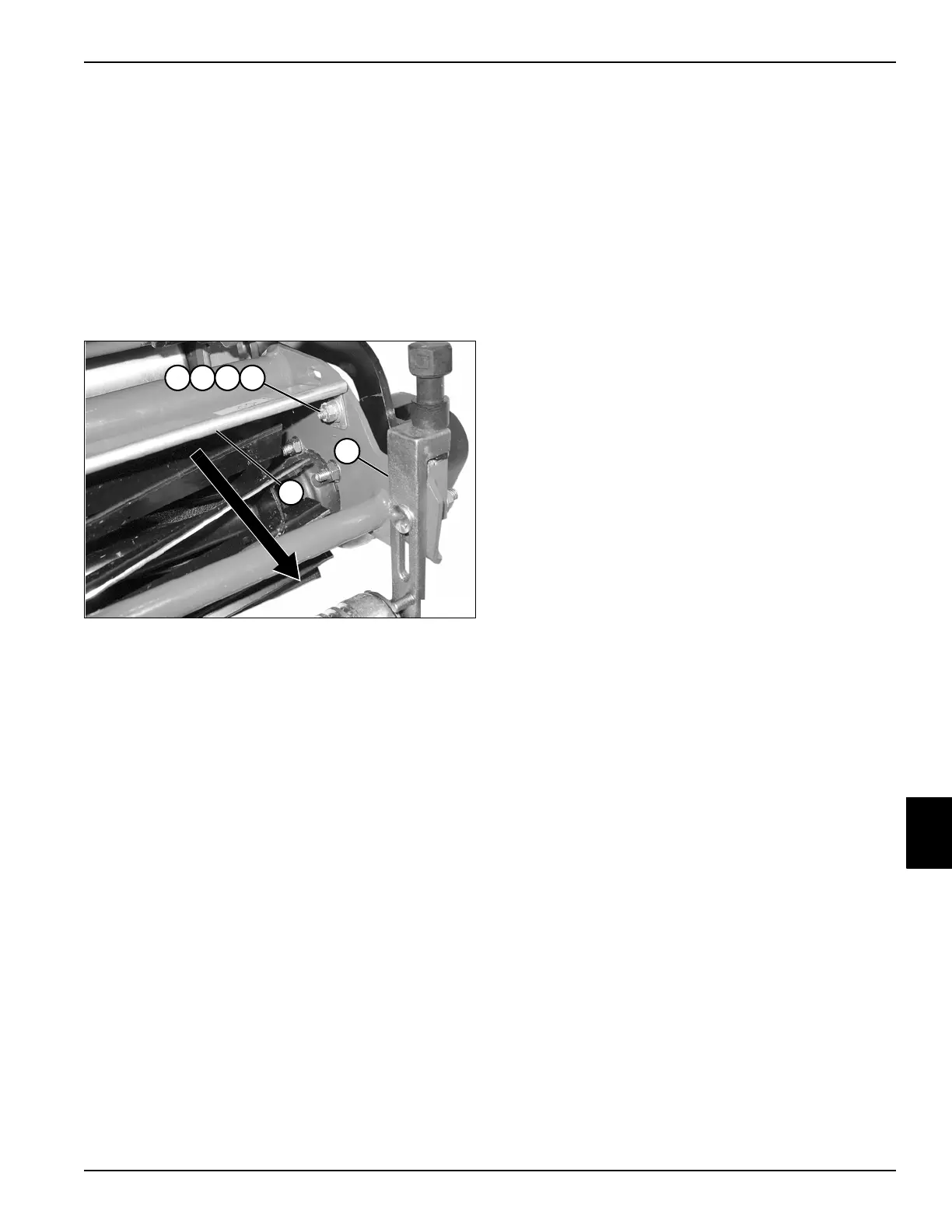

Figure 8-25
2. Remove the cutting unit front roller (5). (See “Cutting
Unit Front Roller” on page 8-33.)
3. Remove nut (1), lock washer (2), flat washer (3), and
screw (4) from each side of the mower.
4. Pull grass shield (6) forward and remove from
mower.
Installation Note
Install grass shield by reversing the order of removal.
TN0901
1 2 3 4
5
6
To Next Page
