ELECTRICAL
4
Repair
Battery Pack
Removal and Installation
See Figure 4-37.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)

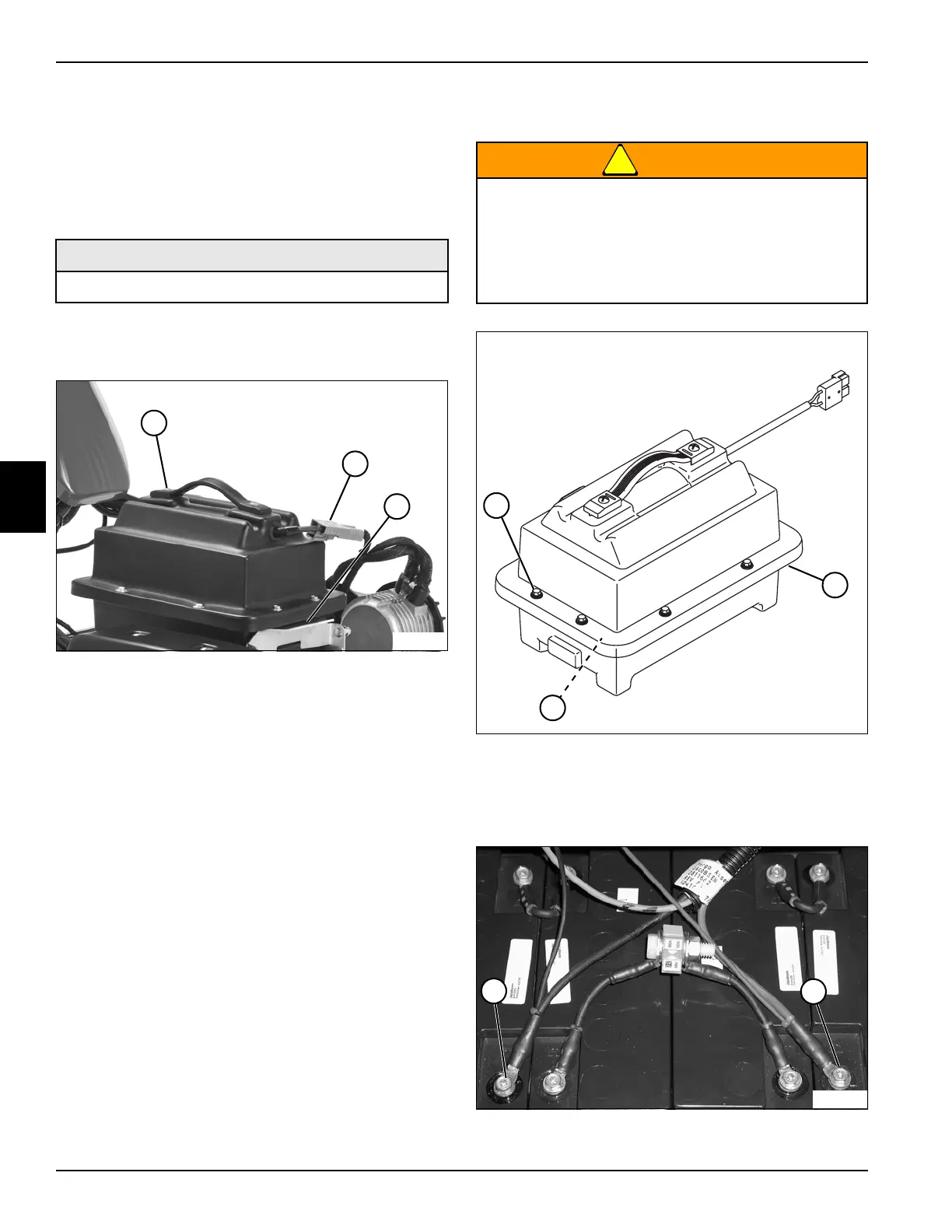

Figure 4-37
2. Disconnect battery connector (2).
3. Press down on spring plate (3) and remove battery
pack (1).
Installation Note
• Install battery pack by reversing the order of removal.
Disassembly
See Figures 4-38 through 4-40.
!
WARNING
Figure 4-38
1. Remove eight screws (1) and straps (3).
2. Open battery pack cover (2). Do not remove at this
time.
Figure 4-39
Required Materials
Dielectric Grease (Jacobsen PN 365422)
TN4431
1
3
2
Always disconnect the negative terminal first,
and the positive terminal last. Connect the
positive terminal first, and the negative terminal
last. Use care when testing or working around
live circuits to prevent arcing. Arcing could result
in death or serious injury.
TN4437
1
2
3
TN0674
4
5
