POWER TRAIN
4262930-Rev A 5-13
5

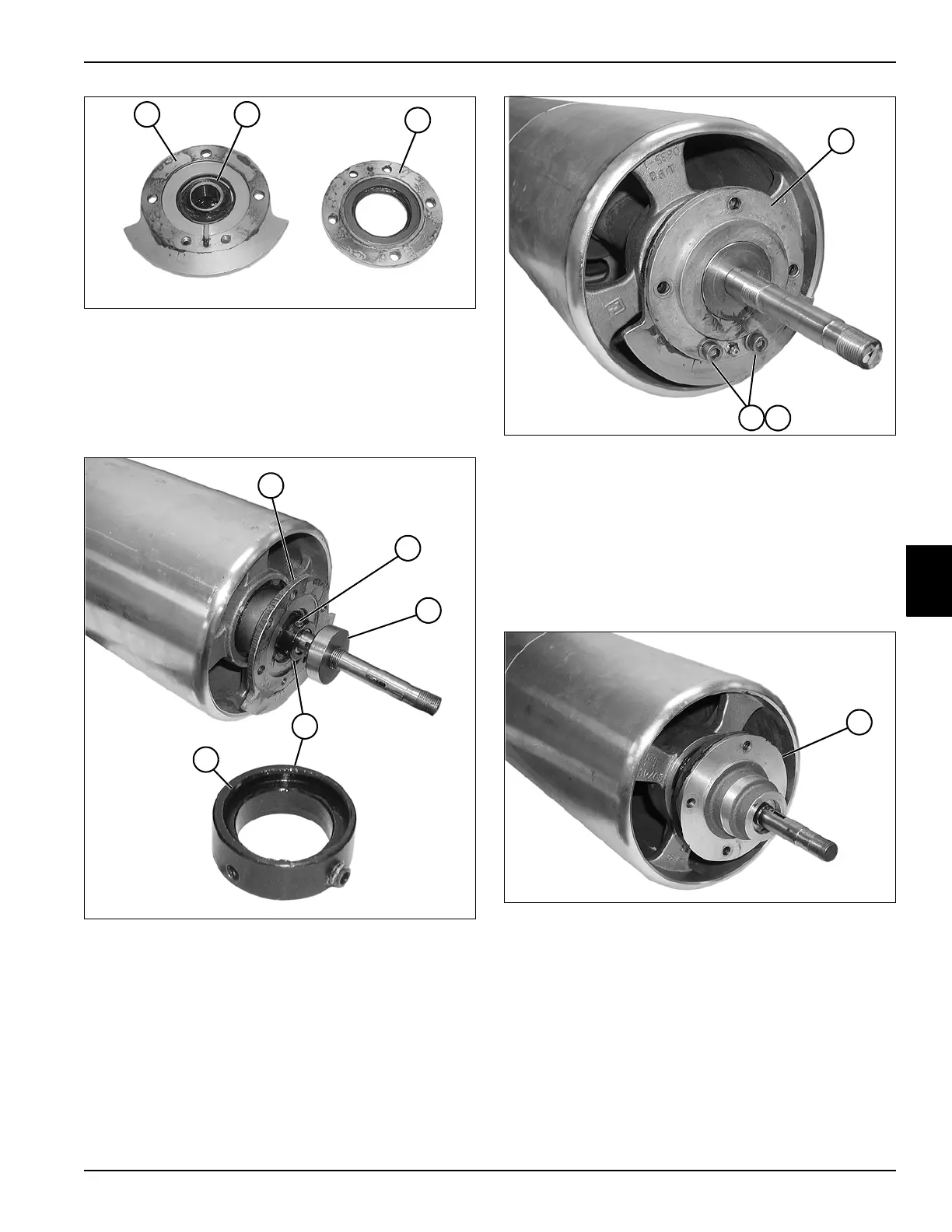

Figure 5-27
3. Clean the mating surfaces of the seal cover (7) and
bearing housing (5), and apply a thin film of Loctite
®
Aviation Gasket Sealer to the mating surfaces.
4. Pack bearing (6) with grease that meets or exceeds
NLGI Grade 2 LB specifications before installation.
Figure 5-28
5. Install bearing housing (8).
6. Install locking collar (11) with the recessed side (12)
toward the bearing. Tighten the set screw (9).
7. Install spacer (10).
Figure 5-29
8. Install seal cover (13) using two screws (14) and lock
washers (15).
Traction Drum Right Bearing Housing
Removal
See Figures 5-30 through 5-34.
Figure 5-30
1. Remove the seal cover (1).
TN0249
5
6
7
12
TN0236, TN0240
10
8
9
11
TN0235
13
14
15
1
TN0241
