POWER TRAIN
5

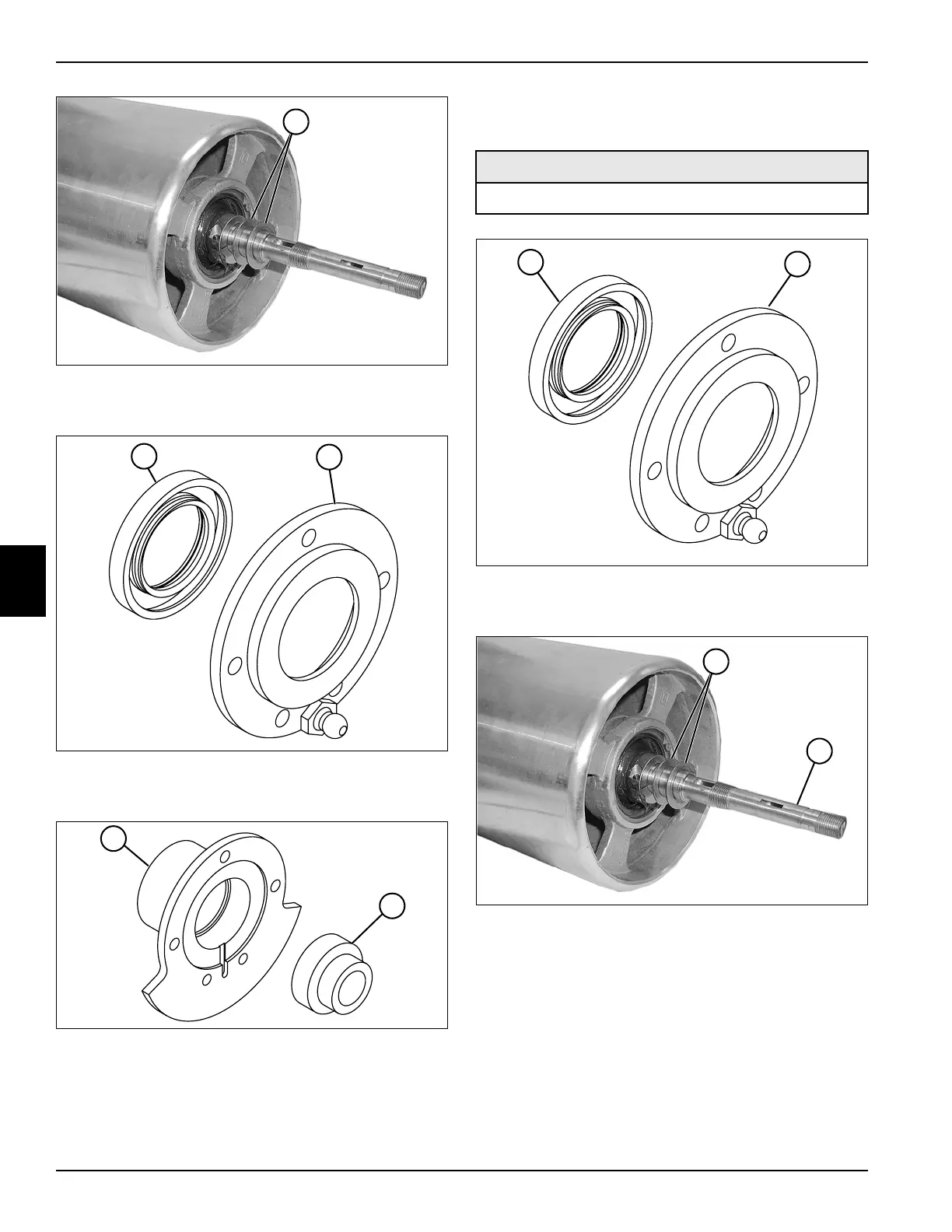

Figure 5-22
5. Remove two washers (8).
Figure 5-23
6. Remove grease seal (9) from the seal cover (10).
Figure 5-24
7. Inspect bearing (12) for wear or damage. Remove
the bearing from the bearing housing (11) only if it is
necessary to replace the bearing.
Installation
See Figures 5-25 through 5-29.
Figure 5-25
1. Install a new grease seal (1) in the seal cover (2).
Figure 5-26
2. Install two washers (3) on the traction drum shaft (4).
TN0237
8
9
TN0238
10
11
TN0239
12
Required Materials
Loctite
®
Aviation Gasket Sealer (Loctite PN 30516)
1
TN0238
2
TN0237
3
4
