Textron JACOBSEN Eclipse 2 - Traction Drum Left Bearing Housing

POWER TRAIN
4262930-Rev A 5-11
5

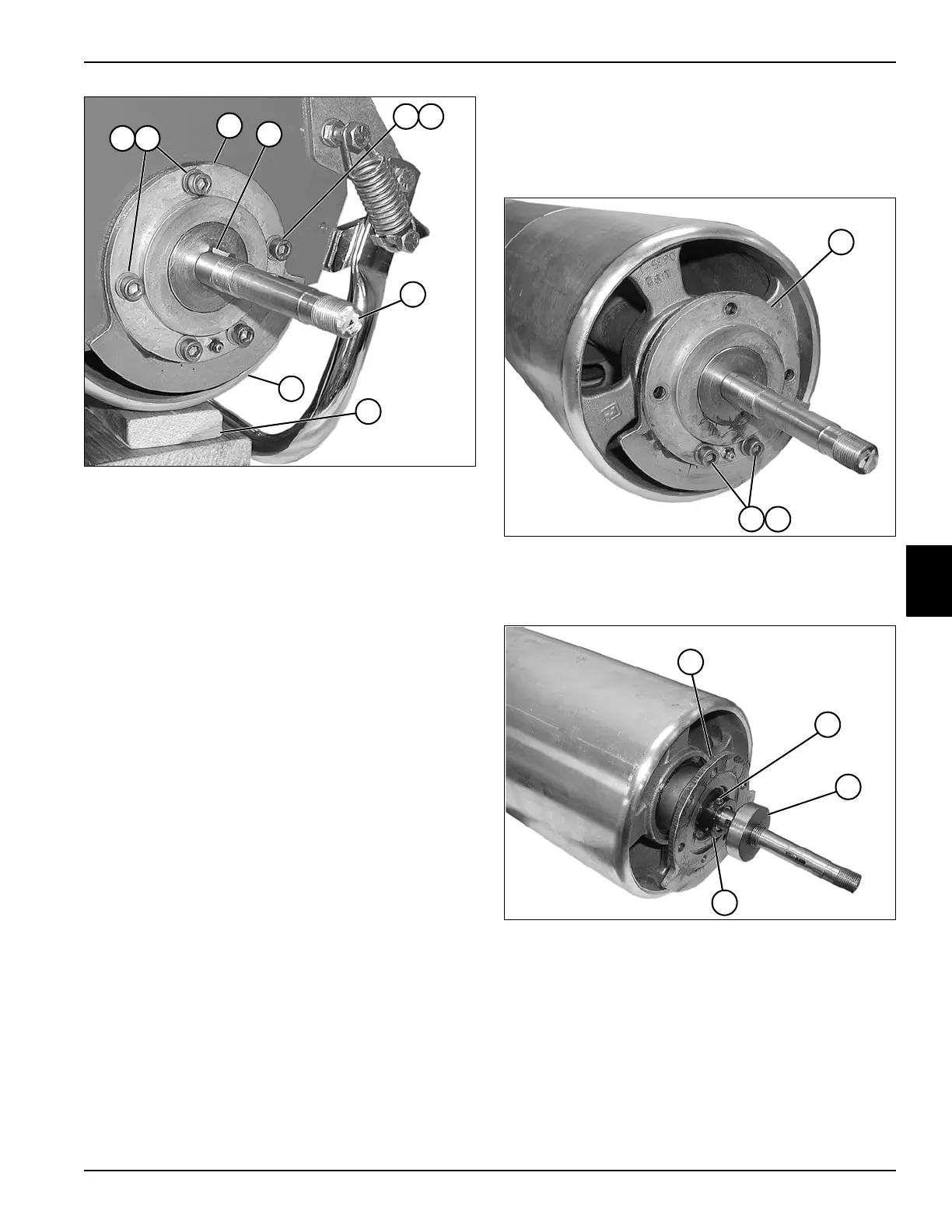

Figure 5-19
10. Remove key (20) from traction drum shaft (21).
11. Remove three screws (17) and lock washers (18)
from bearing housing (19).
12. Remove support blocks (23) and lower the traction
drum assembly (22).
13. Lift the mower and remove the traction drum
assembly (22).
Installation Note
Install traction drive drum and bearing housing assembly
by reversing the order of removal.
Traction Drum Left Bearing Housing
Removal
See Figures 5-20 through 5-24.
Figure 5-20
1. Remove two screws (2) and lock washers (3), and
remove the seal cover (1).
Figure 5-21
2. Remove spacer (6).
3. Loosen set screw (5) and remove locking collar (7).
4. Remove bearing housing (4).
TN0822
21
20
22
19
1817
1817
23
TN0235
1
2
3
TN0236
6
4
5
7
