3-4 4262930-Rev A
ENGINE
3
Repair
Engine
Removal

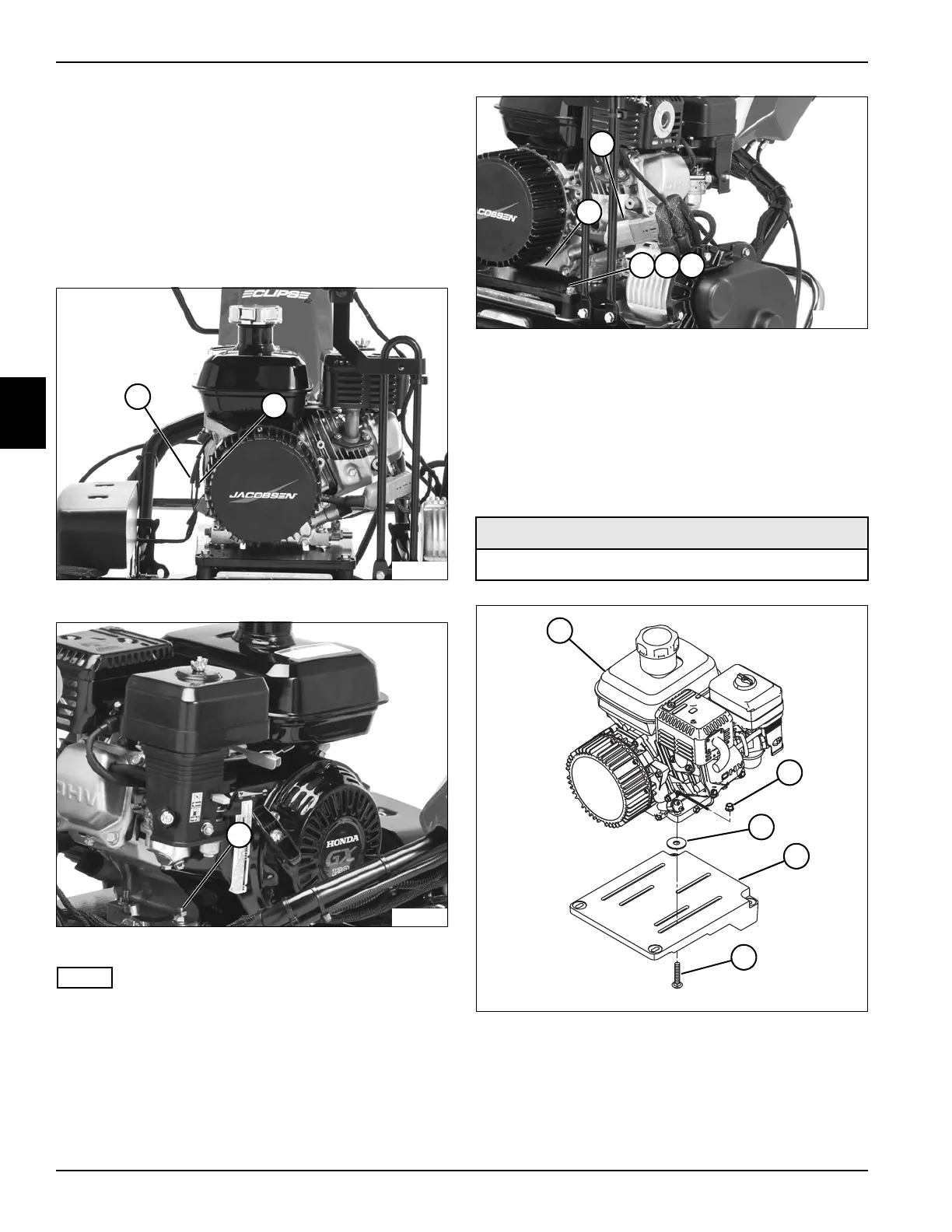

See Figures 3-1 through 3-3.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
Figure 3-1
Figure 3-2
NOTE
Label all wires before disconnecting to ensure correct
installation.
2. Disconnect engine harness wire connectors
(1 and 2).
3. Disconnect ground wire ring terminal (3).
Figure 3-3
4. Disconnect gen-set harness connector (4).
5. Remove four screws (5), lock washers (5), and flat
washers (6).
6. Remove engine and mount plate (8) as an assembly.
Disassembly and Assembly
See Figure 3-4.
Figure 3-4
TN4401
1
2
TN4395
3
Required Materials
Dielectric Grease (Jacobsen PN 365422)
1 Engine Assembly 4 Power Source Mount
2 Flange Nut (4) 5 Carriage Bolt (4)
3Flat Washer (4)
TN4397
5
4
8
6 7
TN4402
1
2
3
5
4
