Maintenance Mode

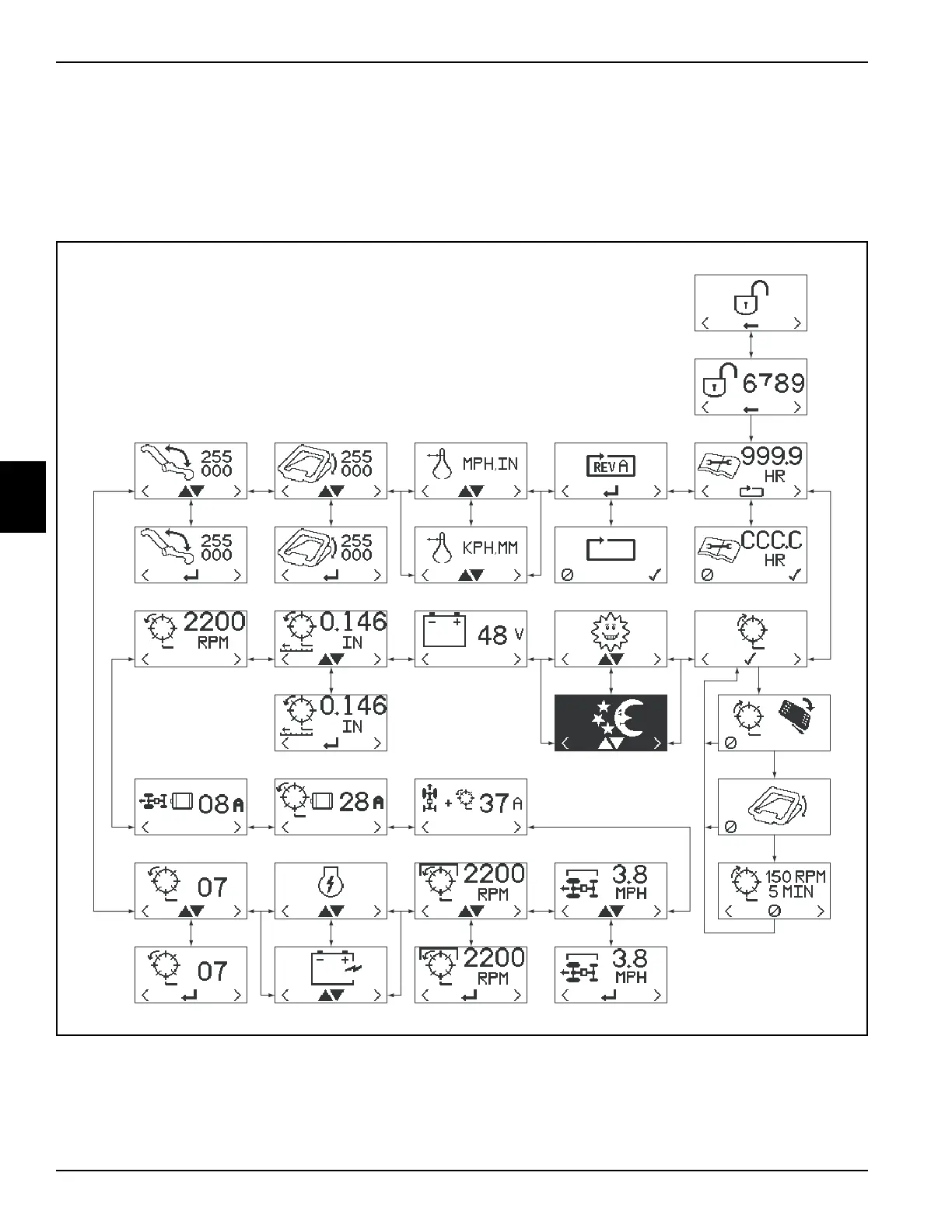

See Figure 4-20.
Maintenance Mode is used to set and adjust all functional values for the Eclipse Mower. The LCD displays available in
Maintenance Mode are maintenance hours, backlap, system voltage, travel speed, set FOC, reel speed, traction motor
current draw, reel motor current draw, total motor current draw, set mow speed, set reel speed, set power source, set
number of reel blades, calibrate speed paddle, calibrate bail lever, set display units, and factory reset.
Figure 4-20
Refer to Operator Mode for descriptions of Daytime/Nighttime Illumination, System Voltage, and Fixed Reel Speed
screens. (See “Operator Mode” on page 4-38.)
