Textron JACOBSEN Eclipse 2 - 30 A Fuse Test; Battery Pack Fuse Test

4-50 4262930-Rev A
ELECTRICAL
4
30A Fuse Test

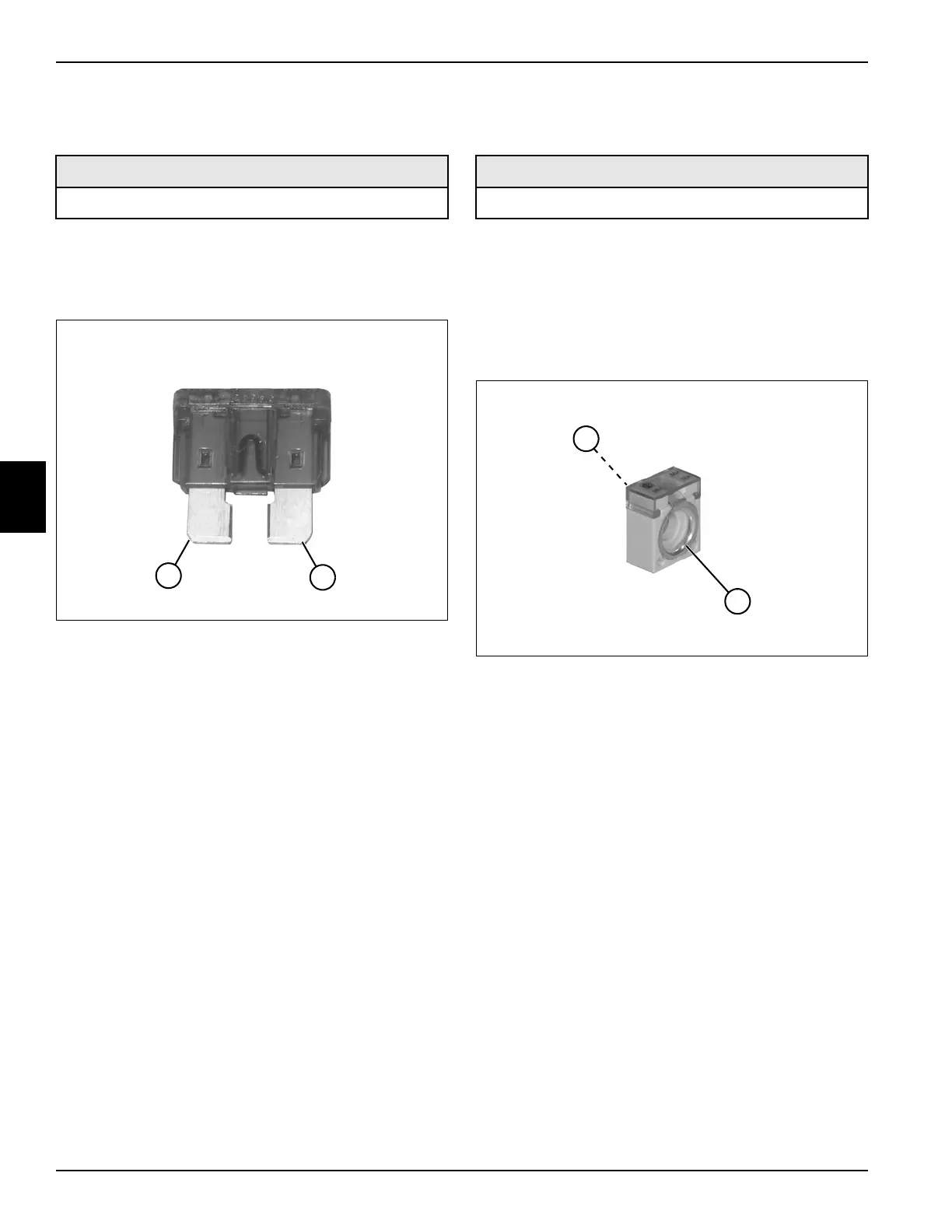

See Figure 4-29.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove 30A fuse. (See “30A Fuse” on page 4-60.)
Figure 4-29
3. Set the meter to read ohms.
4. Touch meter leads to each other and confirm a
resistance value of 0.0 ohms.
5. Measure the resistance between terminals (1 and 2).
Is the resistance value 0.02 ohm or less?
YES Fuse is good.
NO Fuse is faulty; replace the fuse.
Battery Pack Fuse Test
See Figure 4-30.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove battery pack. (See “Battery Pack” on
page 4-56.)
3. Remove battery pack fuse. (See “Battery Pack Fuse”
on page 4-58.)
Figure 4-30
4. Measure the resistance between ring terminals
(1 and 2).
Is the resistance value 0.02 ohm or less?
YES Battery pack fuse is good.
NO Battery pack fuse is faulty; replace the
battery pack fuse.
Required Tools or Equipment
Digital Multimeter or Ohmmeter
TN2742
1
2
Required Tools or Equipment
Digital Multimeter, Ohmmeter, or Continuity Tester
TN0678
2
1
