Textron JACOBSEN Eclipse 2 - Page 122

5-14 4262930-Rev A
POWER TRAIN
5

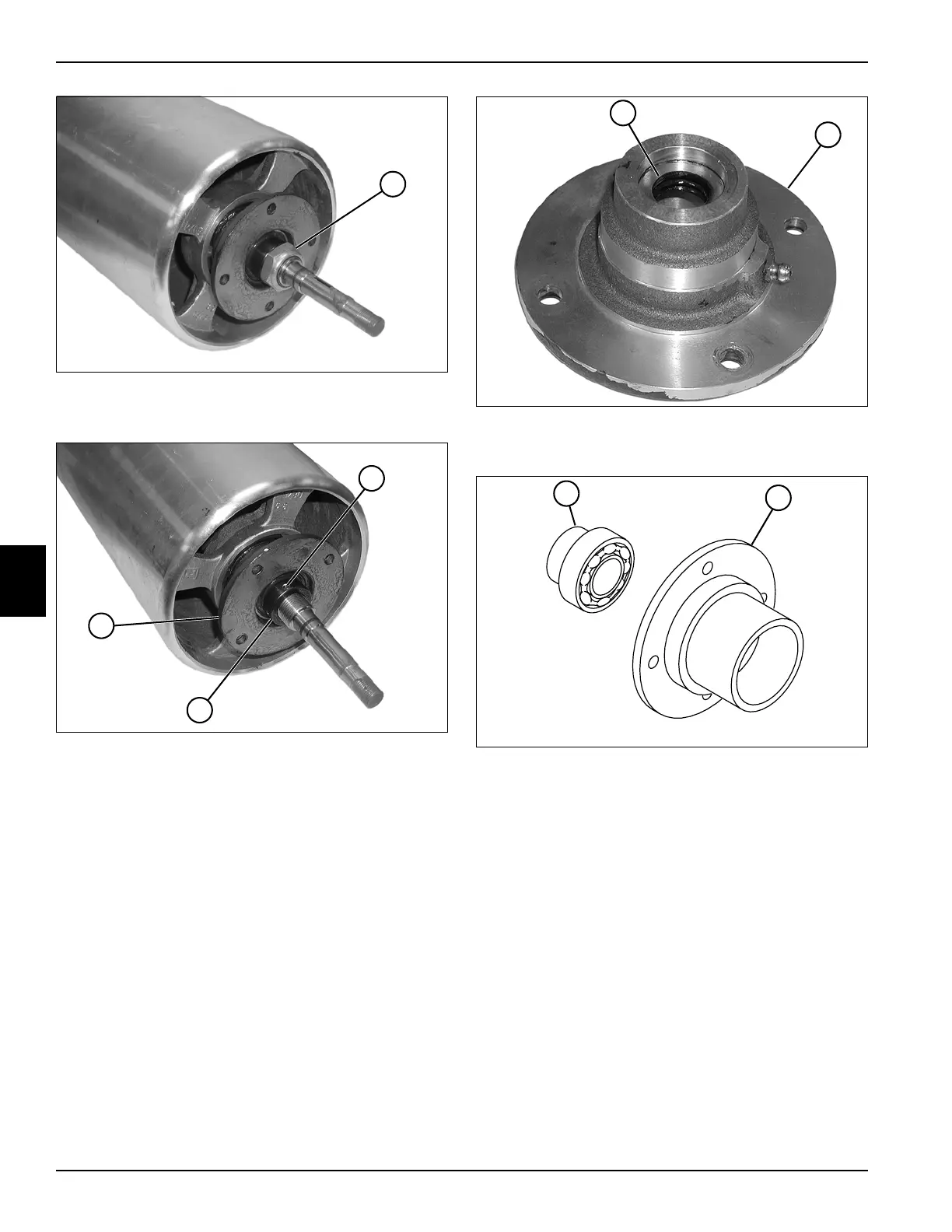

Figure 5-31
2. Remove nut (2).
Figure 5-32
3. Loosen set screw (3) and remove the locking collar
(4).
4. Remove bearing and housing assembly (5).
Figure 5-33
5. Remove grease seal (6) from the seal cover (7).
Figure 5-34
6. Inspect bearing (8) for wear or damage. Remove the
bearing from the bearing housing (9) only if it is
necessary to replace the bearing.
2
TN0242
3
TN0243
4
5
TN0244
6
7
8
TN0247
9
