Installation

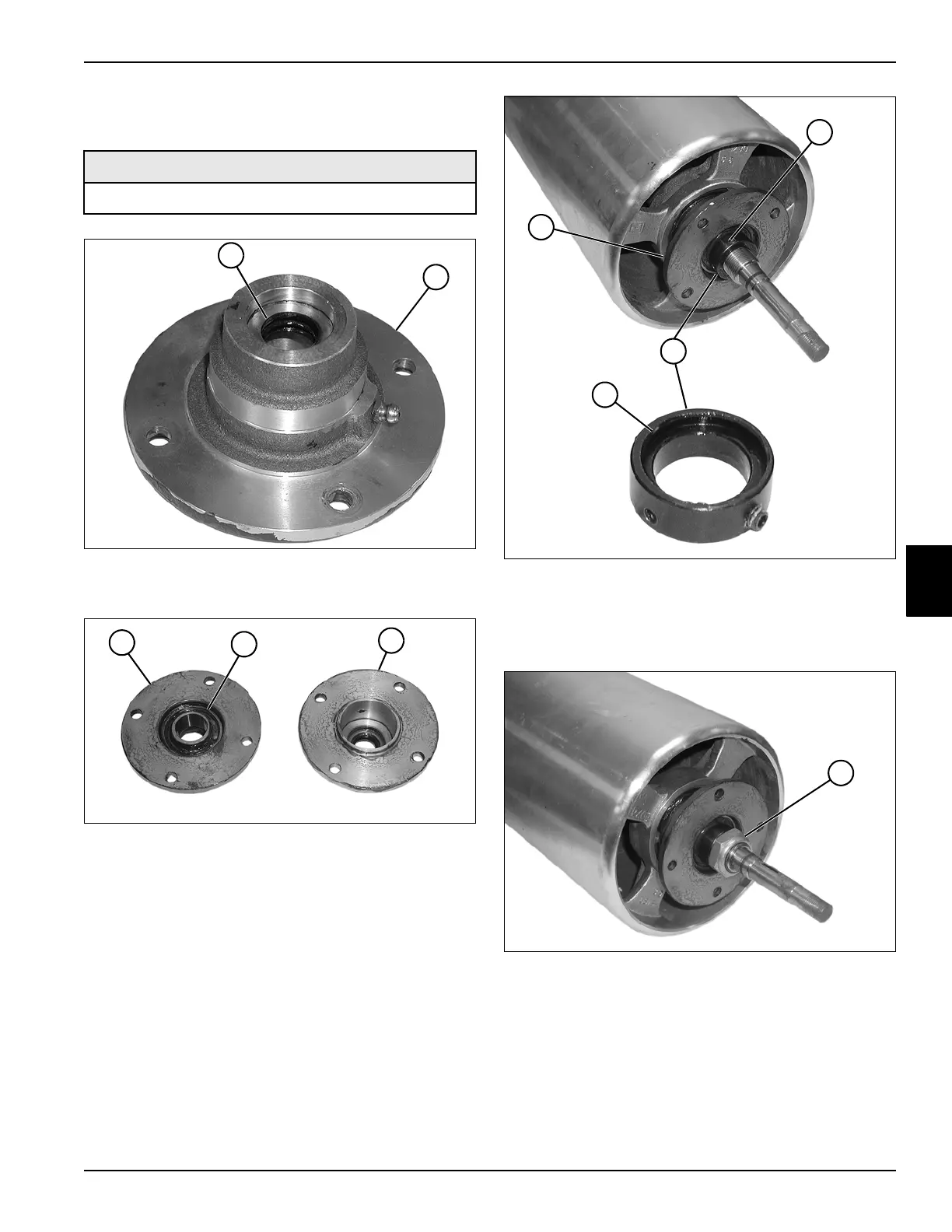

See Figures 5-35 through 5-39.
Figure 5-35
1. Install a new grease seal (1) in the seal cover (2).
Figure 5-36
2. Clean the mating surfaces of the seal cover (5) and
bearing housing (3), and apply a thin film of Loctite
®
Aviation Gasket Sealer to the surfaces.
3. Pack bearing (4) with grease that meets or exceeds
NLGI Grade 2 LB specifications before installation.
Figure 5-37
4. Install bearing and housing assembly (6).
5. Install locking collar (8) with the recessed side (9)
toward the bearing. Tighten the set screw (7).
Figure 5-38
6. Install nut (10). Tighten until nut just contacts
bearing.
Required Materials
Loctite
®
Aviation Gasket Sealer (Loctite PN 30516)
TN0244
1
2
TN0250
3
4
5
TN0243, TN0240
9
8
6
7
10
TN0242
