NOTE
Label all wires before disconnecting to ensure correct
installation.
3. Disconnect main harness negative lead (4).
4. Disconnect main harness positive lead (5).
Figure 4-40
5. Disconnect battery gauge positive leads (6).
6. Disconnect battery gauge negative lead (7).
7. Disconnect battery gauge signal wire lead (8).
8. Remove battery pack cover (9).
Disassembly Note
Disconnect remaining wire leads, as needed, to service
individual batteries.
Assembly
See Figure 4-41.

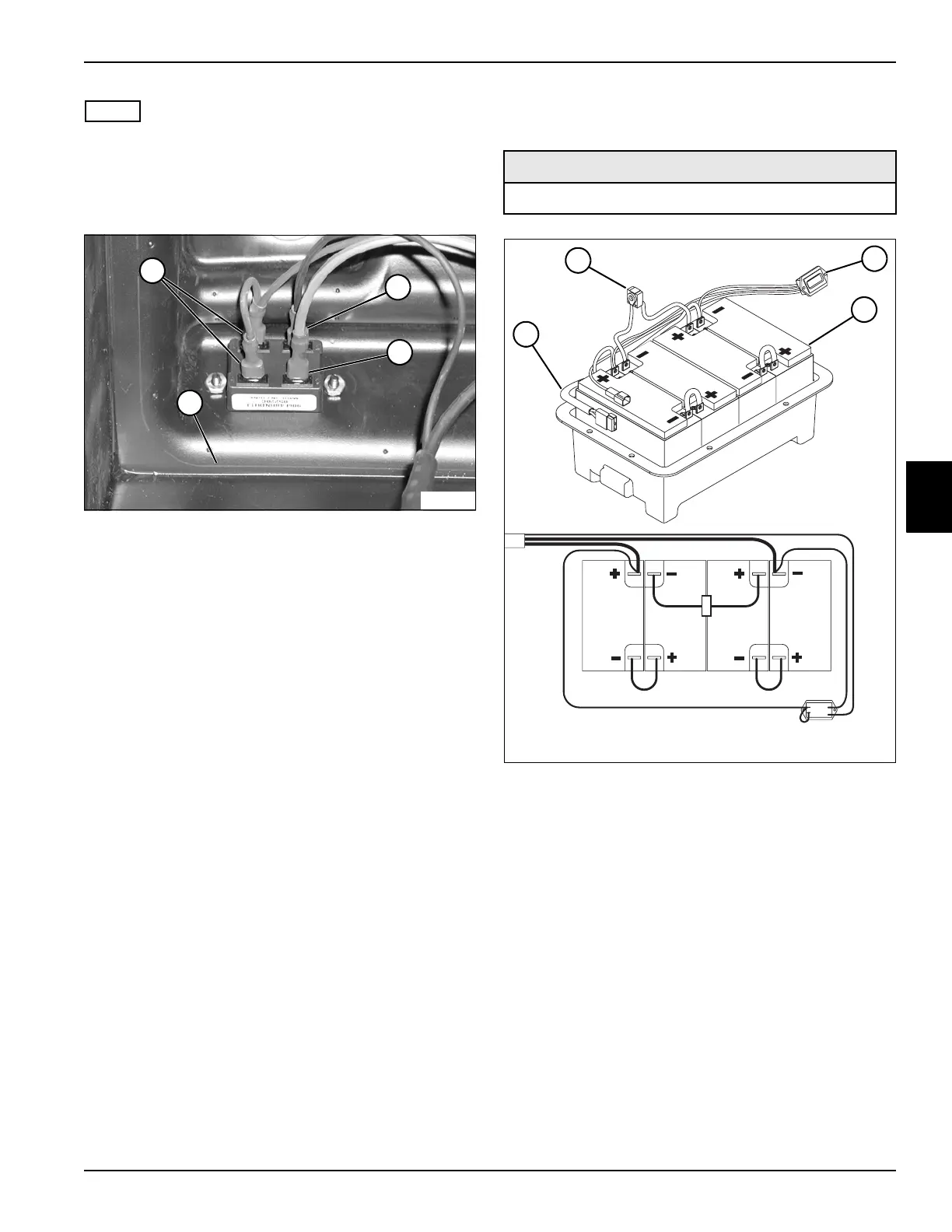

Figure 4-41: Battery Pack Wiring Diagram
Assembly Notes
• Connect wire leads as noted during removal.
• Apply dielectric grease (Jacobsen PN 365422) to any
connectors removed.
• Assemble the battery pack by reversing the order of
removal.
TN0675
6
7
8
9
~
Required Materials
Dielectric Grease (Jacobsen PN 365422)
1 Main Harness 3 Battery Gauge
2 Fuse 4 Battery (4)
TN0846
1
4
2
3
1
2
3
4
