10-14 4262930-Rev A
ACCESSORIES
10
4. Remove short spacer (3) from roller shaft (2).

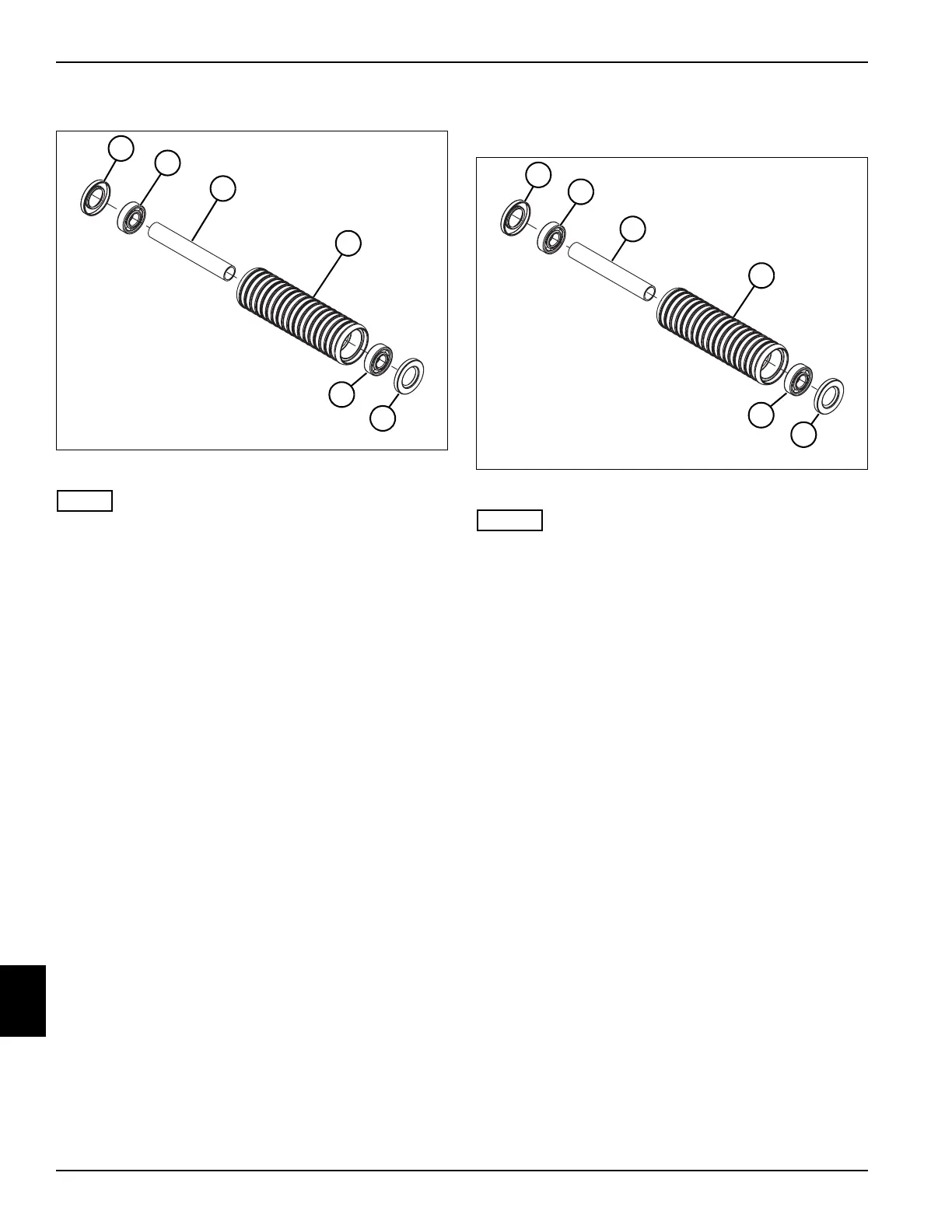

Figure 10-22
NOTE
All three roller segment assemblies are disassembled in
the same way.
5. Remove grease seals (11 and 15), ball bearings
(12 and 16), and spacer (13) from the roller segment
(14).
Assembly—Grooved Segmented Roller
See Figures 10-23 and 10-24.
Figure 10-23
NOTES
• All three roller segment assemblies are assembled in
the same way.
• Always use new grease seals for installation.
1. Install a ball bearing (2) and a new grease seal (1) in
one end of the roller segment (4).
2. Apply grease that meets or exceeds NLGI Grade 2
LB specifications to the inside of the spacer (3), and
install the spacer (3) into the roller segment (4).
3. Install a ball bearing (6) and grease seal (5) in the
other end of the roller segment (4).
4. Apply grease that meets or exceeds NLGI Grade 2
LB specifications to the lips of the grease seals
(1 and 5).
TN0252
11
TN0252
13
14
16
15
12
TN0252
1
TN0252
3
4
6
5
2
