ENGINE COVER
INSTALLATION

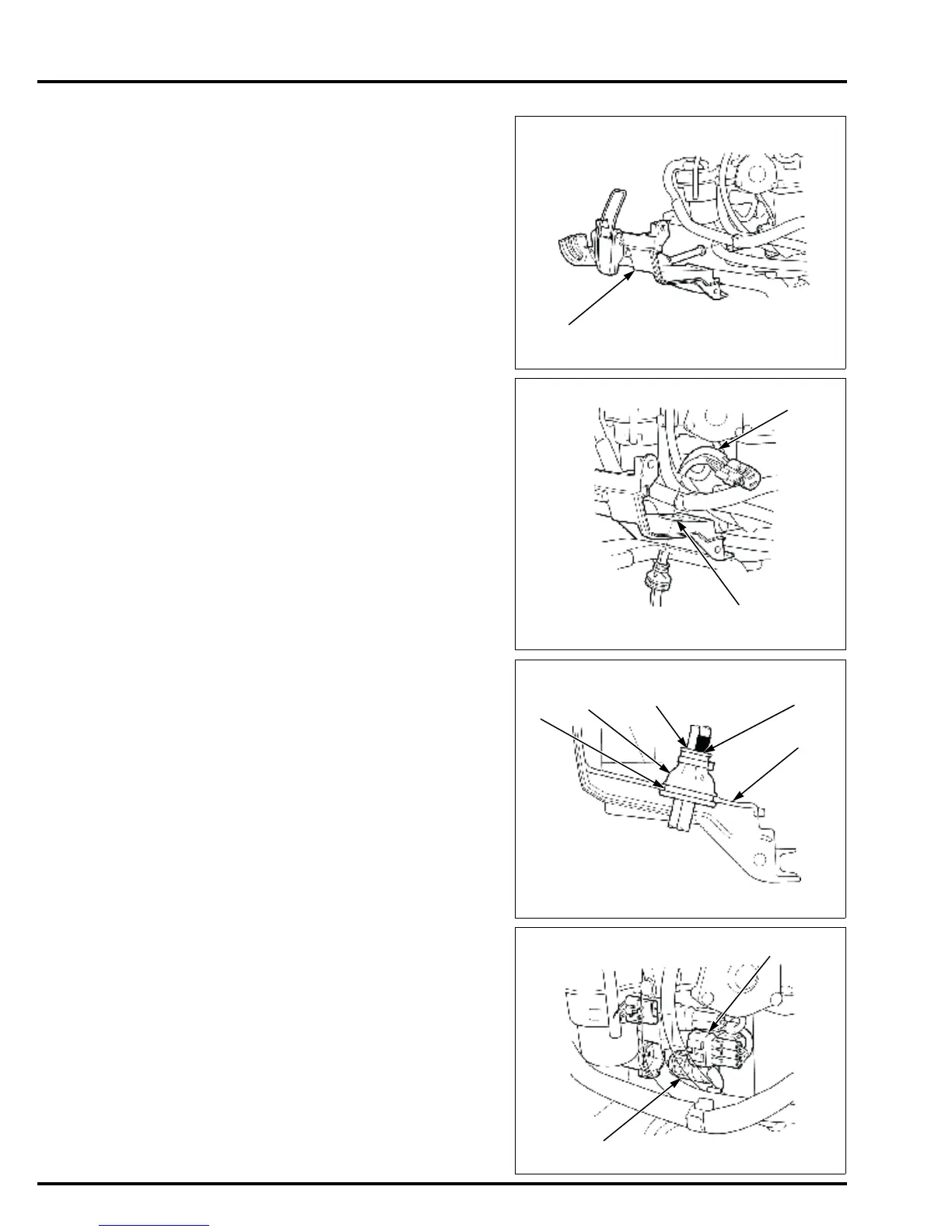

Set the under cover front bracket [1] on the outboard
motor.
Pass the wires [1] through the hole [2] in the under
cover front bracket.
Check that the end of the taped parts [1] of the power
tilt motor wire align with the end of under case grommet
C [2], and install under case grommet C [3] on the
under cover front bracket [4].
Be sure that the under cover front bracket sits securely
in the groove [5] of under case grommet C.
Connect the trim angle sensor 3P connector [1] and
power tilt motor 2P connector [2].
