13-11
dummyheaddummyhead

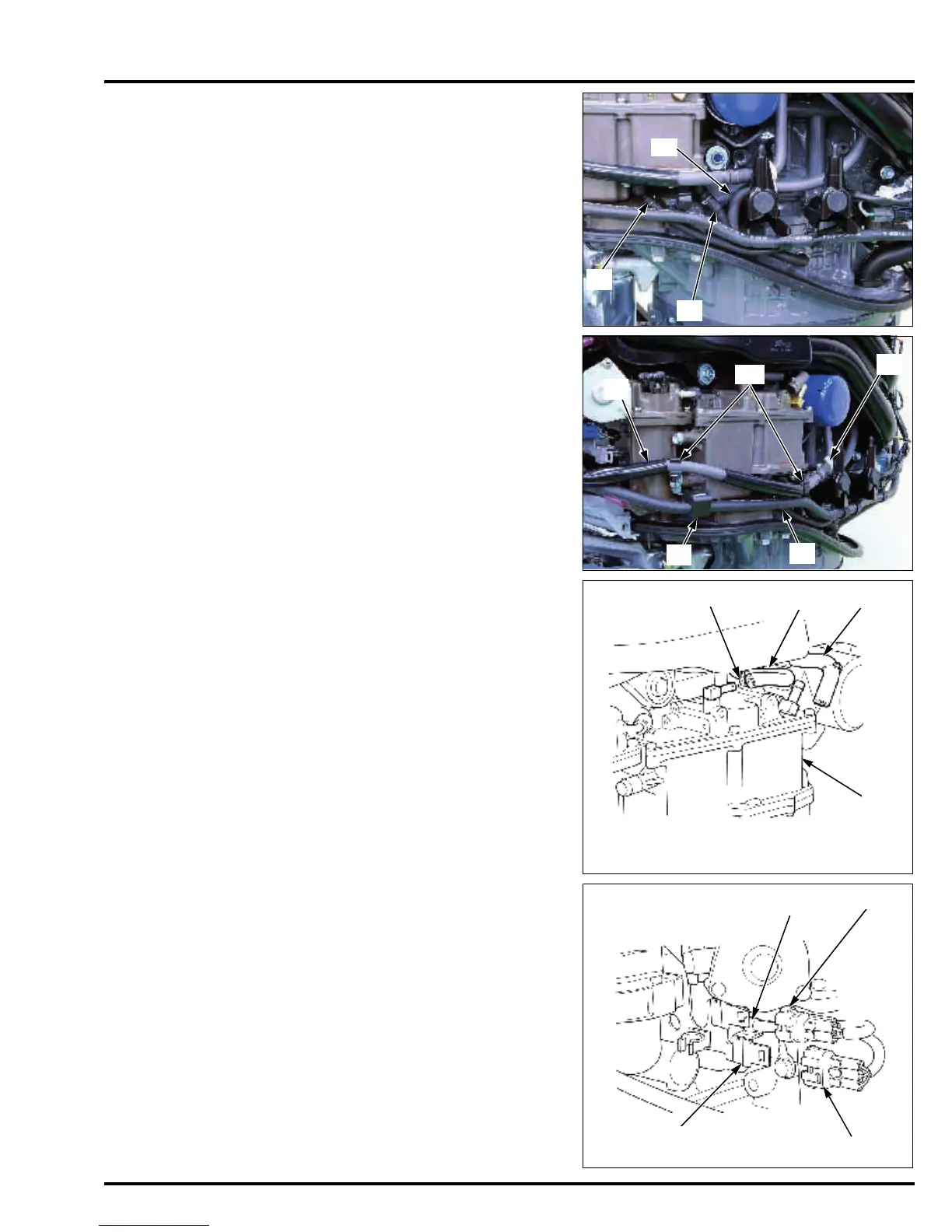

ENGINE REMOVAL/INSTALLATION
Connect air vent tube C [1] to the mount case joint.
Connect water tube A [2] and water tube B [3] to the
vapor separator.
Set fuel tube B [1] to the fuel tube clamp Bs [2] by
attaching the ends of the protector tubes to the fuel tube
clamp Bs.
Set the fuel hose [3] to the hose grommet [4].
Set fuel hose C to the tube clamp [5].
Connect air vent tube A [1] and fuel tube D [2] to the
vapor separator [3].
Set air vent tube A on the clamp [4] of the vapor
separator.
Set the harness band clip on the relay bracket [2].
Set the water level sensor 2P connector [2] and trim
angle sensor 3P connector [3] to the relay bracket [4].
[1]
[3]
[2]
[2]
[1]
[4]
[3]
[5]
[3]
[2]
[1]
[4]
[2]
[1]
[4]
[3]
