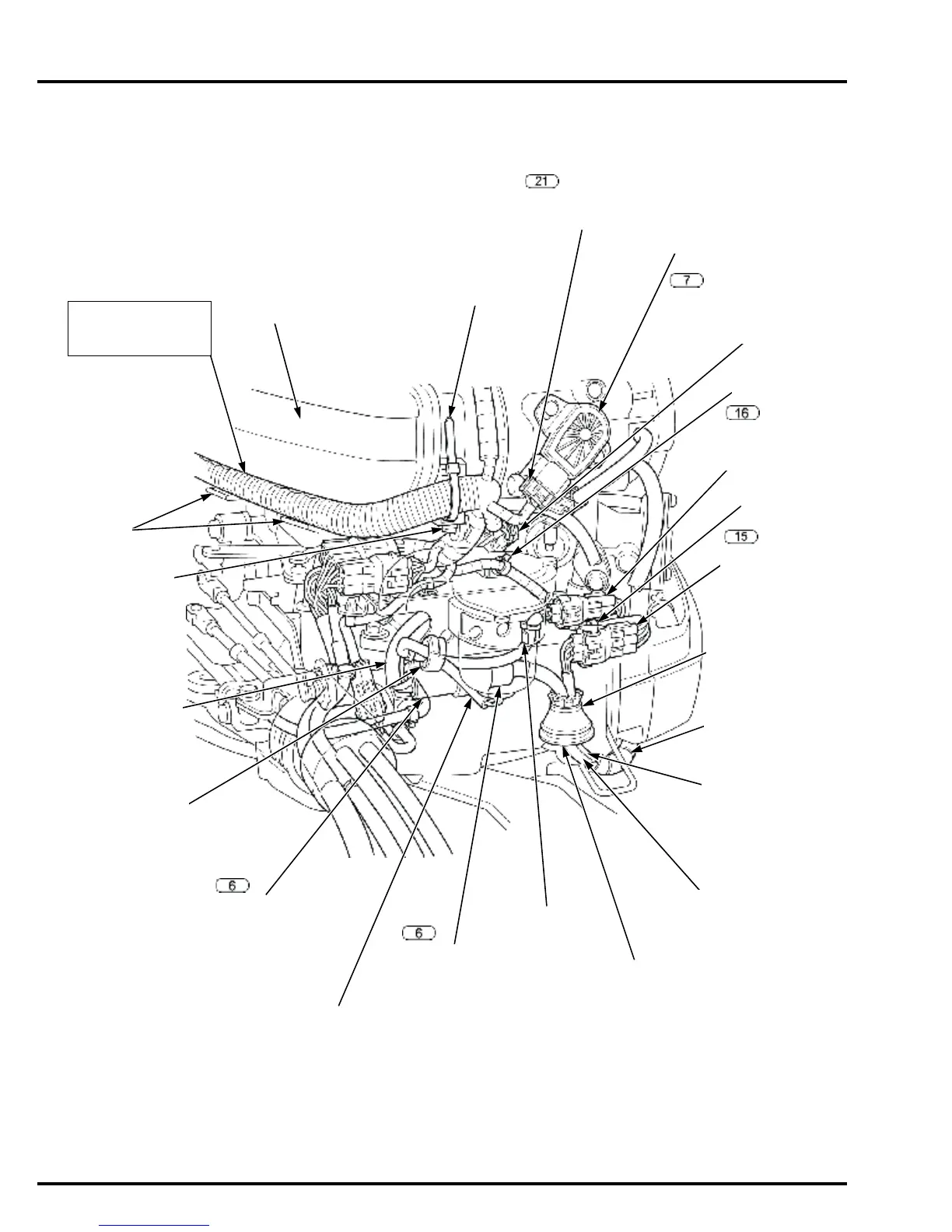

SERVICE INFORMATION
Set into the clamps of
the silencer case
properly.
MAIN HARNESS
WATER LEVEL
SENSOR 2P
CONNECTOR
SPIRAL TUBE
(12 X 14.6 mm)
UNDER COVER
GROMMET C
CLIP C
WATER LEVEL
SENSOR WIRE
POWER TILT RELAY
2P CONNECTOR
POWER TILT RELAY
2P CONNECTOR
WIRE
POWER TILT MOTOR
2P CONNECTOR
SILENCER CASE
HARNESS BAND
TP SENSOR 3P
CONNECTOR
TP SENSOR
POWER TILT RELAY 3P
CONNECTOR
HARNESS
BAND CLIP
POWER TILT
MOTOR WIRE
HARNESS
BAND CLIP
HARNESS
BAND CLIP
CLAMPS
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
TRIM ANGLE
SENSOR WIRE
TIE-WRAP BAND
(Except LHGX type)
(Except LHGX type)
TRIM ANGLE
SENSOR 3P
CONNECTOR
(Except LHGX
type)
(Except LHGX type)
HARNESS
BAND CLIP
(Except LHGX type)
(Except LHGX type)
