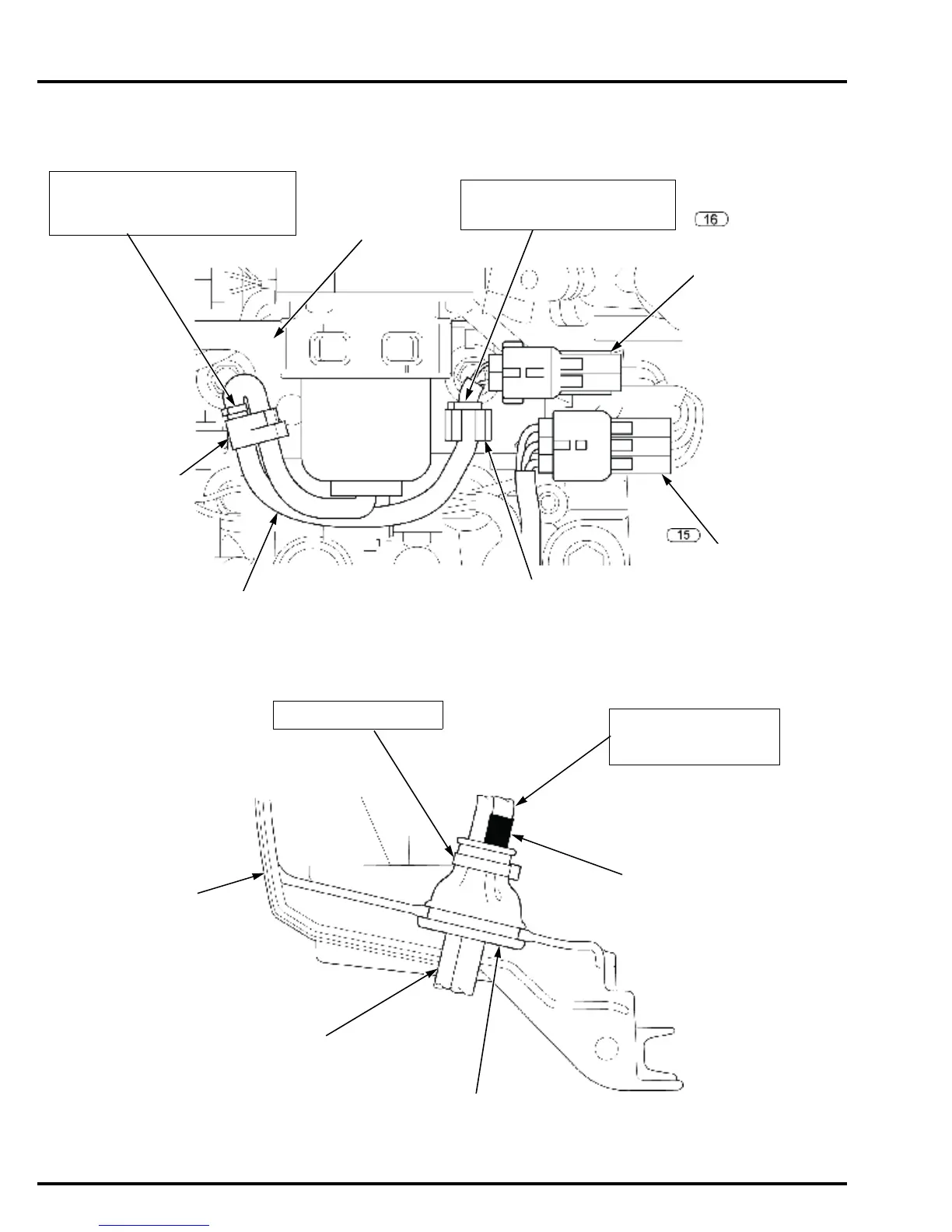

RELAY
BRACKET
TAPE
Align the lower end of the
tape with the upper end of
grommet C
POWER TILT MOTOR WIRE
Cut the band end.
TIE-WRAP BAND
Set the water level sensor wire so
the locating band is above clip C.
Set the water level sensor wire so the
locating band is above the harness clip
as shown.
LOCATING BAND
UNDER COVER
FRONT BRACKET
TRIM ANGLE
SENSOR WIRE
UNDER COVER
GROMMET C
CLIP C
WATER LEVEL
SENSOR WIRE
LOCATING BAND
WATER LEVEL
SENSOR 2P
CONNECTOR
TRIM ANGLE SENSOR
3P CONNECTOR
HARNESS CLIP
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
To Next Page
