SERVICE INFORMATION

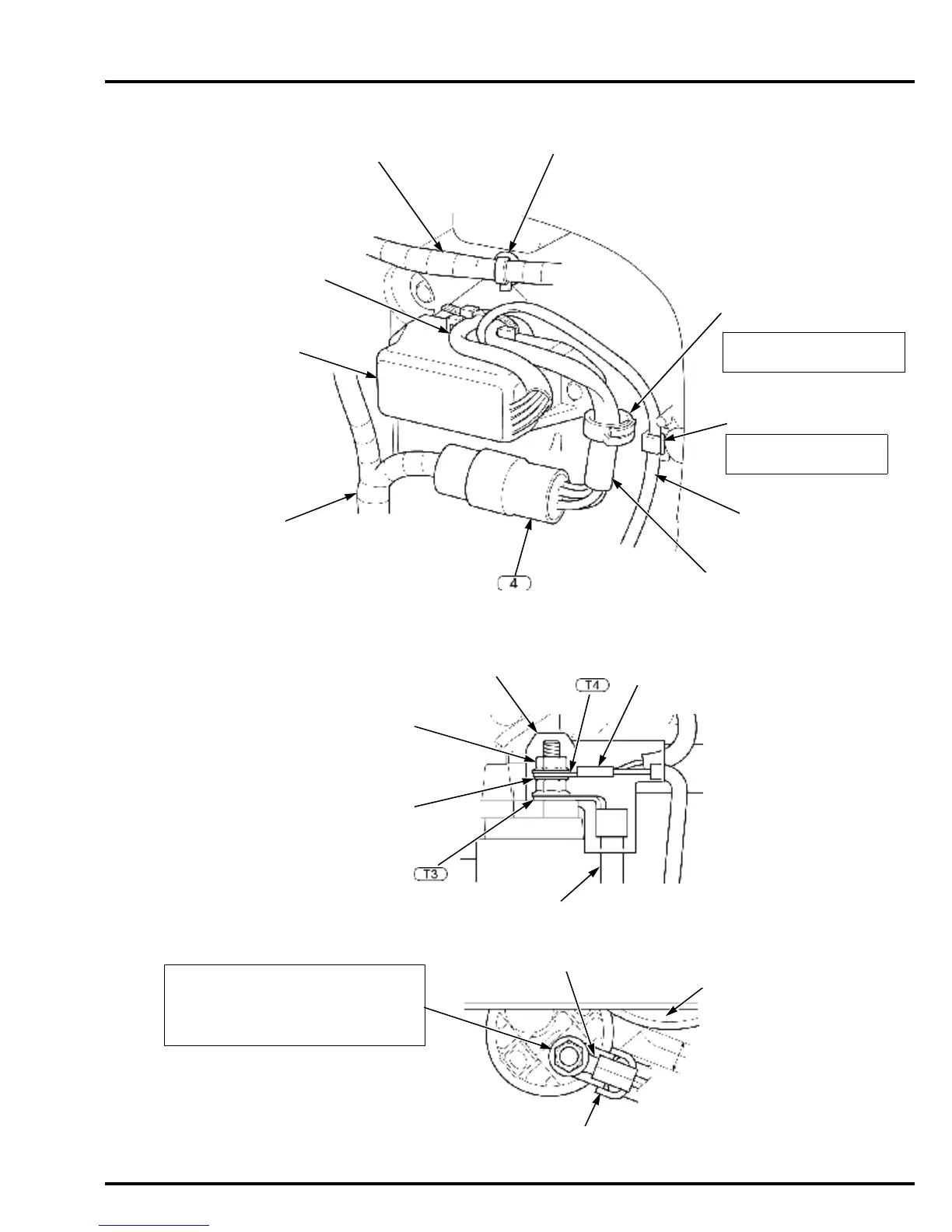

Clamp the PGM-FI/main
relay 5P connector wire.
Clamp the PGM-FI/main
relay white wire.
PGM-FI/MAIN RELAY 5P
CONNECTOR WIRE
10 – 20 mm
(0.4 – 0.8 in)
Tighten so that the distance between the
starter cable and starter motor is 10 – 20
mm (0.4 – 0.8 in). Also, set the fuse cable
parallel to the starter cable.
TERMINAL COVER
NUT (8 mm) (2)
WASHER (8 mm)
HARNESS
BAND CLIP
PGM-FI/MAIN RELAY
WHITE WIRE
GROUND
CABLE
WIRE HARNESS CLIP
CLAMP
PGM-FI/MAIN RELAY
5P CONNECTOR
FUSE CABLE
PGM-FI/MAIN
RELAY
FUSE CABLE
NUT (8 mm)
STARTER CABLE (+)
FUSE CABLE
STARTER MOTOR
STARTER CABLE (+)
PGM-FI/MAIN RELAY
6P CONNECTOR WIRE
