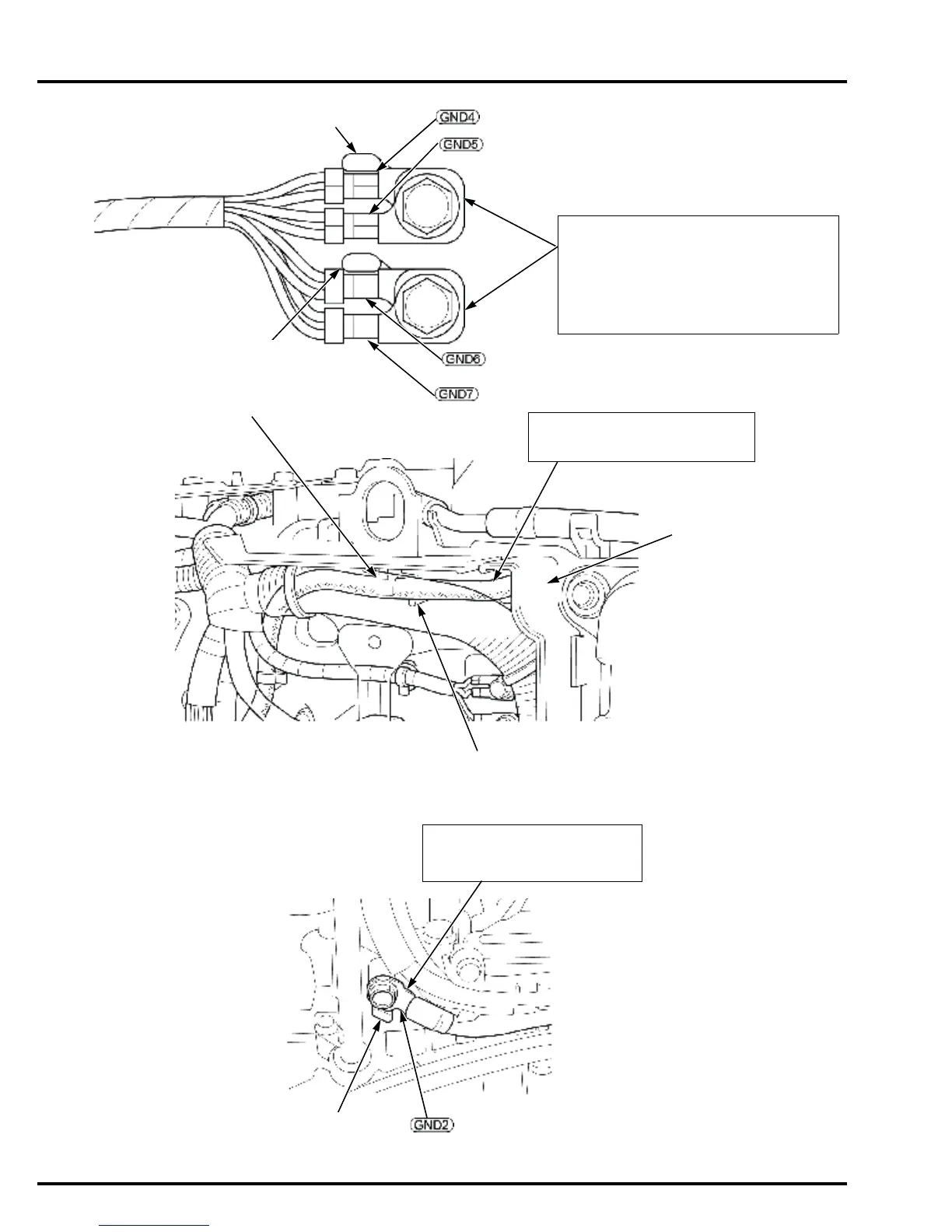

LUG
LUG
CLAMP
ELECTRONIC
PARTS CASE
LUG
LUG
Tighten the bolt while pushing the
cable terminal against the lug of
the cylinder block.
STARTER CABLE (–)
Set into the clamp and above the
lug of the electronic parts case.
STATOR HARNESS
• Install with the Black and Blue terminal
onto the upper side, and the Black
terminals onto the lower side.
• Tighten the bolt while pushing the ground
terminal against the lug on the cylinder
block.
GROUND CABLE
To Next Page
